Pfaff PicoDrive P40PD User Manual

Function of the T11 key for choosing modes
-T11 (PM)unlit,manual sewing
-T11 (PM)lit, programmed sewing
Function of the PM key in "Manual sewing" mode (Fig. 7.15)
T11 key (PM) unlit, T10 key (TE) lit.
- A+ / A- Set stitch number A front backtack forward
- B+ / B- Set stitch number B front backtack backward
- C+ / C- Set stitch number C end backtack backward
- D+ / D- Set stitch number D end backtack forward
Function of the programming key in "Programmed sewing" mode
T11 key (PM) lit, T10 key (TE) lit.

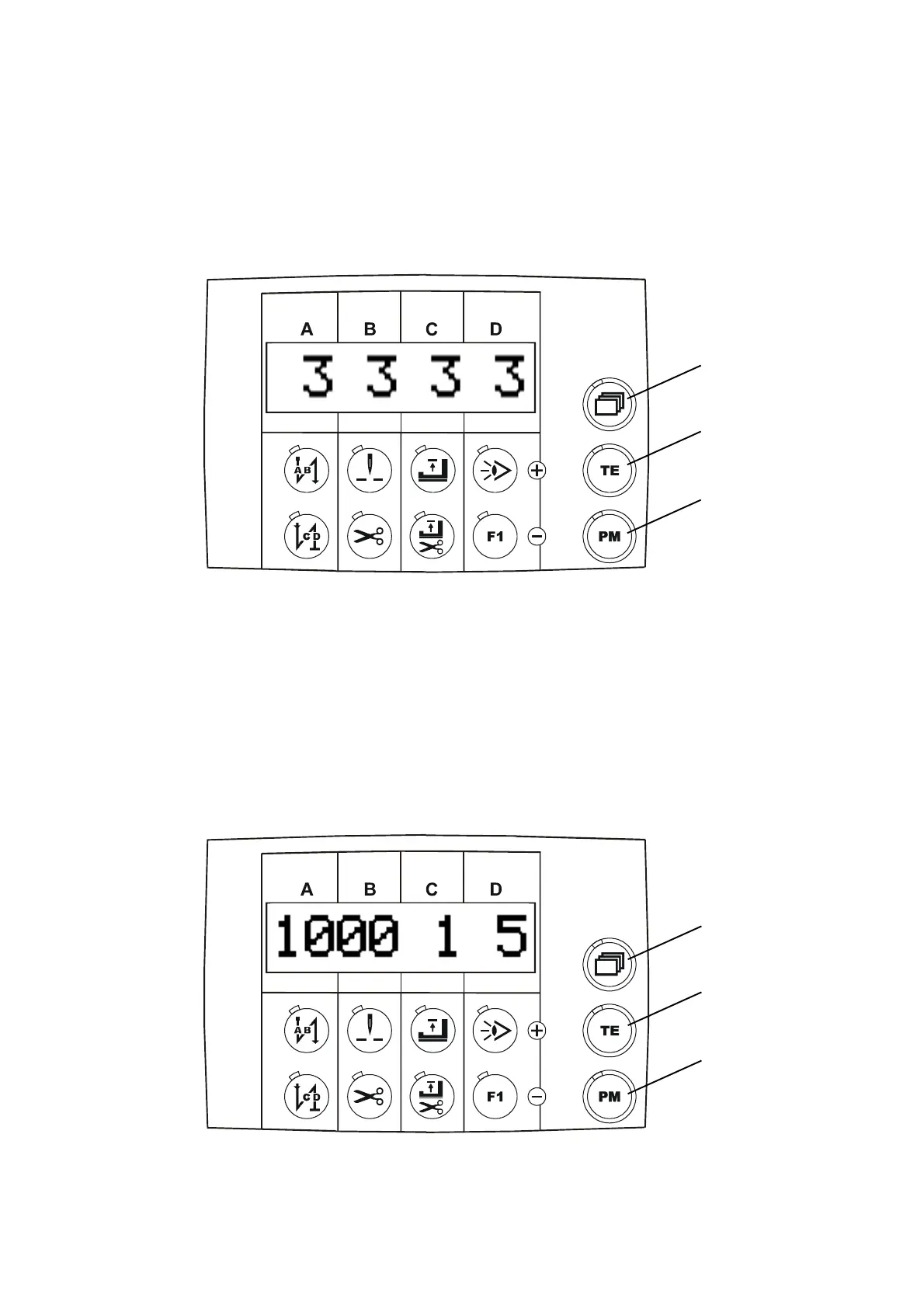

Setting for T9 key (paging) is on mode 2 (Fig. 7.16): used to select
the speed of the sewing program, program number and seam section:
p4xpd-2-en 7.5 08-08-29
Fig. 7.16
- A+ / A- Set speed nx in program x
- B+ / B- Set speed nx in program x
- C+ / C- Select program number or the subsequent program
- D+ / D- Set for the number of seam sections
Paging key
TE key
(Enter mode)
PM key
(Program mode)
Paging key
TE key
(Enter mode)
PM key
(Program mode)
