13 Technical data and dimensions
13.1 Technical data
Selection field TCP 350, drive electronics
Part number PM C01 740
Input voltage(s) 115 / 230 V AC (-20/+15 %), 50/60 Hz
Input voltage 50 Hz 115 / 230 V
Input voltage 60 Hz 115 / 230 V
Input voltage: tolerance -20/+15 %
Input voltage: frequencies 50/60 Hz
Power consumption max. 420 VA
Overvoltage category Category II
Output voltage 0 – 72 V
Output current 6.5 A
I/O interfaces RS-485
Cable length Turbo-TCP max. 110 m
Protection degree IP20
Ambient temperature 5 – 40 °C
Weight 2.8 kg
Tbl. 34: TCP 350
13.2 Dimension drawings
All dimensions in mm
142 (28TE)
128.5 (3HE)
111
122.5
127
232.4
242.4

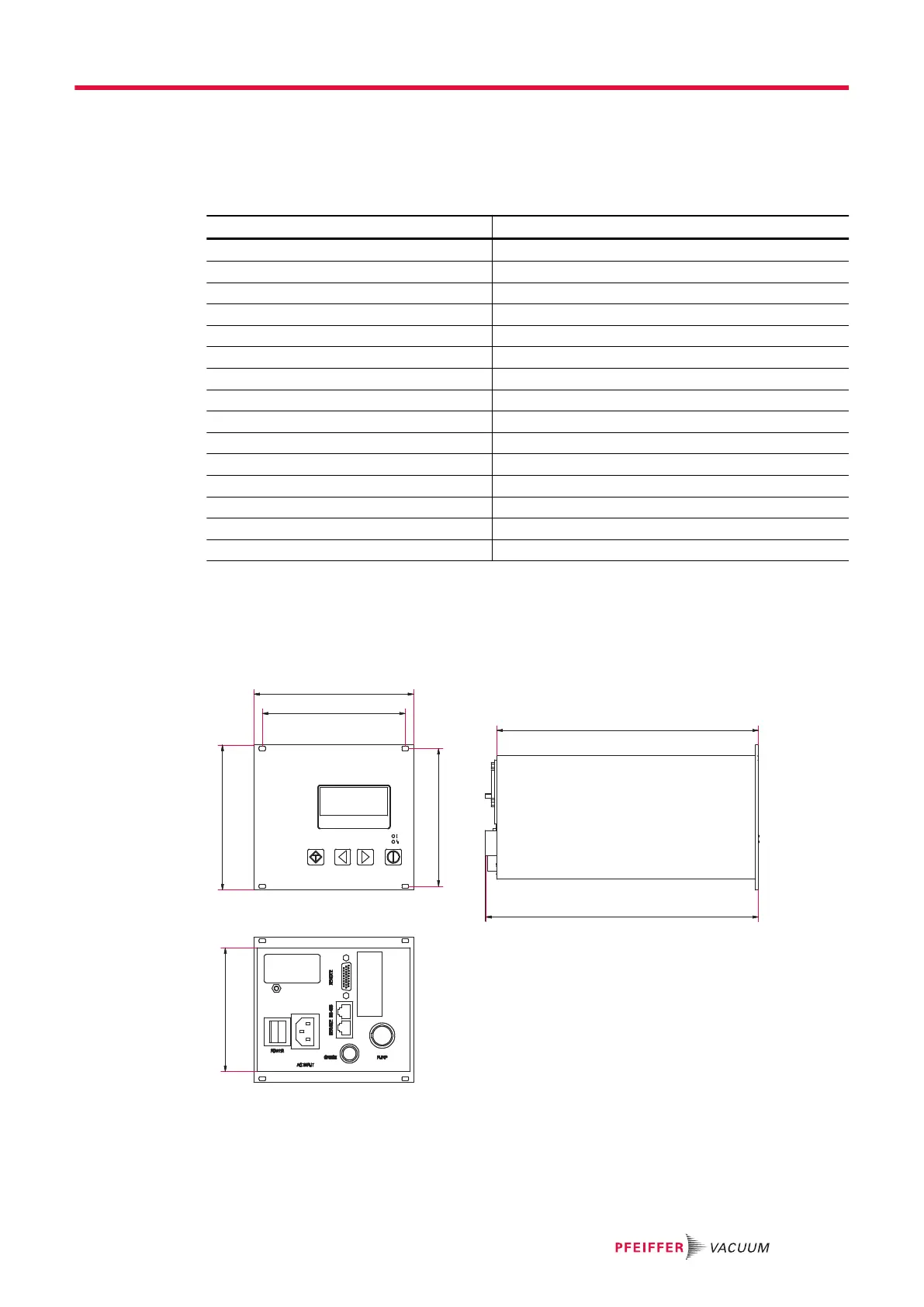

Fig. 13: Dimensions TCP 350
