1.3.2 Pictographs
Pictographs used in the document indicate useful information.
Note
Tip
1.3.3 Stickers on the product
This section describes all the stickers on the product along with their meanings.
Mod.:
Mod--Nr.:
TCP 350
PM C01 740
Ser. Nr.:
115/230 V -20/+15% 50/60 Hz
0 -72 V / 6.5 A 420 VA
Made in Germany 2021/04
Input:
Output:
Mass: 2.8 kg
Rating plate (example)
Rating plates of the devices are affixed to the housing where they
can be clearly seen
C
US
Safety approved
USA CAN
TÜV Rheinland
Test seal:
The test seal provides information regarding additional certifica-
tions
Tbl. 1: Stickers on the product

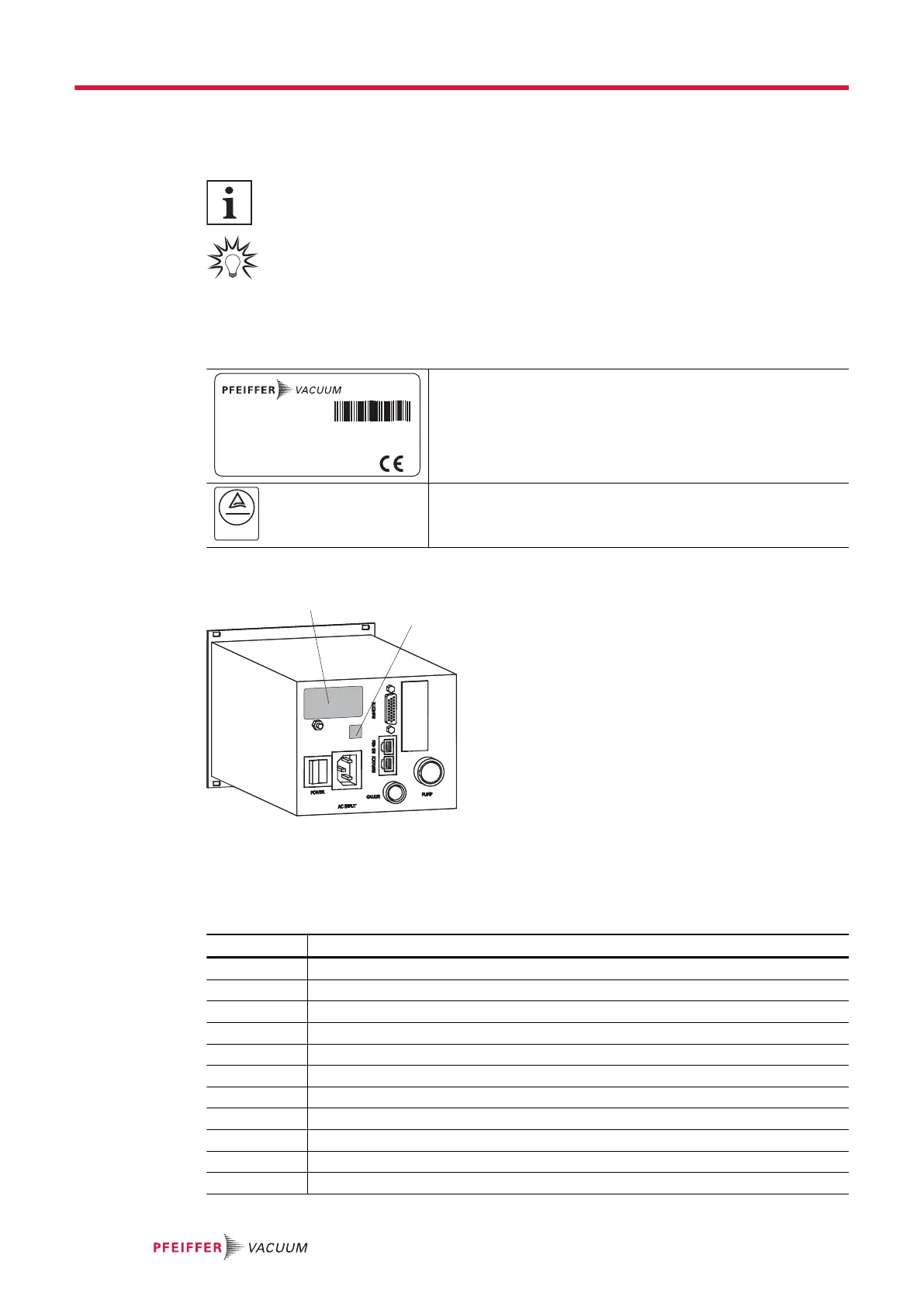

Fig. 1: Position of the stickers on the product
1 Rating plate 2 Test seal
1.3.4 Abbreviations
Abbreviation Meaning in this document
AC Alternating Current voltage
APR Piezo transmitter
CMR Capacitive transmitter CMR
DC Direct Current voltage
DCU Display Control Unit
f Rotation speed value of a vacuum pump (frequency, in rpm or Hz)
LC Liquid crystal
LED Light emitting diode
MPT Pirani/Cold cathode transmitter
PCR Pirani/Capacitive transmitter
PKR Pirani/Cold cathode transmitter
About this manual
8/56
