Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01
1
45
1
45
1
160
Installation / Assembly
VIII
1
545 036 002

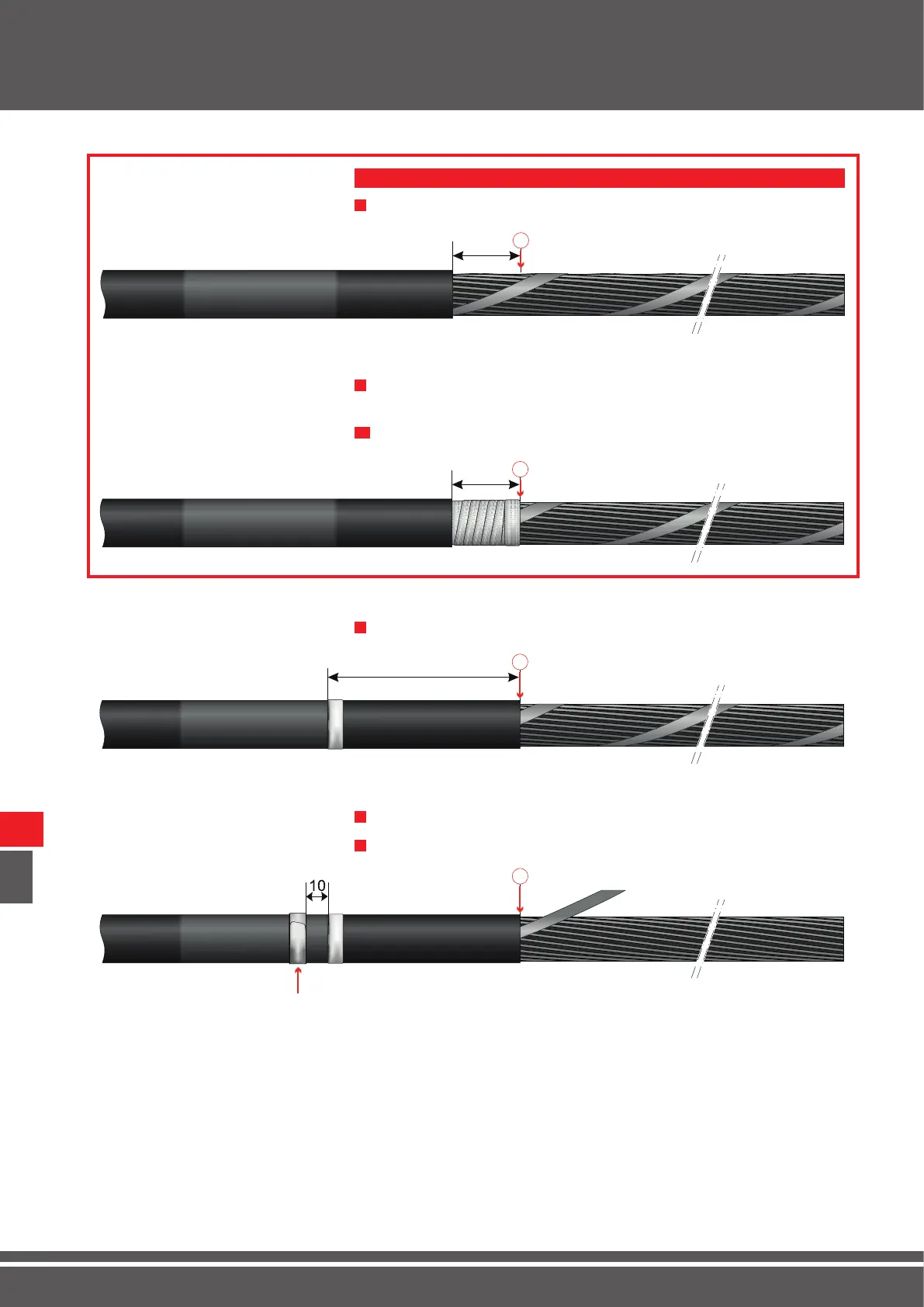

Remove outer jacket a further 45 mm behind the "jacket cut" (1).
7 1
Only for cables with outer diameter > 58 mm
Apply woven insulating tape from the outer jacket for 40 mm to the
"jacket cut" (1) with a 50 % overlap.
8 1
At the "jacket cut" (1), apply 2 – 3 more layers one on top of the other.
9 1
Apply the control mark 160 mm from the "jacket cut" (1).
10 1
Apply one layer of sealing tape 10 mm behind the control mark.
11 1
12 1
Remove balancing tape at the "jacket cut" (1).
