32 www.psterer.com
Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01
545 036 002
Installation / Assembly
VIII

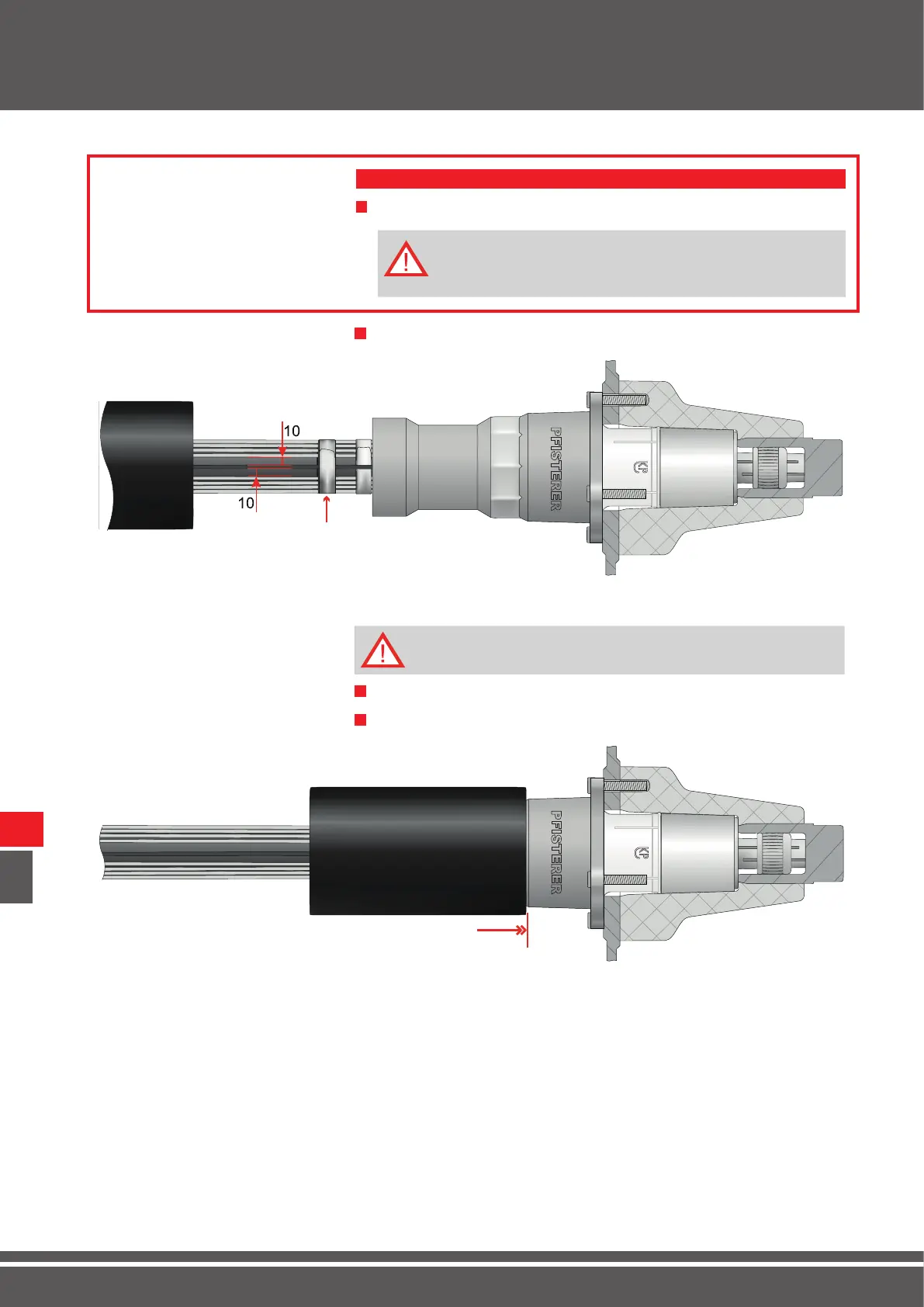

Only with capacitive voltage tap
Fix test lead with adhesive tape.
29 1
The test lead of the voltage tap may not cross over the screen
wires and must run at a min. distance of 10 mm parallel to the
screen wires.
Apply a further layer of sealing tape directly on top of the rst layer.
30 1
In oshore / ground applications, the screen wires must be pro-
tected. See Chapter 8.7, Page 35.
Clean the outside of the bell ange.
31 1
Fix the heat-shrink tubing over bell ange on the ribbing.
32 1
