Pfisterer MV-CONNEX 3 - Page 31

www.psterer.com 31
Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01

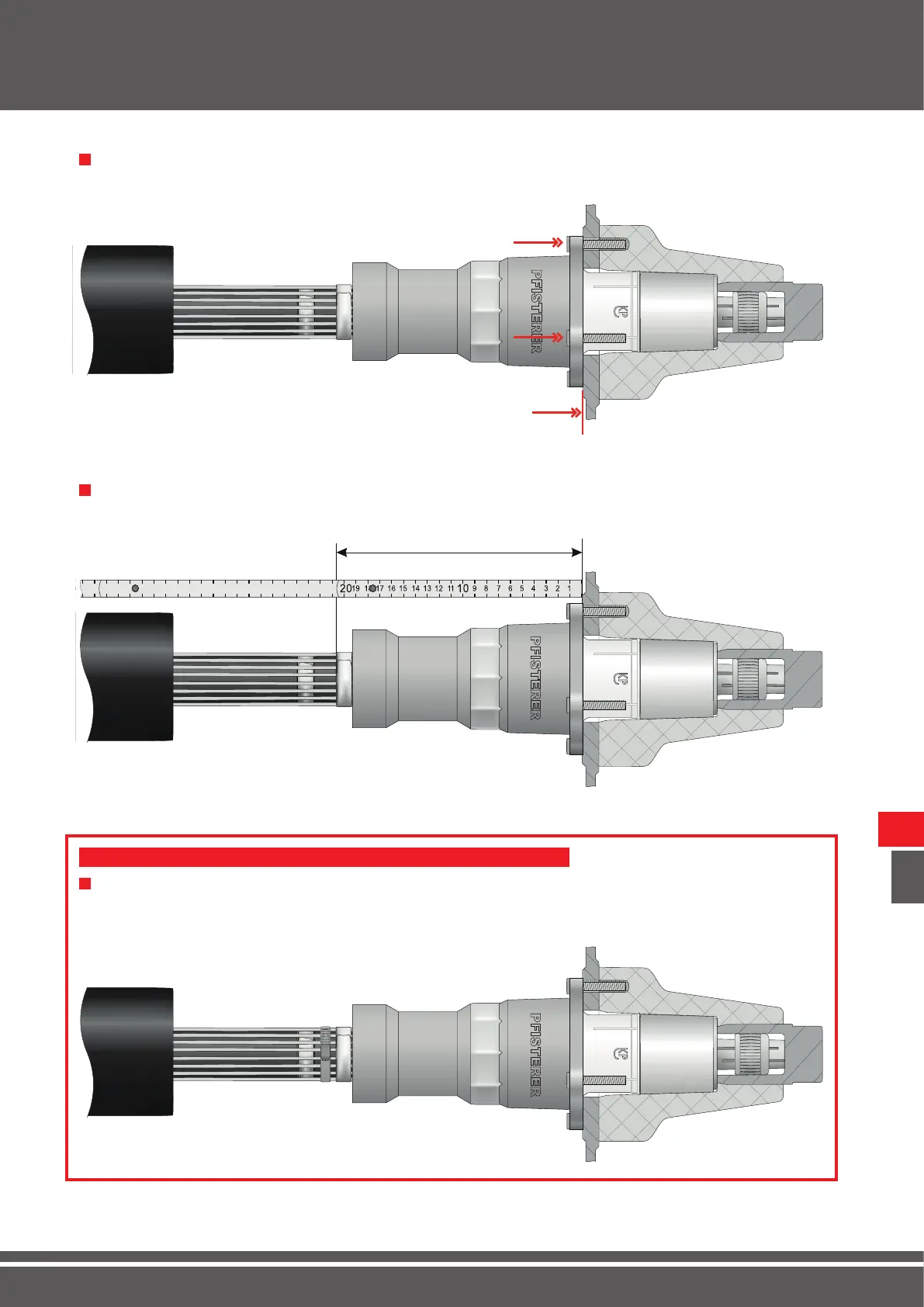

Tighten the screws all round with the SW6 T-handle screwdriver (tor-
que 15 Nm).
26 1
21224142
25
212223242526272829313233343536373839
3040
207
VIII
Installation / Assembly
Using the ruler, check the position of the control dimension 207 mm.
If not acheived press the cable again. Do not remove the check mark!
27 1
Only with superexible cable
For better adhesion of the heat-shrink tube, introduce a hose clamp bet-
ween the sealing tape and the check mark on the outer jacket.
28 1
