Drawings not to scale - for information only Size 3 | 3-S / Standard instructions wire screen / No. 040 371 001 (2014-05-08) i-01
For installation outdoors vertically from above (for transformer
applications), an extra set of seals must be used.
Note additional steps (see chapter 8.6, page 34).

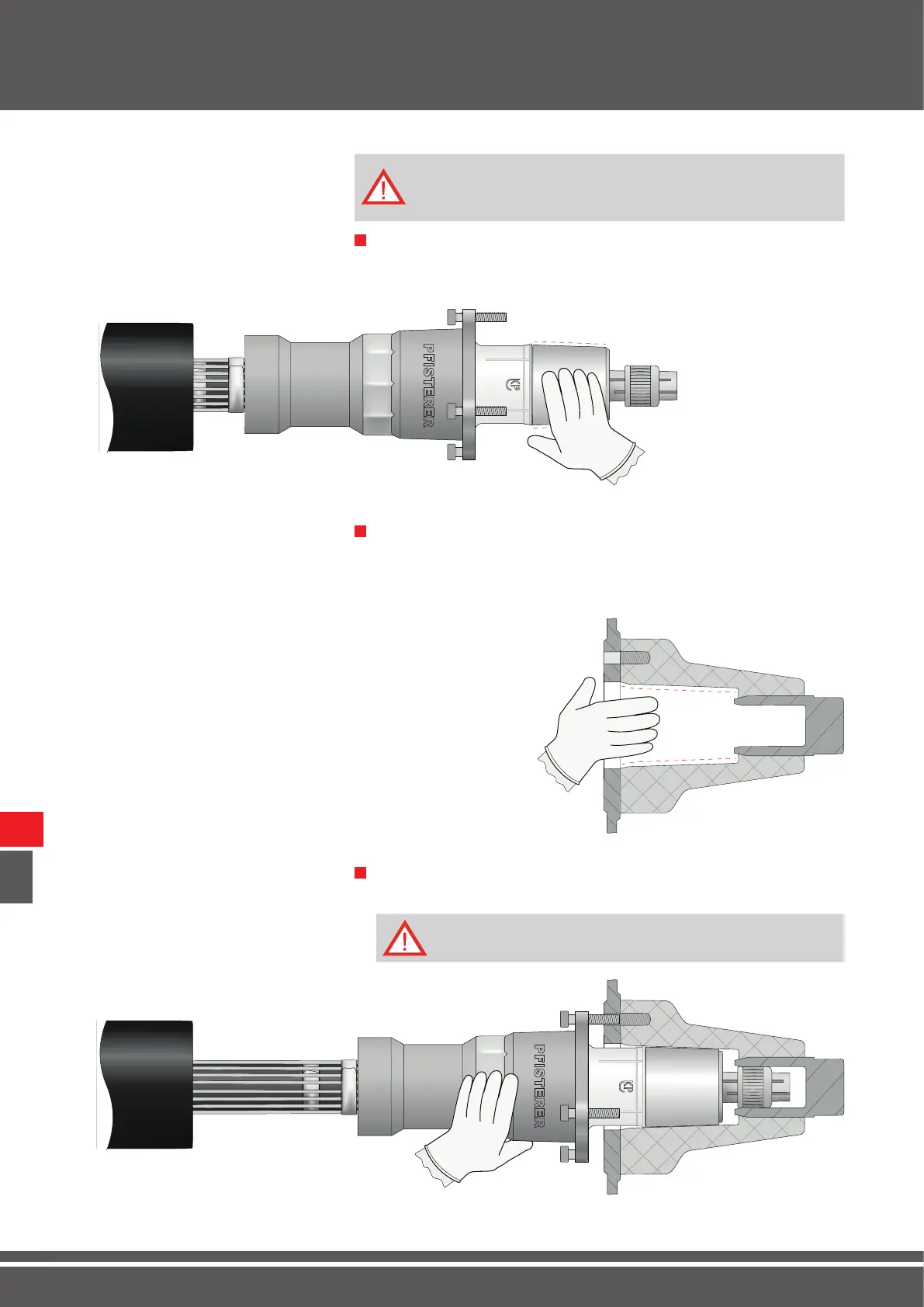

Clean the surface of the insulating part (recommended cleaning agents:
benzene, acetone) and grease thinly and evenly with PFISTERER MV-spe-
cial grease. Wear clean protective gloves (e.g. latex or plastic).
23 1
Clean the surface of the socket (recommended cleaning agents: ben-
zene, acetone) and grease thinly and evenly with PFISTERER MV-special
grease. Wear clean protective gloves (e.g. latex or plastic).
Do not apply grease to the contact area!
24 1
Introduce the CONNEX separable connector into socket and tighten the
screws.
25 1
The bell ange must be held with pressure on the insulating
part until the screws grip.
Installation / Assembly
VIII
