USING THE KEYPAD & DISPLAY
SD & 2XD Series drives are capable of many advanced, easy-to-use features that allow the user to
protect the motor load from damage, monitor load conditions, log motor run time, troubleshoot the
system and more. The keypad is easy to use and understand, with 32 character text messages and an
intuitive interface specifically tailored for pumping applications.

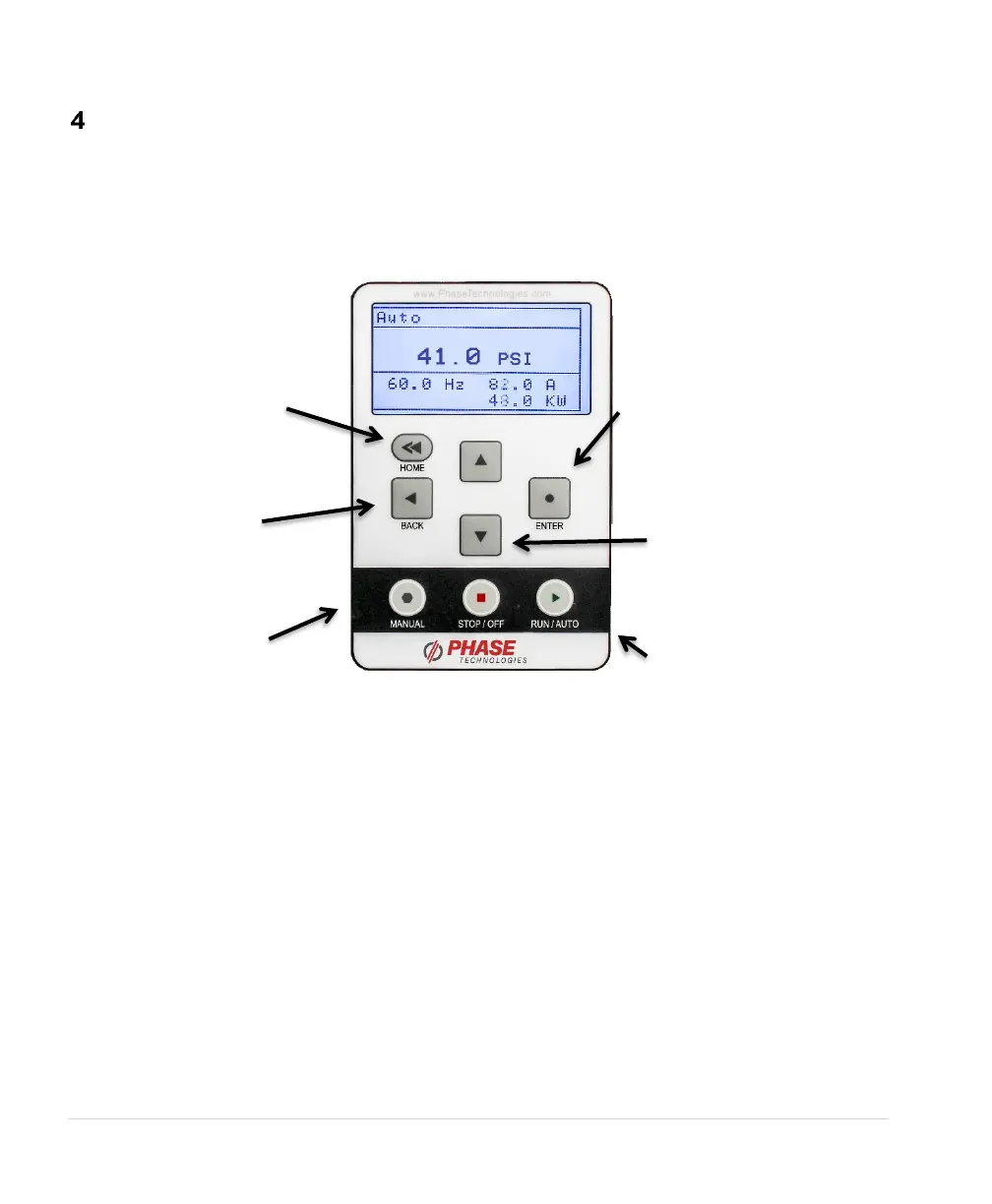

Figure 21 – Keypad and Text Display
4.1 Display Modes
After two minutes of keypad inactivity, the display will revert to the default display mode. Information on
the display will vary based on the operating mode of the drive. When operating in AUTO mode with the
factory default SYSTEM CONFIG = 0, the display will indicate output kilowatts (kW), output amps (A),
output frequency (Hz) and the status of the AUX1 and AUX2 inputs.
4.2 Password Protecting the Keypad
The keypad can be set up with a password to prevent unauthorized changes in adjustable parameters.
The parameter PASSWORD SETUP (Table 16) is used to protect the keypad. When this parameter
has a value of zero the keypad is not protected. To password protect the keypad, enter a password
consisting of a number between 1 and 99 as the parameter value. Contact customer service at 605-
343-7934 if you lose or forget the password.
