4.7 Read Timers
The timer function records the motor run time and the time the drive has been energized. There are two
timers for each function, one which can be reset, and one permanent. To view and reset the timers:
1. Press the MENU key to scroll through menu items until READ TIMERS appears on the
display.
2. Press ENTER to enter this menu item.
3. Use the up and down arrows to scroll through the clock functions.
4. To reset the clock timers, navigate to the Main Menu item, CLEAR MEMORY, press ENTER,
and then use arrow keys to select RESET TIMERS. Press ENTER to reset the timers.

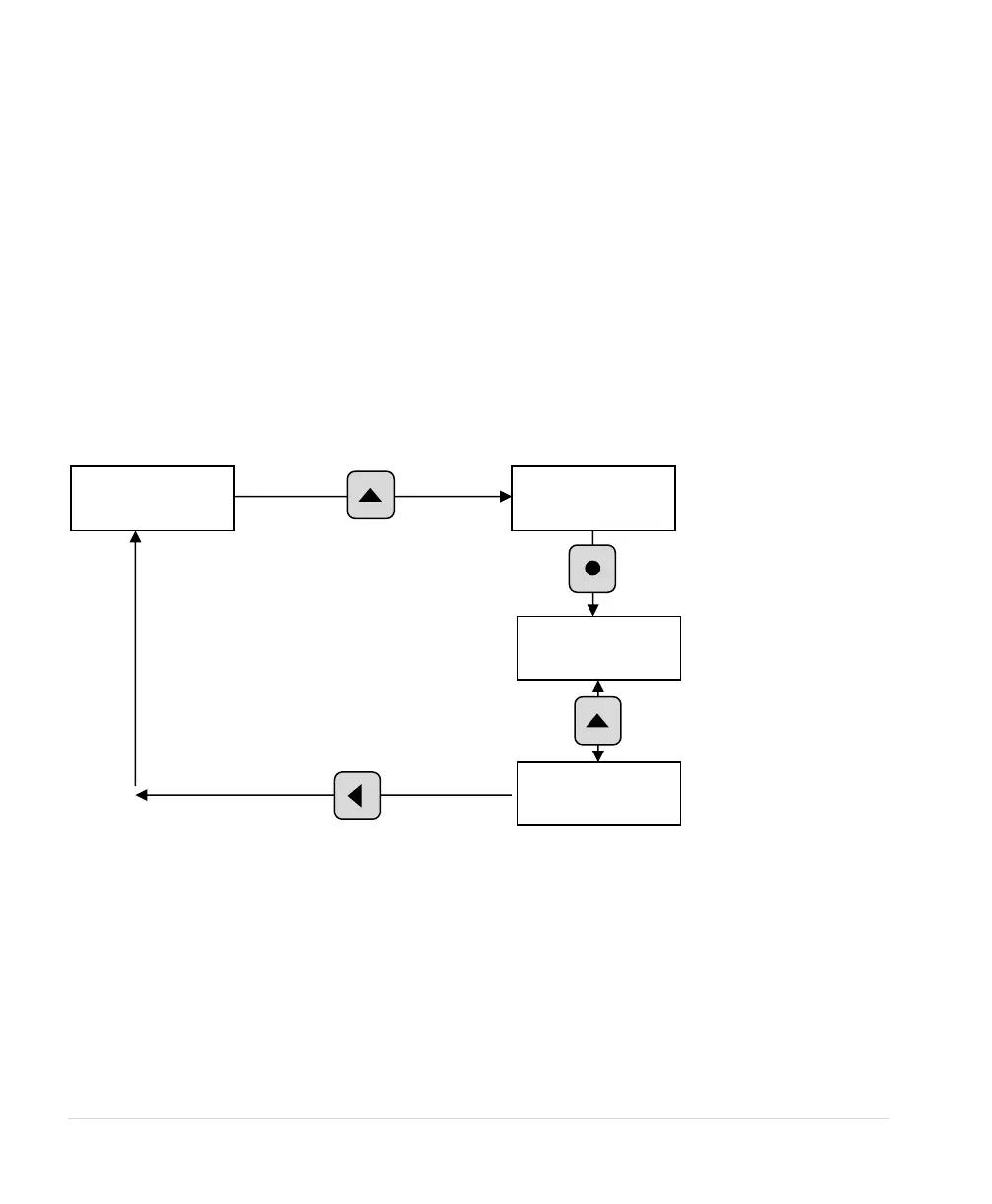

Figure 25 – Read Timers
READ MEASURED
VALUES
READ TIMERS
Press ENTER key to
read the timers
MOTOR RUN TIME
239
1LH ON TIME
480
Scroll through clock
functions with arrow
keys
Press BACK key to escape Measured
Values back to Main Menu Items
To reset the clock timers, navigate
to the Main Menu item,
CLEAR
MEMORY, use arrow keys to select
RESET TIMERS
, then press
ENTER
Press either arrow key to
scroll Main Menu items.
