4.4 Keypad Main Menu Items
The HOME key toggles between the Home screen (operating status screen) and the Main Menu items.
Use the UP and DOWN arrows to scroll through the Main Menu items. Press ENTER to view or edit a
Main Menu item. Table 10 contains a brief description of Main Menu items, followed by in-depth
instructions on the use and function of each Main Menu item.

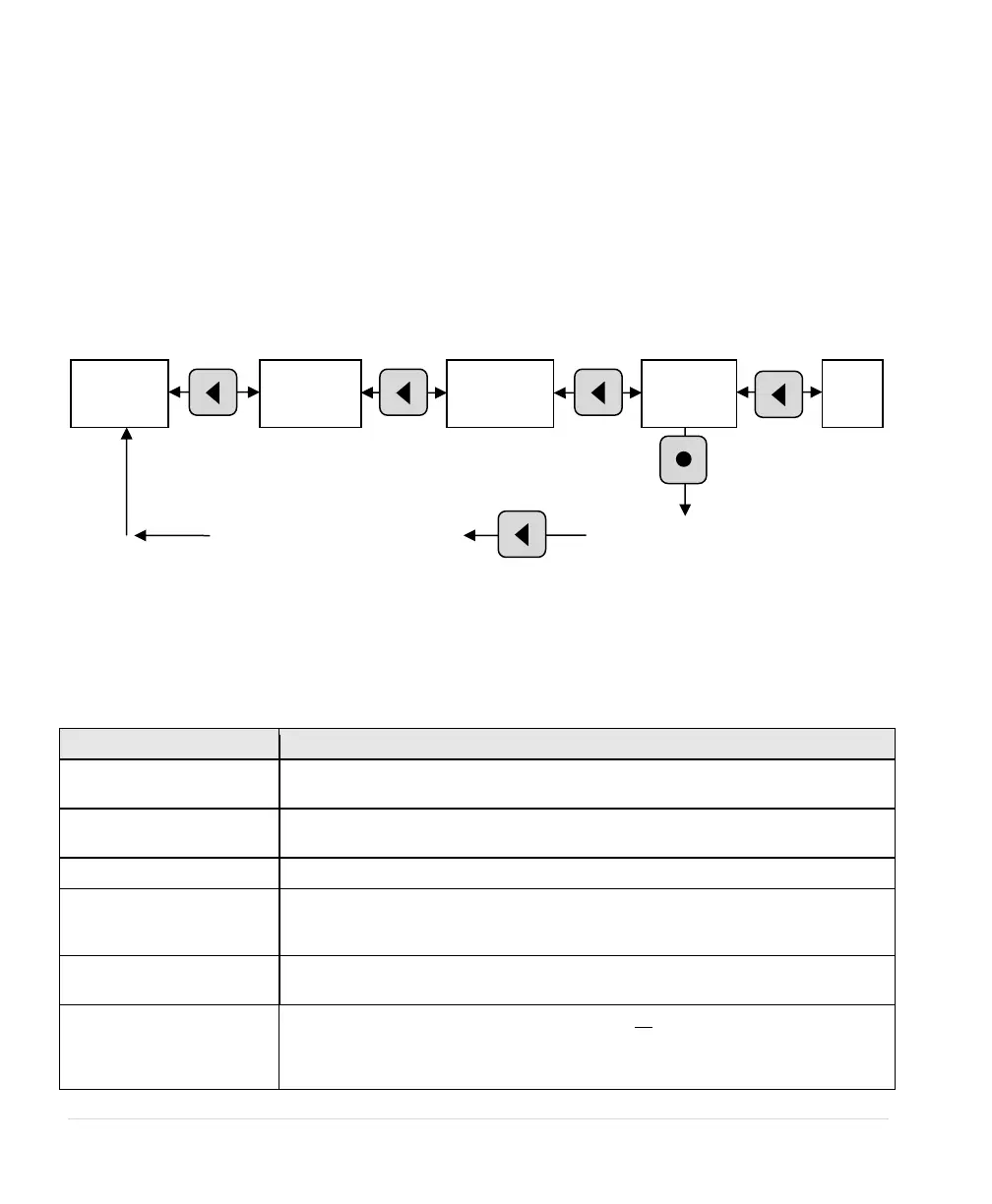

Figure 22 – Navigating Main Menu Items
Table 10 – Main Menu Items
DISPLAY MESSAGE
DESCRIPTION
CHANGE PARAMETER
VALUES
Allows the user to set values for functions such as motor overload settings, dry well
condition, time to restart after a fault, etc.
READ MEASURED
VALUES
Displays measured values such as output current, input voltage, load power factor,
etc.
READ TIMERS
Records motor run time and drive on time.
RESTART LOG
A re-settable fault log that records the number of times a particular fault has
occurred. The number of faults counted in this log can be cleared through the
CLEAR MEMORY menu.
FAULT LOG
Records the number of times a particular fault has occurred, and records the time
and date of the 20 most recent faults. FAULT LOG cannot be reset by the user.
CLEAR MEMORY
This function clears the Restart Log and Timers. All fault counters in the Restart Log
will be reset to zero. If any number of automatic restarts have been allowed through
parameters in the Auto Restart Parameters the counter on these faults will be set to
zero.
CHANGE
PARAMETER
VALUES
MANUAL
OFF AUX1
8HP 12A
READ
MEASURED
VALUES
READ/EDIT
TIMERS
FAULT
LOG
Press HOME, then use BACK key to scroll through Main
Menu items
Press ENTER key to view
or edit a Main Menu item
Press BACK key to escape
back to the Main Menu items
Note: Press the MENU key to scroll through the Main Menu items.
