Phase Technologies SD Series - Page 58

52 | P a g e

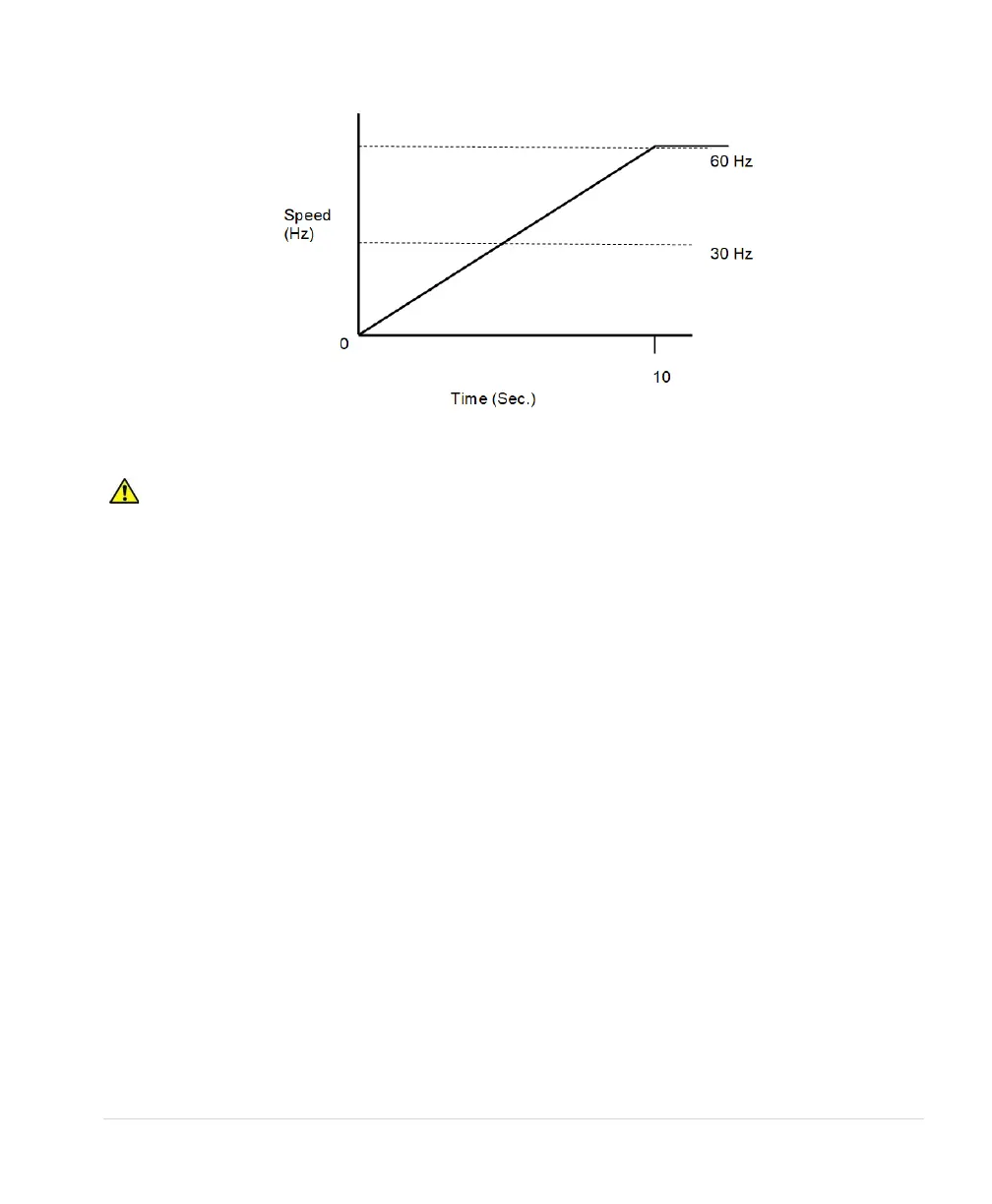

Figure 30 – Start-Up Ramp (SUBMERSIBLE PUMP parameter disabled)
CAUTION: Most submersible pump motor manufacturers require the motor to reach 30 Hz within
one second in order to protect the pump from damage. Factory default ramp time is 0-30 Hz in one
second, followed by the selected ramp time from 30 Hz to maximum frequency.
