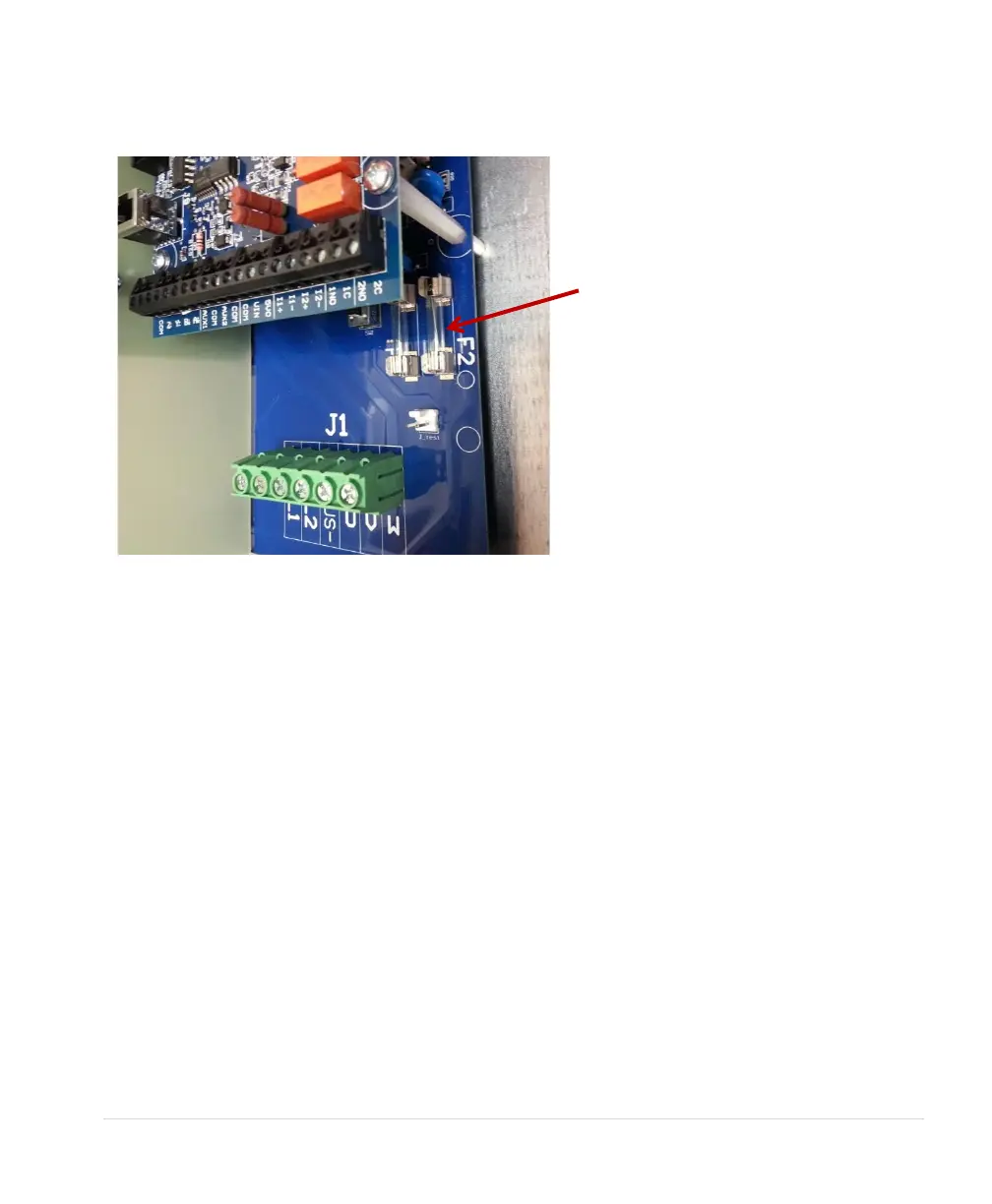

Figure 37 - Fuses
Battery
The drive is equipped with a battery that provides power to a real-time clock. The clock allows faults to
be stamped with time and date. The battery is located on the control printed circuit board. It is a button
cell lithium battery rated at 3.0V, type CR2032.
The battery should last many years under normal operating conditions. If the battery fails, the drive will
continue to operate, losing only the ability to time-stamp faults and provide timed operation of
programmable relays.
