Step 5: Fix the Grounding Shield

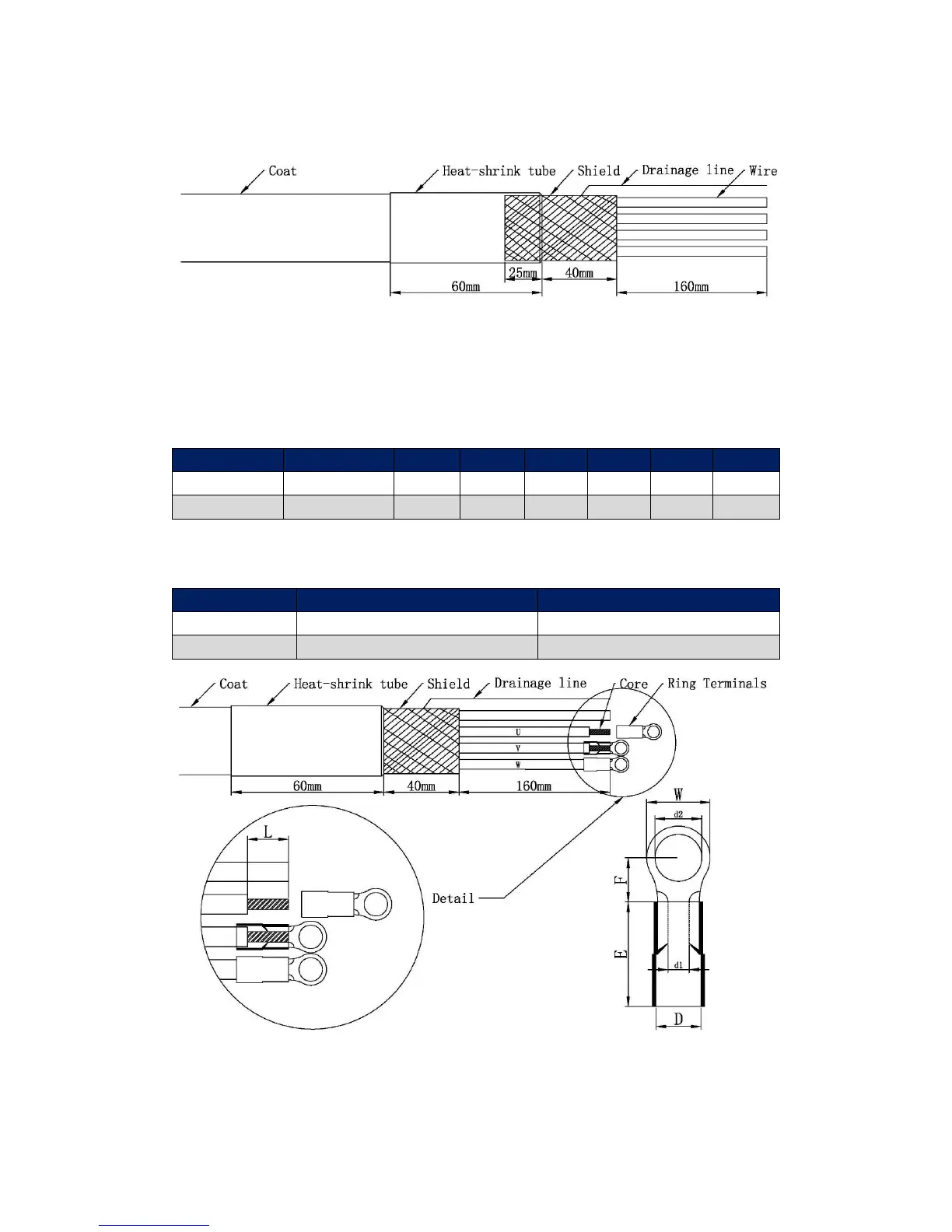

Use a 60mm heat-shrink tube to fix the grounding shield and leave 40mm shield outside.
Step 6: Make the Phase Wires
Choose 3 wires of the cable as phase wires: U, V, W. Crimping pre-insulated Terminals on the
wires will enhance the connection stability and simplicity between the cable and drive. AxN Size5
series drives are recommended to use the RNY Series Ring Terminals manufactured by KST. Refer
to the following table to select the appropriate terminal:
Strip the wires for L mm (F ≤ L ≤ F+B), the recommend strip length is F+2 mm, refer to the
following table to select an appropriate length:
Step 7: Connect the PE wire with Shield
Use the same method to make the remaining wire as the PE wire. Then crimp the PE wire into the
Ring Terminal along with the drainage line. Refer to the following table to select the appropriate
