terminal:
AxN Size5
Ring
Terminals
d2(mm)
W(mm)
F(mm)
E(mm)
D(mm)
d1(mm)
AxN 90.150.4
RNYBS22-6
6.4
12.2
15.1
24
13
7.7
AxN 110.200.4
RNYBS22-6
6.4
12.2
15.1
24
13
7.7

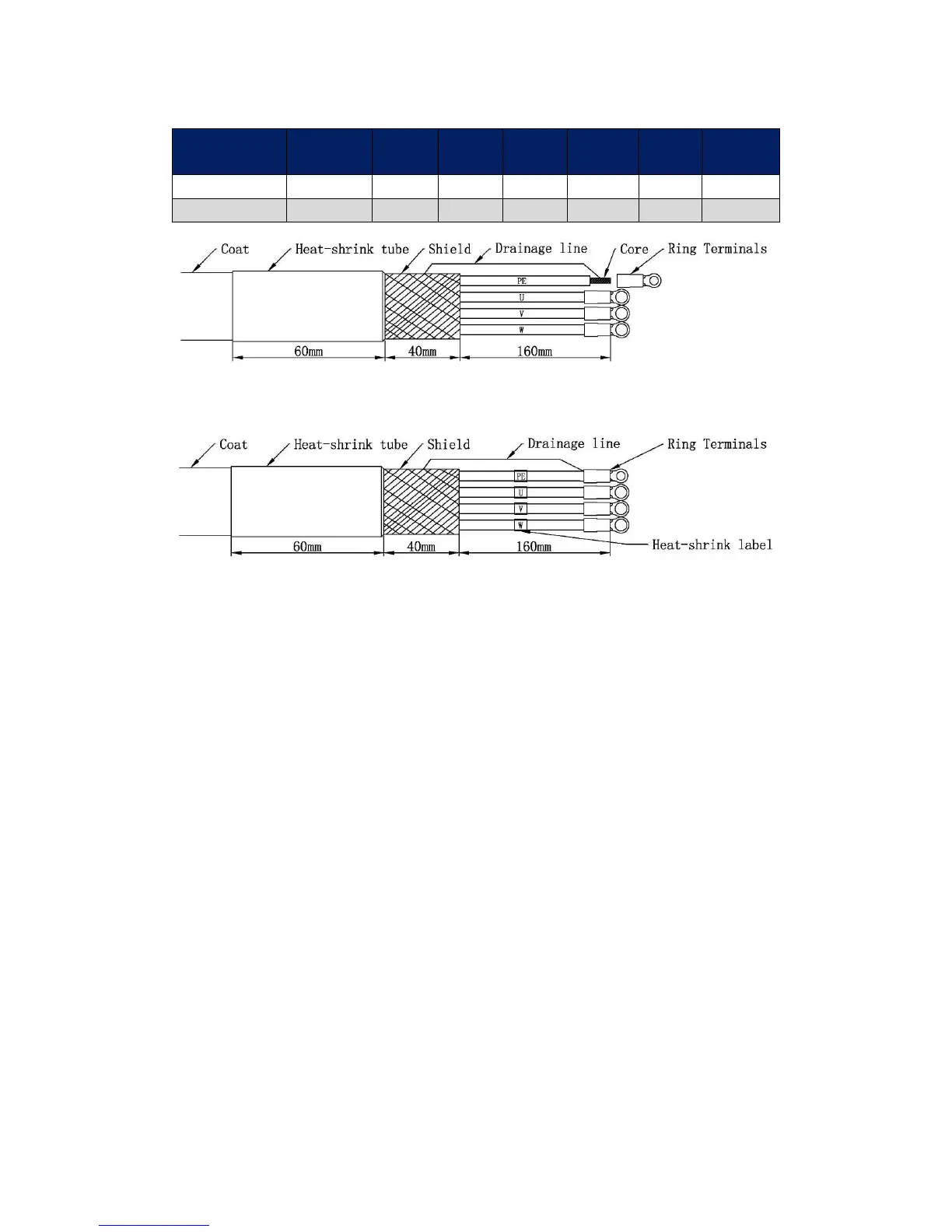

Step 8: Check and Mark
Check every wire and the connection between shield and PE wire, then label each wire.
