16.2 Mounting a Viewnder Mask on a Hasselblad V Series
Camera
The image area of a Hasselblad V camera body at approx. 6x6cm is a
different size to the three IQ model’s sensors so it is necessary to insert
a viewnder mask.
There are two different masks available for Hasselblad V series
cameras according to which IQ is being used. The size IQ280 and
IQ260 models CCD is 53.9x40.4 mm while the IQ140’s CCD measures
43.9x32.9mm. Please check page 168 for the relevant viewnder mask.

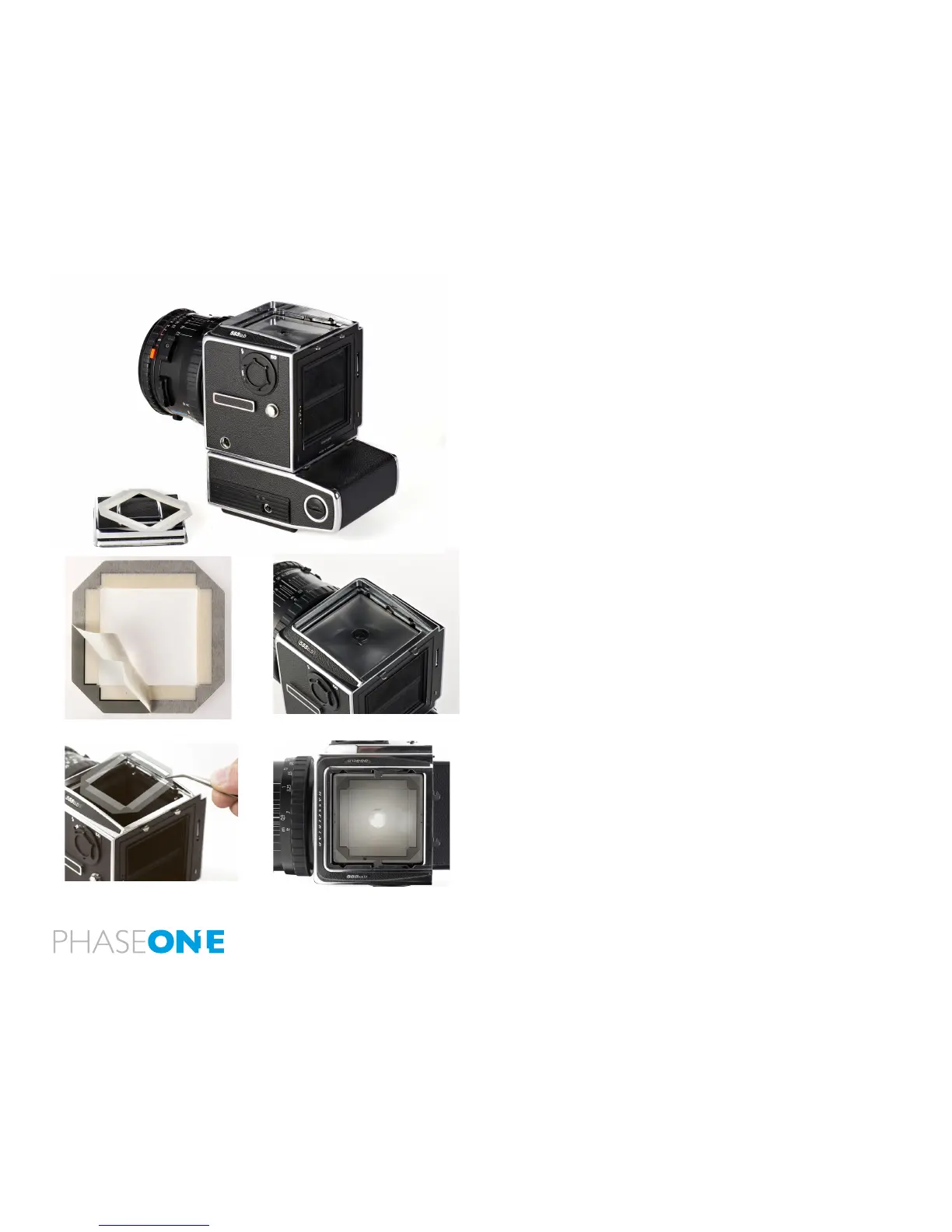

Insert a Viewnder Mask
1. Remove the protection tape from the mask.
2. Dismount the waist-level nder and remove the focus screen.
3. Place the viewnder mask in the bracket that holds the focusing
screen.
4. Re-mount the viewnder focus screen.
5. Slide the waist-level nder back into place.
N.B. Please check the relevant Hasselblad camera manual instructions
before removing the focus screen.
2.
1.
3.
4.
