17.2 Viewnder Masking
The image area of the Hasselblad H1/H2 cameras is 56x41.5 mm.
A viewnder mask is only needed for the smaller size of the IQ140
CCD that measures 44x33mm. Viewnder masking is not necessary
for IQ280 and IQ260 models as their light sensitive CCD measures
53.9x40.4 mm.
Please check page 168 for the relevant viewnder mask.

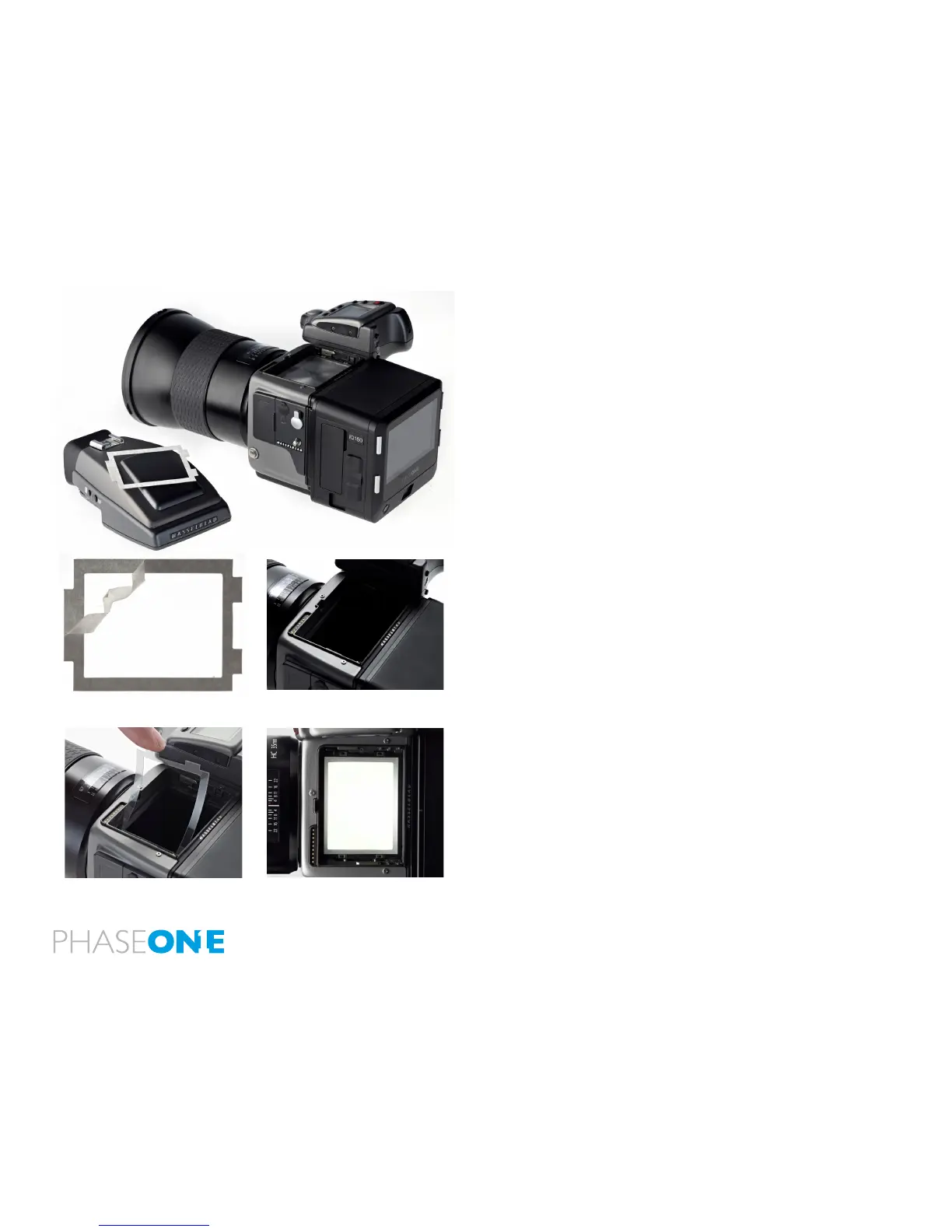

Insert a Viewnder Mask
1. Remove the protection tape from the mask.
2. Dismount the prism/waist-level nder and remove the focus screen.
3. Place the viewnder mask in the bracket that holds the focusing
screen.
4. Re-mount the viewnder focus screen.
5. Re-attach the prism/waist-level nder.
N.B. Please check the relevant Hasselblad H-series manual regarding
how to dismount the viewnder and remove the focus screen.
2.
3. 4.
1.
