Mechanical Instructions
EN 6 LCD CPT 2K74.
4.2 Model CLAA320WB02P
4.2.1 Control Board
Disassembly
1. Place the panel face down on the foam bars, and locate the
Control board.

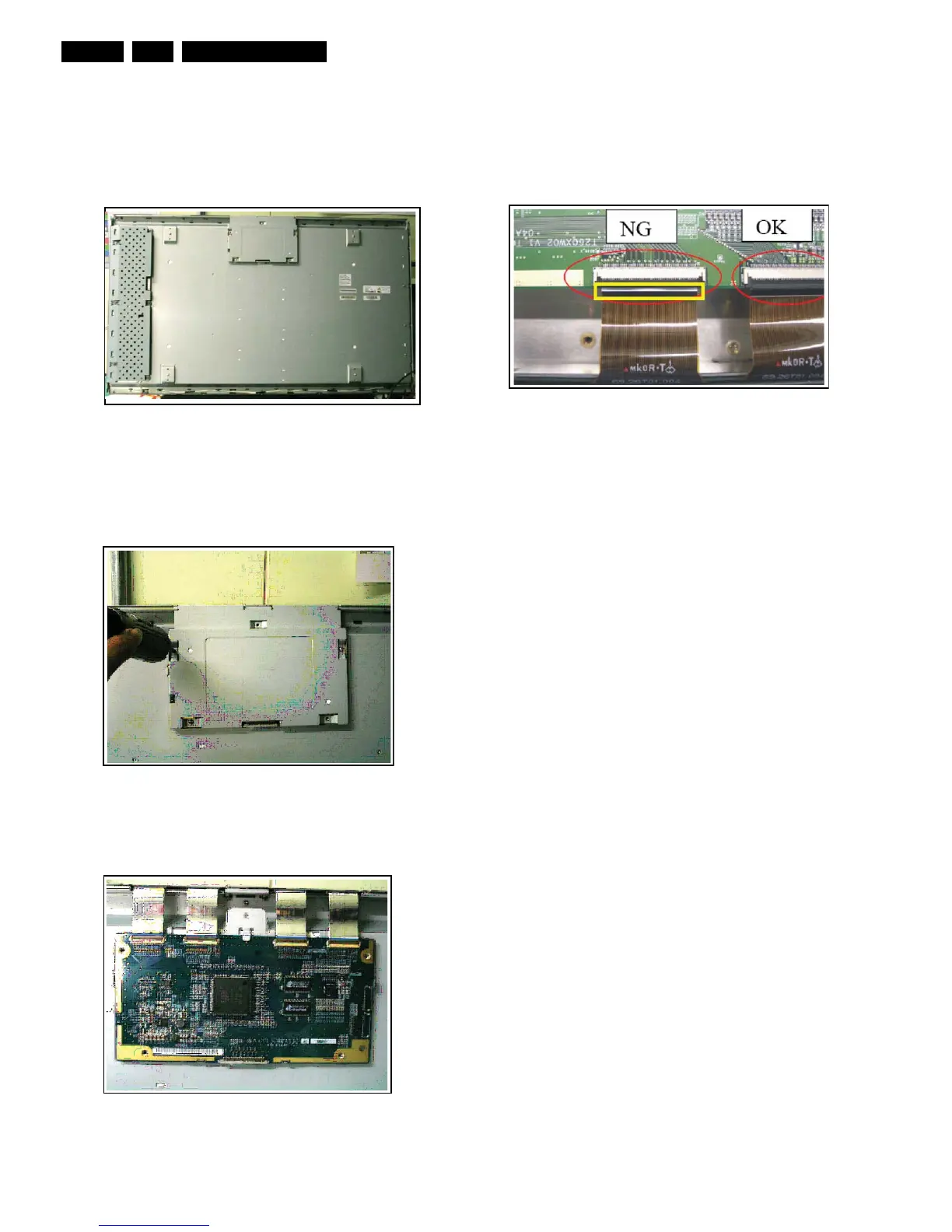

Figure 4-3 Control board location
2. Remove the four screws of the metal cover: start with the
right-down one, then the left-up, one, then the right-up one
and finally the left-down one and lift the cover from the
Control board.
Figure 4-4 Cover screws removal
3. Carefully disconnect the flat cable/FPCs from their
connectors.
Figure 4-5 Unplug FPCs
4. You can now remove the Control Board.
Reassembly
To reassemble, perform all processes in reverse order.
Important: Be sure to insert the FPCs correctly: the white line
must be invisible when inserted correctly (see figure below).
Figure 4-6 Correct FPC insertion
H_16900_018.eps
260607
H_16910_002.eps
260607
H_16910_003.eps
260607
H_16900_007.ep
