Mechanical Instructions
EN 7LCD CPT 2K7 4.
4.2.2 Inverter Board
Disassembly
1. Place the panel face down on the foam bars, and locate the
Inverter board.
2. Remove the cover screws.

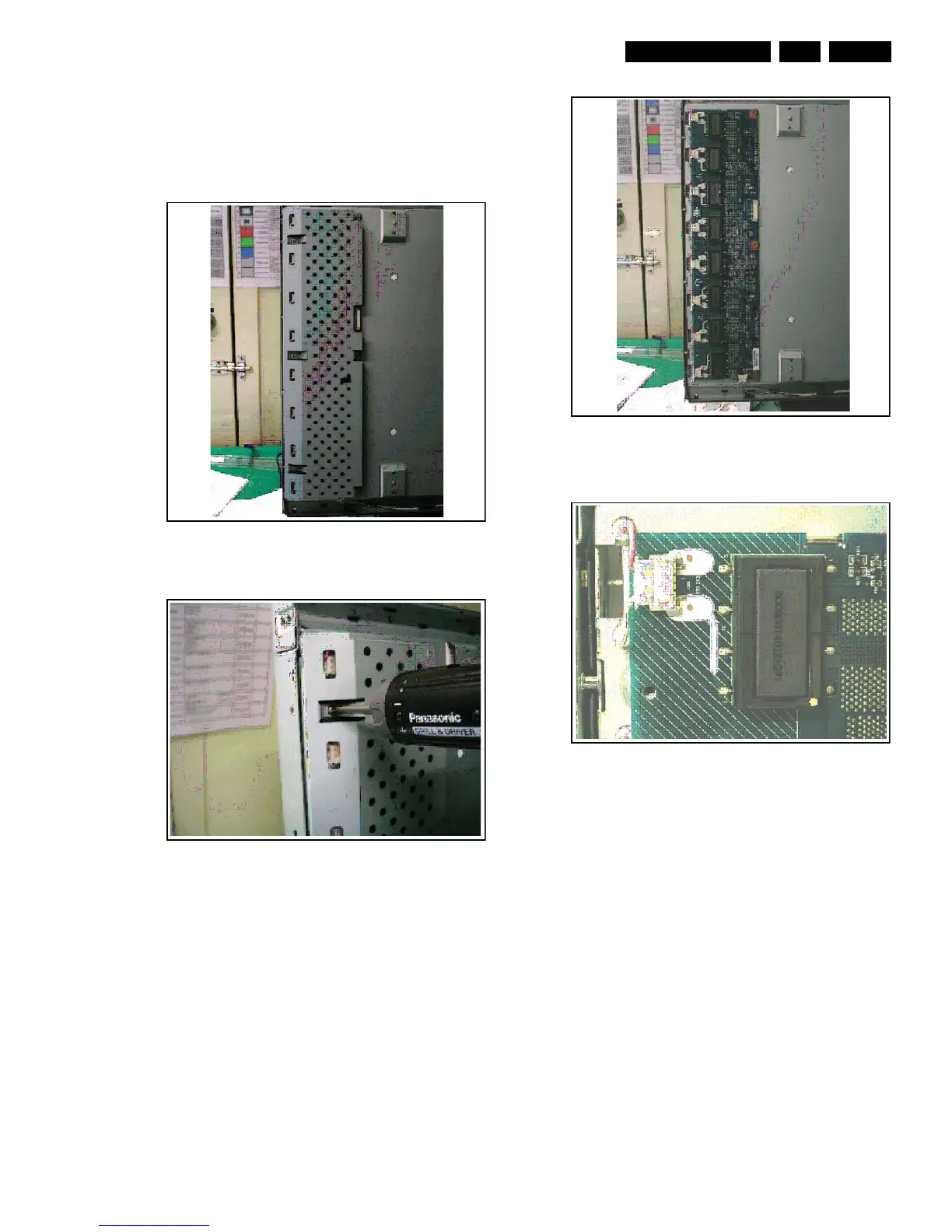

Figure 4-7 Remove Inverter cover
Figure 4-8 Remove Inverter cover screws
3. Unplug the lamp connectors on the inverter. Start at the
top, and be careful not to pull and drag the wires. The use
of a pair of pliers can be helpful.
Figure 4-9 Remove Inverter connectors
Figure 4-10 Remove Inverter board
4. You can now remove the Inverter board.
Reassembly
To reassemble, perform all processes in reverse order.
