Mechanical Instructions
EN 14 LCD LPL 2K74.
4.5 Model LC420WU2
4.5.1 Control Board (T-CON Board)

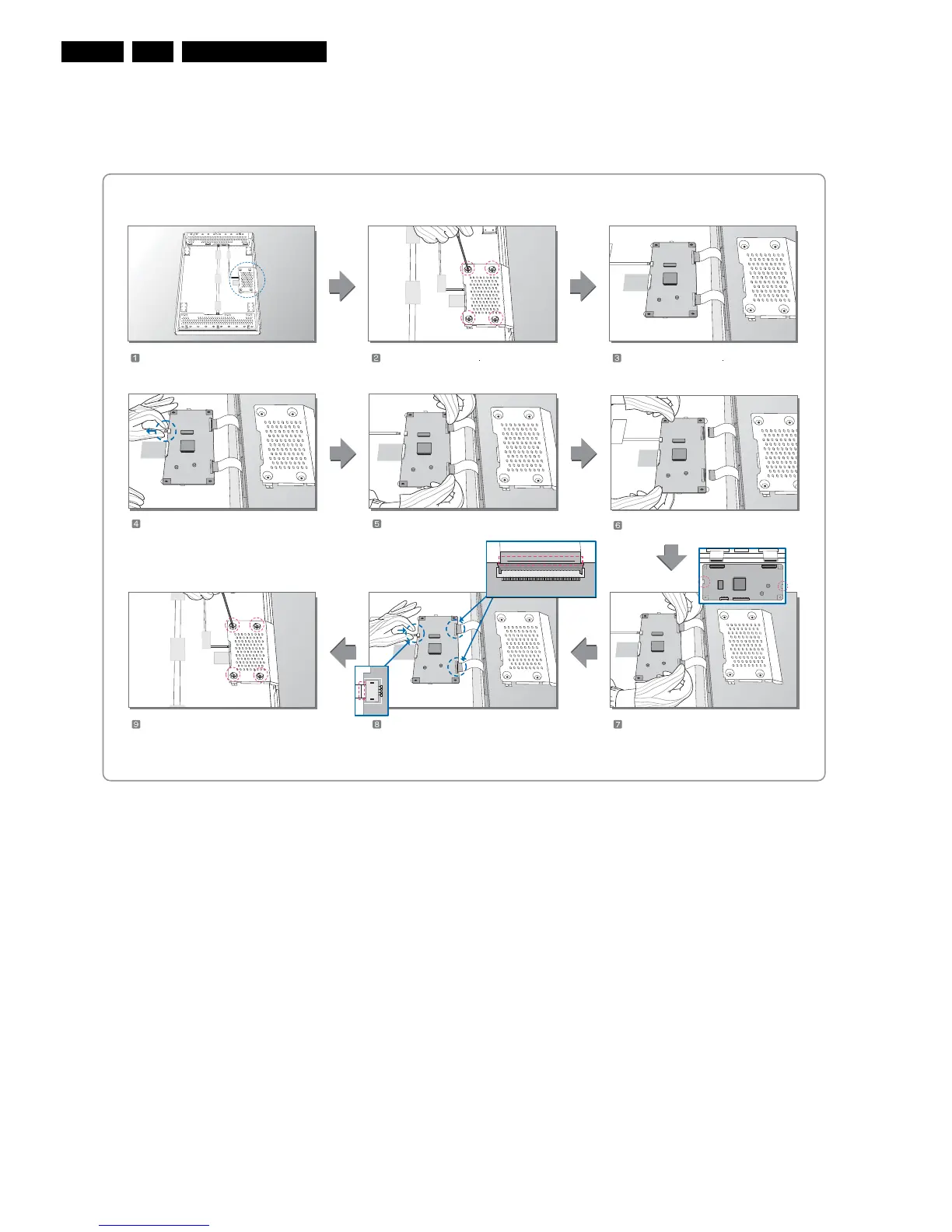

Figure 4-11 Replacement instructions T-CON board
MODEL: LC420WU2-SLC1
Separate the 4pin FFC. Separate the 80pin FFC.
Separate the T-CON Board.
Attach the Cover Shield and
Assemble the Screw(4EA).
Assemble the 4pin FFC.
Replace of T-CON Board and
Assemble the 80pin FFC.
* Guide Pin station keeping check.
H_16890_019.eps
230507
Prepare the LCM. Separate the Screw(4EA)
Separate the Cover Shield
