Mechanical Instructions
EN 15LCD LPL 2K7 4.
4.5.2 Inverter (Master) Board

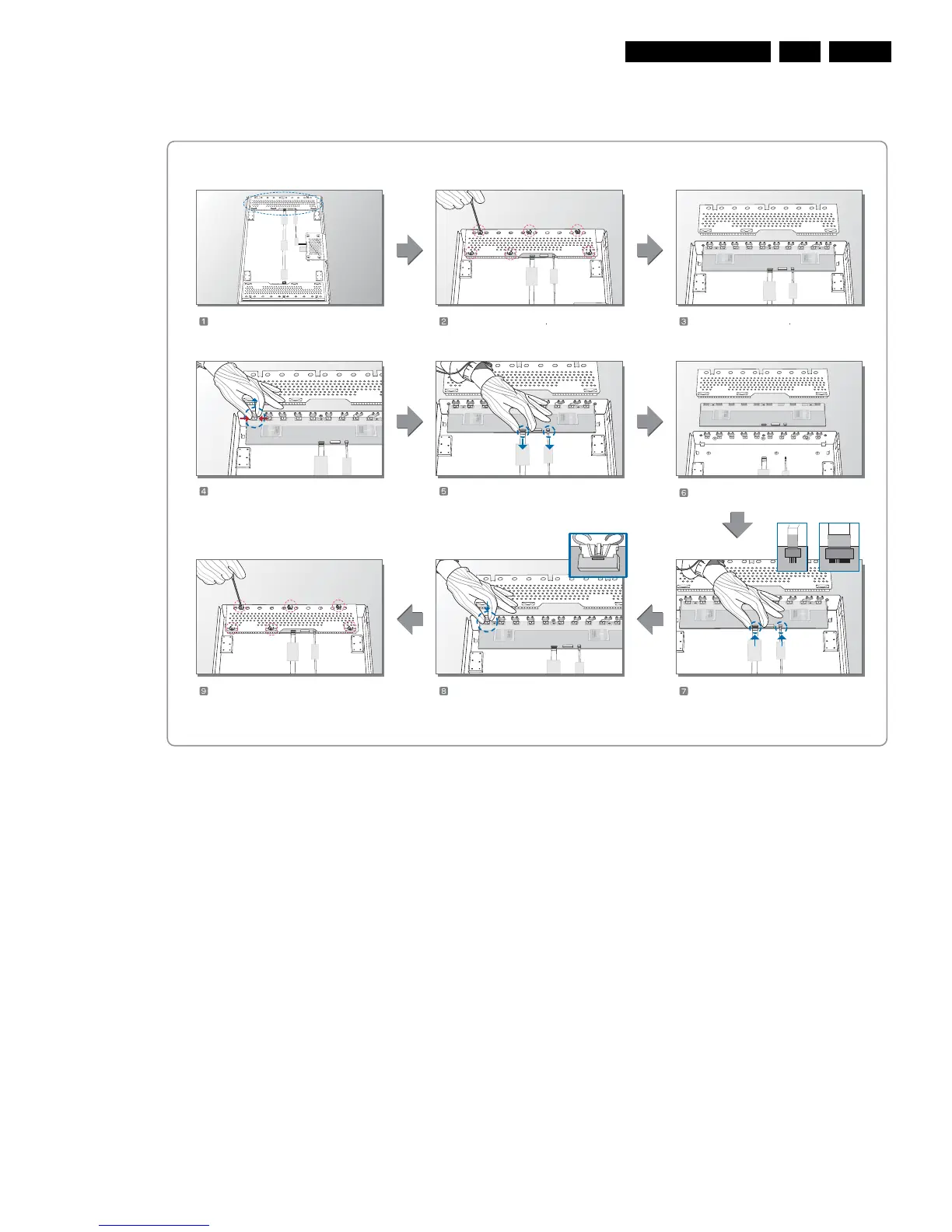

Figure 4-12 Replacement instructions Inverter (master) board
MODEL: LC420WU2-SLC1
Unlock of Connector and
sperate the Wire Connector(2pin).
Separate the (21pin & 4pin) FFC.
Separate the Inverter.
Attach the Cover Shield and
Assemble the Screw(6EA).
Assemble the Wire Connector(2pin).
Replace of Inverter and
Assemble the FFC(21pin & 4pin).
H_16890_020.eps
230507
Prepare the LCM. Separate the Screw(6EA) Separate the Cover Shield
