Mechanical Instructions
EN 16 LCD LPL 2K74.
4.5.3 Inverter (Slave) Board

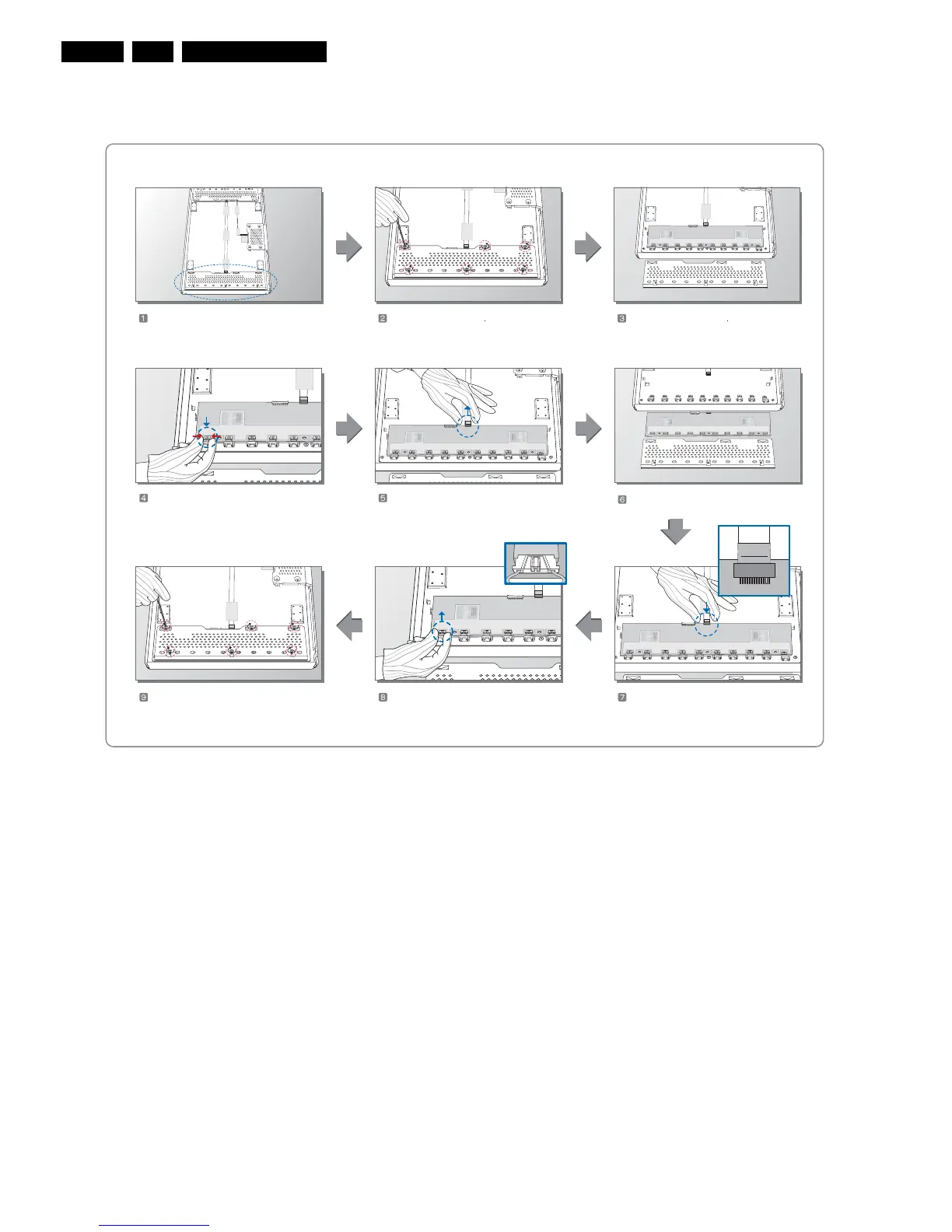

Figure 4-13 Replacement instructions Inverter (slave) board
MODEL: LC420WU2-SLC1
H_16890_021.eps
230507
Prepare the LCM. Separate the Screw(6EA) Separate the Cover Shield
Unlock of Connector and
sperate the Wire Connector(2pin).
Separate the (21pin) FFC.
Separate the Inverter.
Attach the Cover Shield and
Assemble the Screw(6EA).
Assemble the Wire Connector(2pin).
Replace of Inverter and
Assemble the FFC(21pin).
