Mechanical Instructions
EN 17LCD LPL 2K7 4.
4.6 Model LC420WX2
4.6.1 Control Board (T-CON Board)

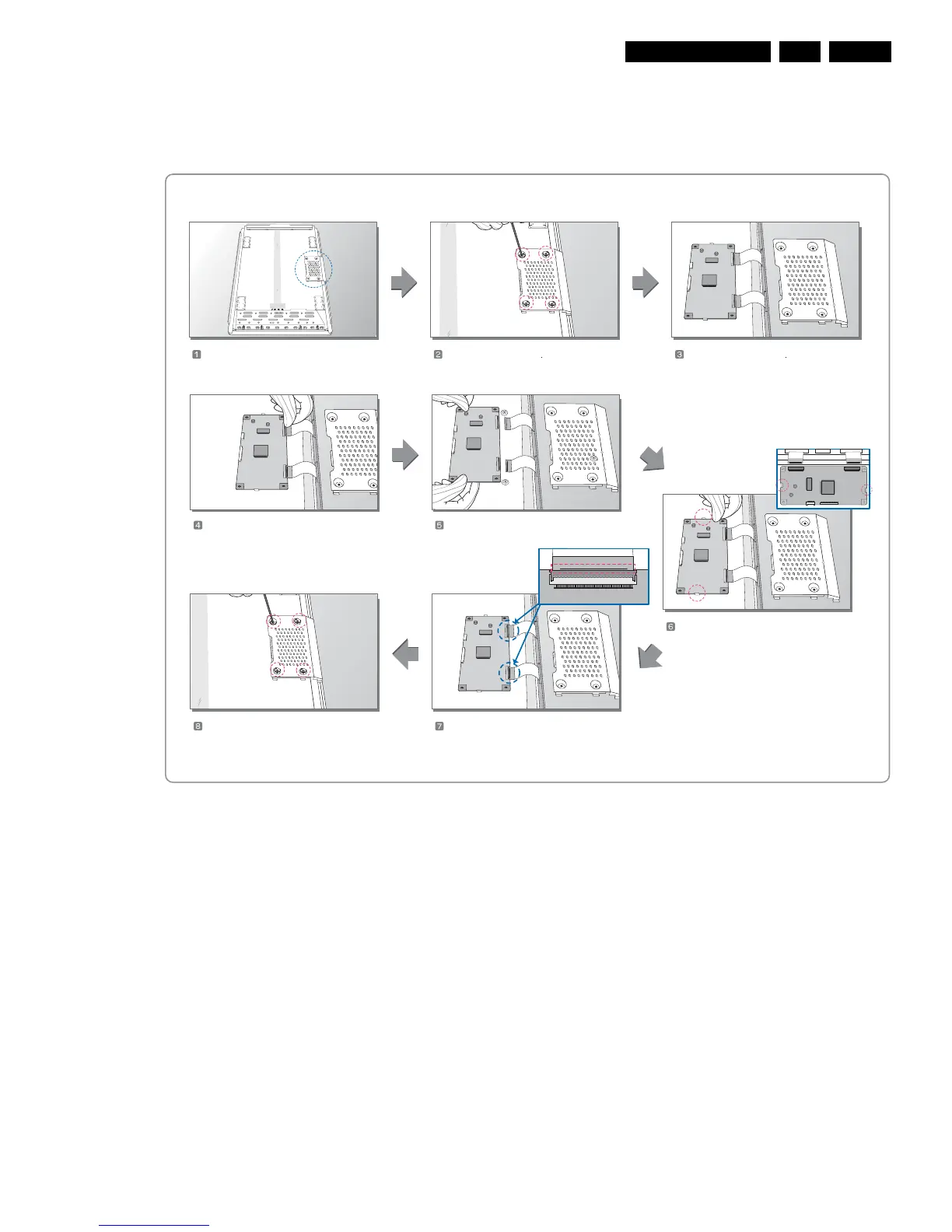

Figure 4-14 Replacement instructions T-CON board
MODEL: LC420WX2-SLA1
Separate the FFC(60pin) 2EA.
Separate the T-CON Board.
Attach the Cover Shield and
Assemble the Screw(4EA).
Check the FFC(60pin) 4EA.
Replace of T-CON Board and
Assemble the FFC(60pin) 4EA.
* Guide Pin station keeping check.
H_16890_014.eps
230507
Prepare the LCM. Separate the Screw(4EA)
Separate the Cover Shield
