Mechanical Instructions
EN 18 LCD LPL 2K74.
4.6.2 Inverter Board

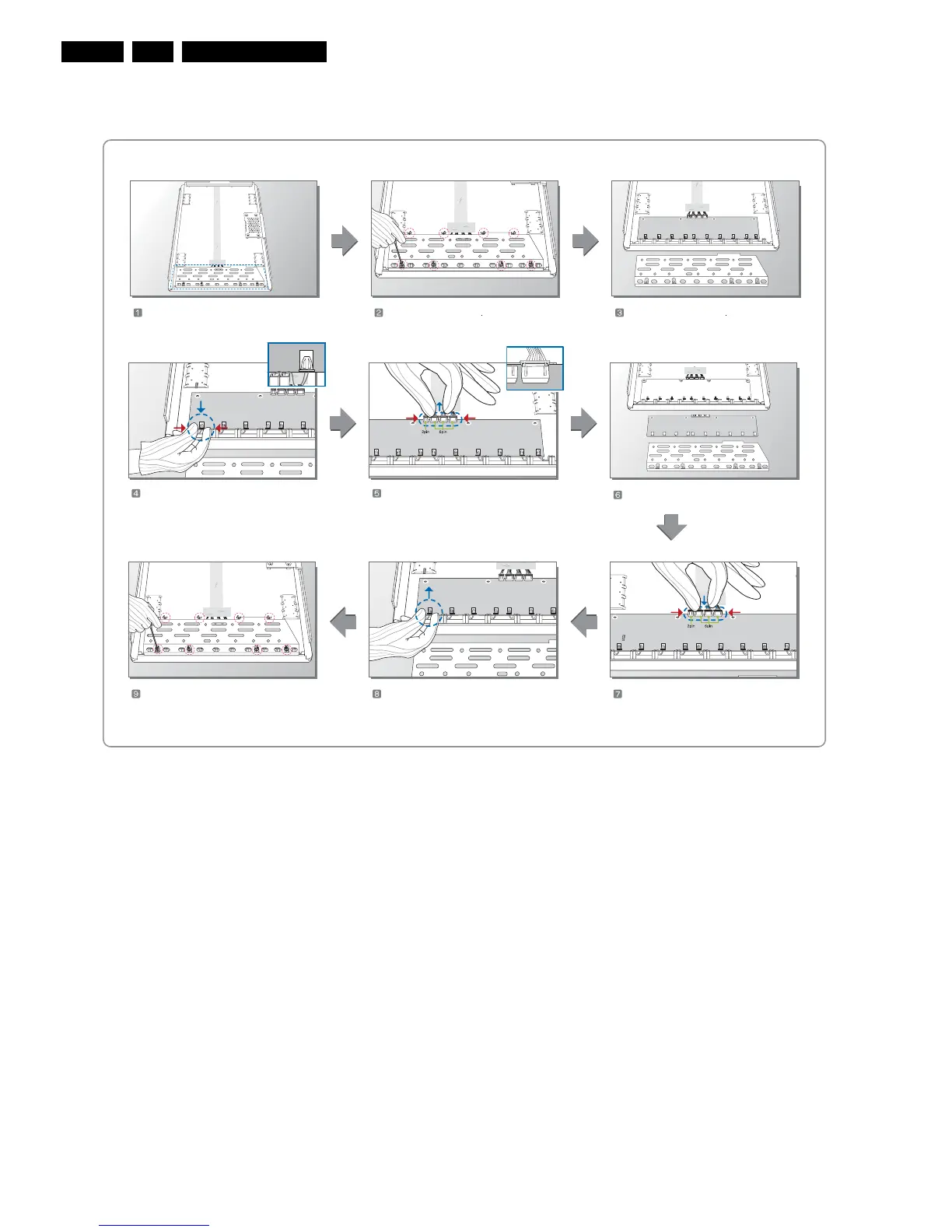

Figure 4-15 Replacement instructions Inverter board
MODEL: LC420WX2-SLA1
Unlock of Connector and
sperate the Wire Connector(2pin).
Separate the
FFC<6pin(3ea), 2Ppin> 4EA.
Separate the Inverter.
Attach the Cover Shield and
Assemble the Screw(8EA).
Assemble the Wire Connector(2pin).
Replace of Inverter and
Assemble the
FFC<6pin(3ea), 2Ppin> 4EA.
H_16890_015.eps
230507
Prepare the LCM. Separate the Screw(8EA)
Separate the Cover Shield
