Mechanical Instructions
EN 19LCD LPL 2K7 4.
4.7 Model LC420WX3
4.7.1 Control Board (T-CON Board)

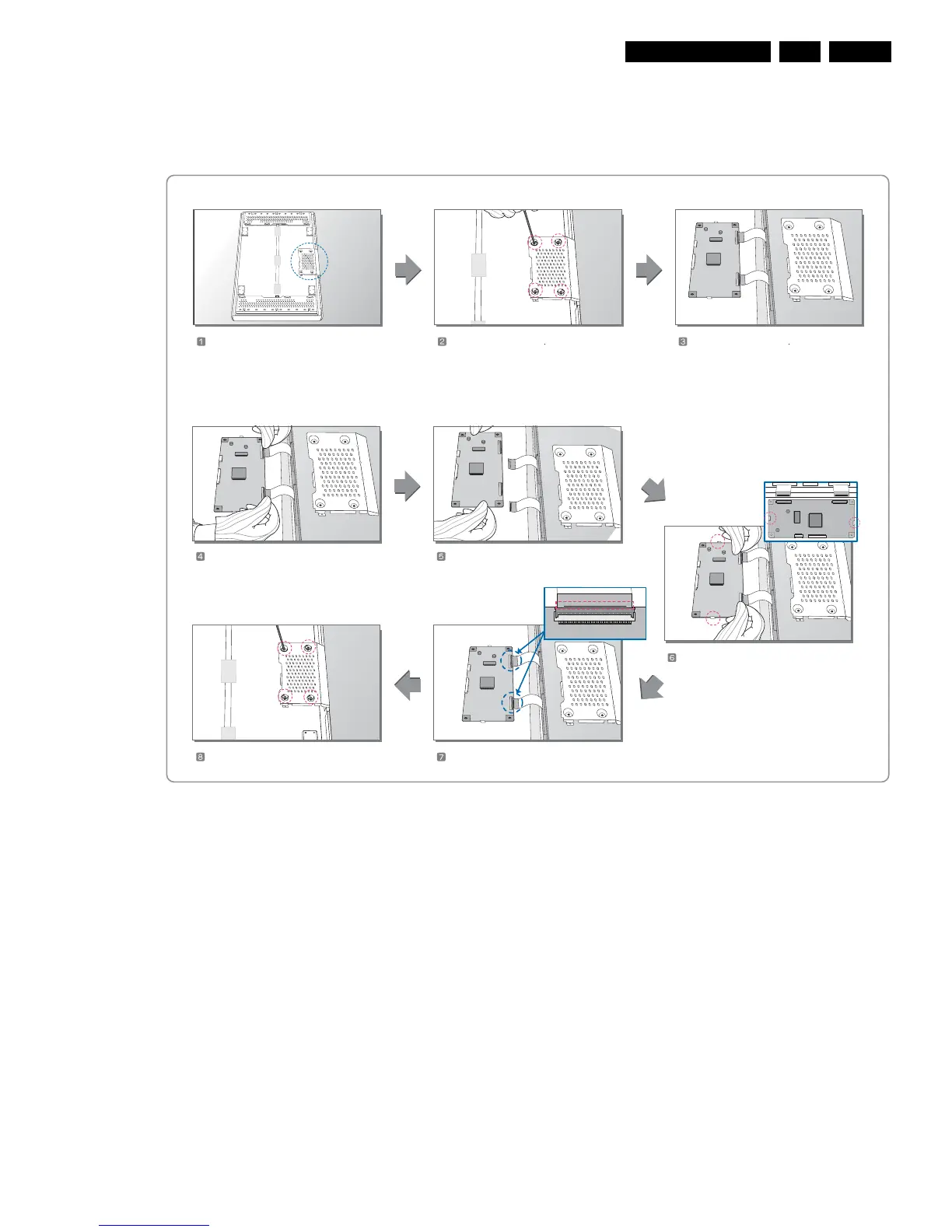

Figure 4-16 Replacement instructions T-CON board
Prepare the LCM. Separate the Screw(5EA) Separate the Cover Shield
Separate the FFC(50pin). Separate the T-CON Board.
Attach the Cover Shield and
Assemble the Screw(5EA).
Check the FFC(50pin).
Replace of T-CON Board and
Assemble the FFC(50pin).
* Guide Pin station keeping check.
H_16890_001.eps
230507
MODEL: LC420WX3-SLA1
