Mechanical Instructions
EN 20 LCD LPL 2K74.
4.7.2 Inverter (Master) Board

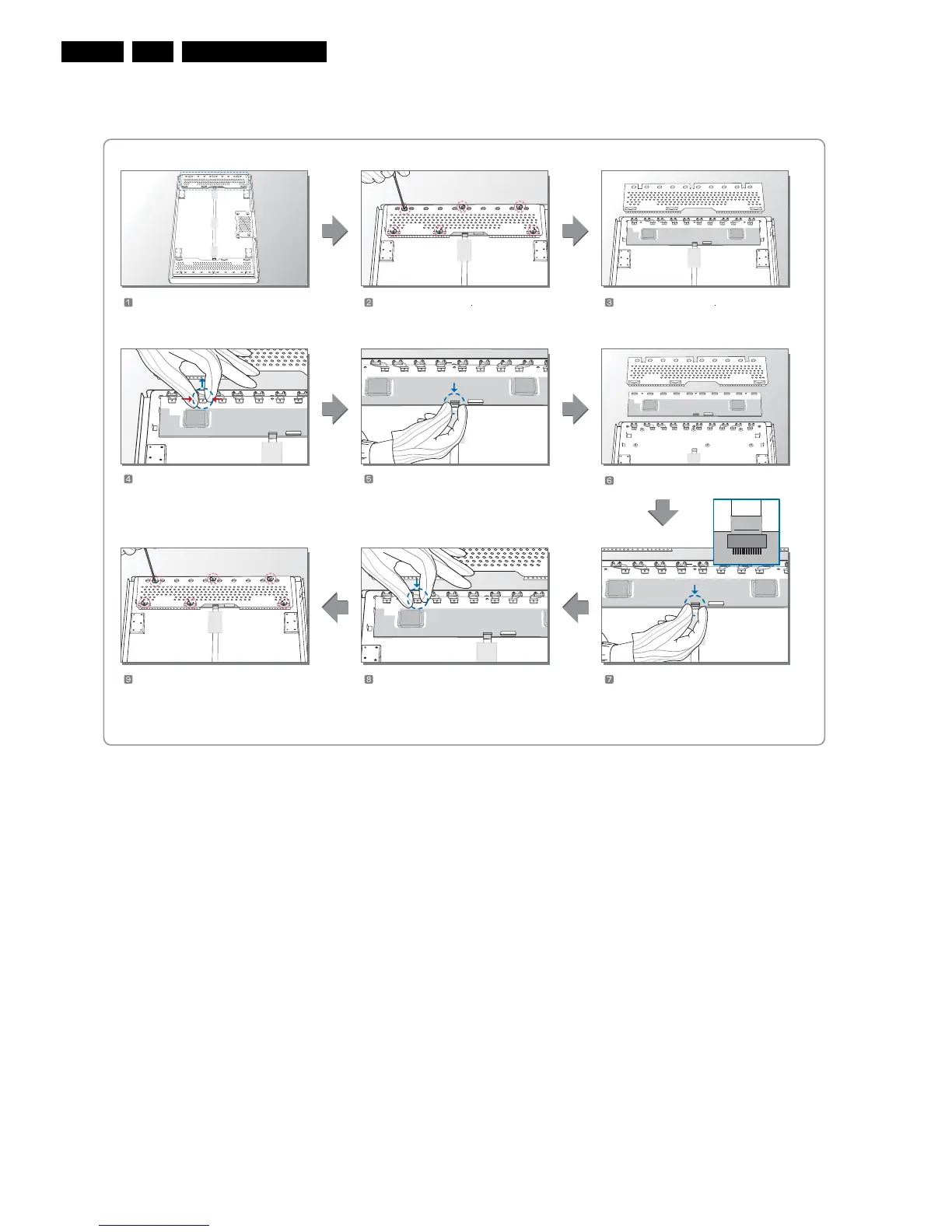

Figure 4-17 Replacement instructions Inverter (master) board
H_16890_002.eps
230507
Prepare the LCM.
Separate the Screw(7EA) Separate the Cover Shield
Unlock of Connector and
sperate the Wire Connector(2pin).
Separate the FFC(21pin).
Separate the Inverter.
Attach the Cover Shield and
Assemble the Screw(7EA).
Assemble the Wire Connector(2pin).
Replace of Inverter and
Assemble the FFC(21pin).
MODEL: LC420WX3-SLA1
