Mechanical Instructions
EN 21LCD LPL 2K7 4.
4.7.3 Inverter (Slave) Board

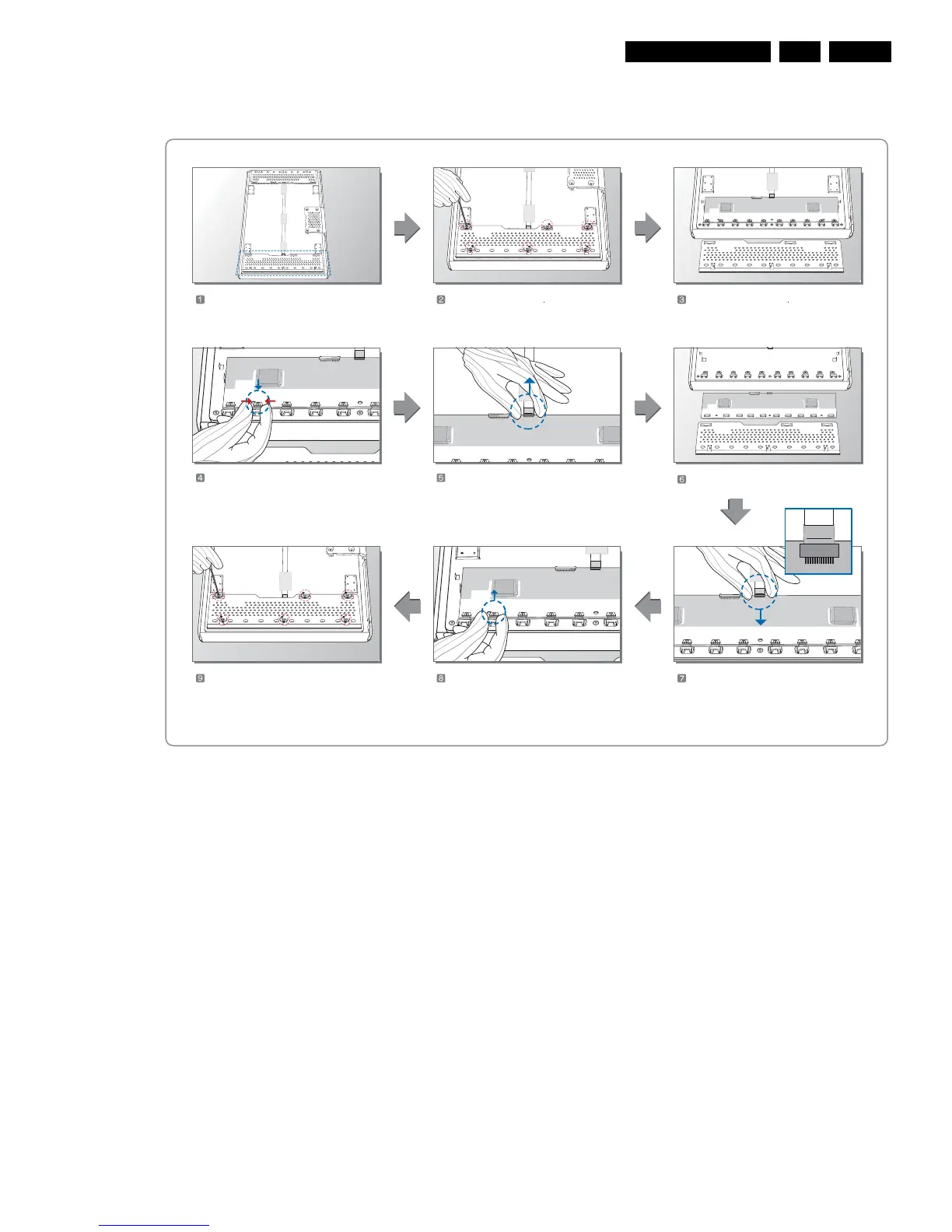

Figure 4-18 Replacement instructions Inverter (slave) board
Unlock of Connector and
sperate the Wire Connector(2pin).
Separate the FFC(21pin) .
Separate the Inverter.
Attach the Cover Shield and
Assemble the Screw(7EA).
Assemble the Wire Connector(2pin).
Replace of Inverter and
Assemble the FFC(21pin).
MODEL: LC420WX3-SLA1
H_16890_003.eps
230507
Prepare the LCM. Separate the Screw(7EA) Separate the Cover Shield
