Mechanical Instructions
EN 22 LCD LPL 2K74.
4.8 Model LC420WX5
4.8.1 Control Board (T-CON Board)

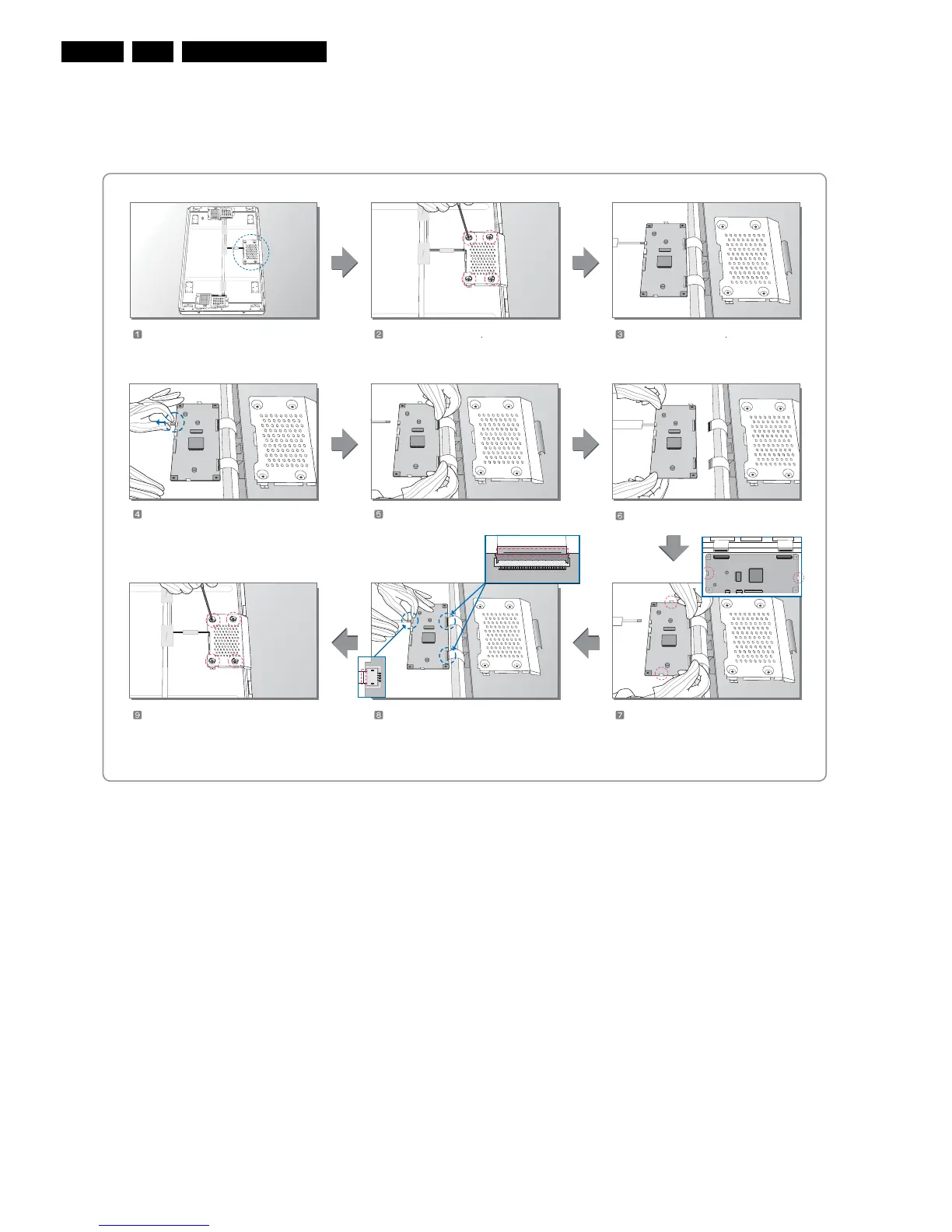

Figure 4-19 Replacement instructions T-CON board
Separate the 4pin FFC.
Separate the 60pin FFC.
Separate the T-CON Board.
Attach the Cover Shield and
Assemble the Screw(4EA).
Assemble the 4pin FFC.
Replace of T-CON Board and
Assemble the 60pin FFC.
* Guide Pin station keeping check.
MODEL: LC420WX5-SLA1
H_16890_005.eps
230507
Prepare the LCM. Separate the Screw(4EA) Separate the Cover Shield
To Next Page
