Mechanical Instructions
EN 23LCD LPL 2K7 4.
4.8.2 Inverter (Master) Board

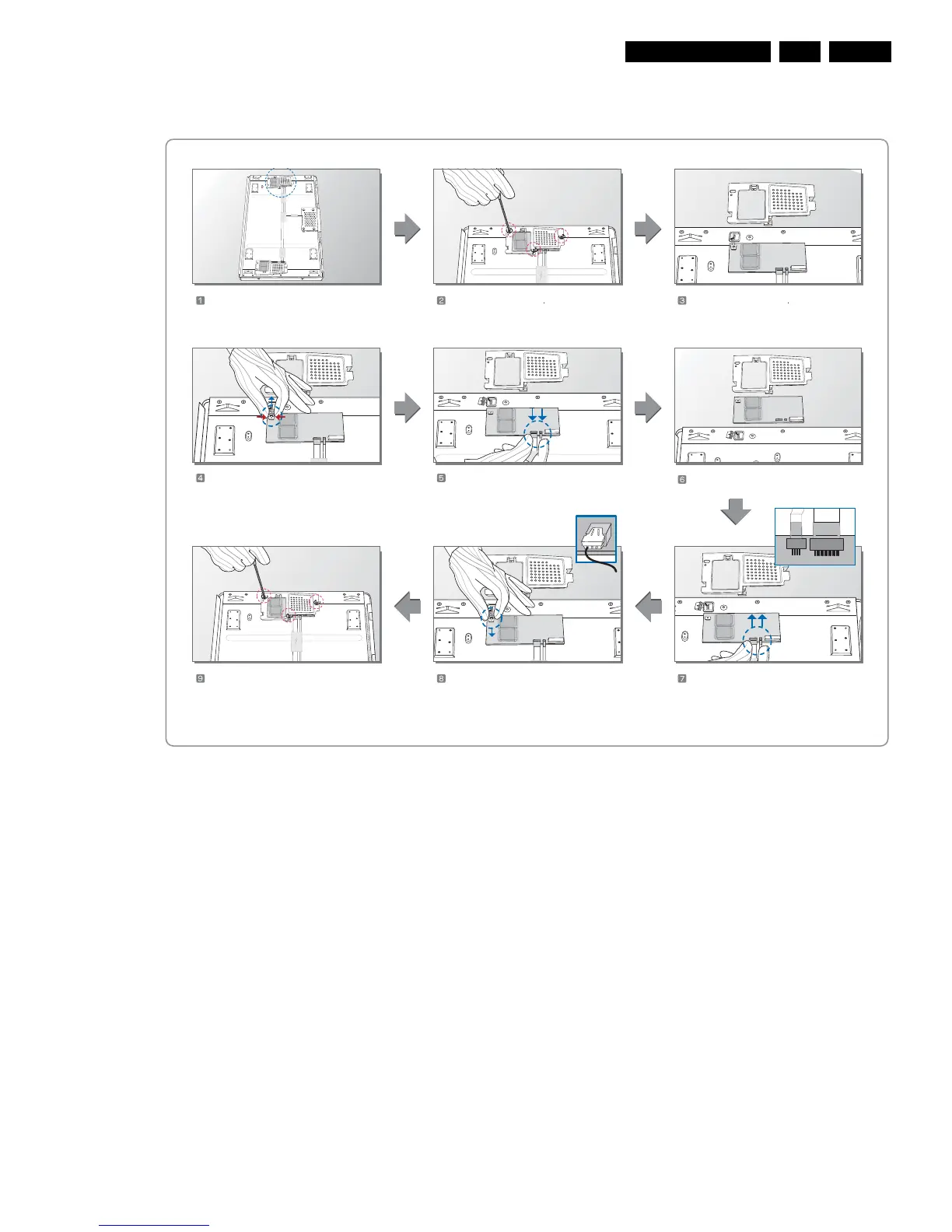

Figure 4-20 Replacement instructions Inverter (master) board
Unlock of Connector and
sperate the Wire Connector(2pin).
Separate the (11pin & 4pin) FFC.
Separate the Inverter.
Attach the Cover Shield and
Assemble the Screw(3EA).
Assemble the Wire Connector(2pin).
Replace of Inverter and
Assemble the FFC(11pin & 4pin).
MODEL: LC420WX5-SLA1
H_16890_006.eps
230507
Prepare the LCM.
Separate the Screw(3EA) Separate the Cover Shield
