Basic Console Layout 6
250ML Lighting Control Consoles
Operation Guide
OVERVIEW

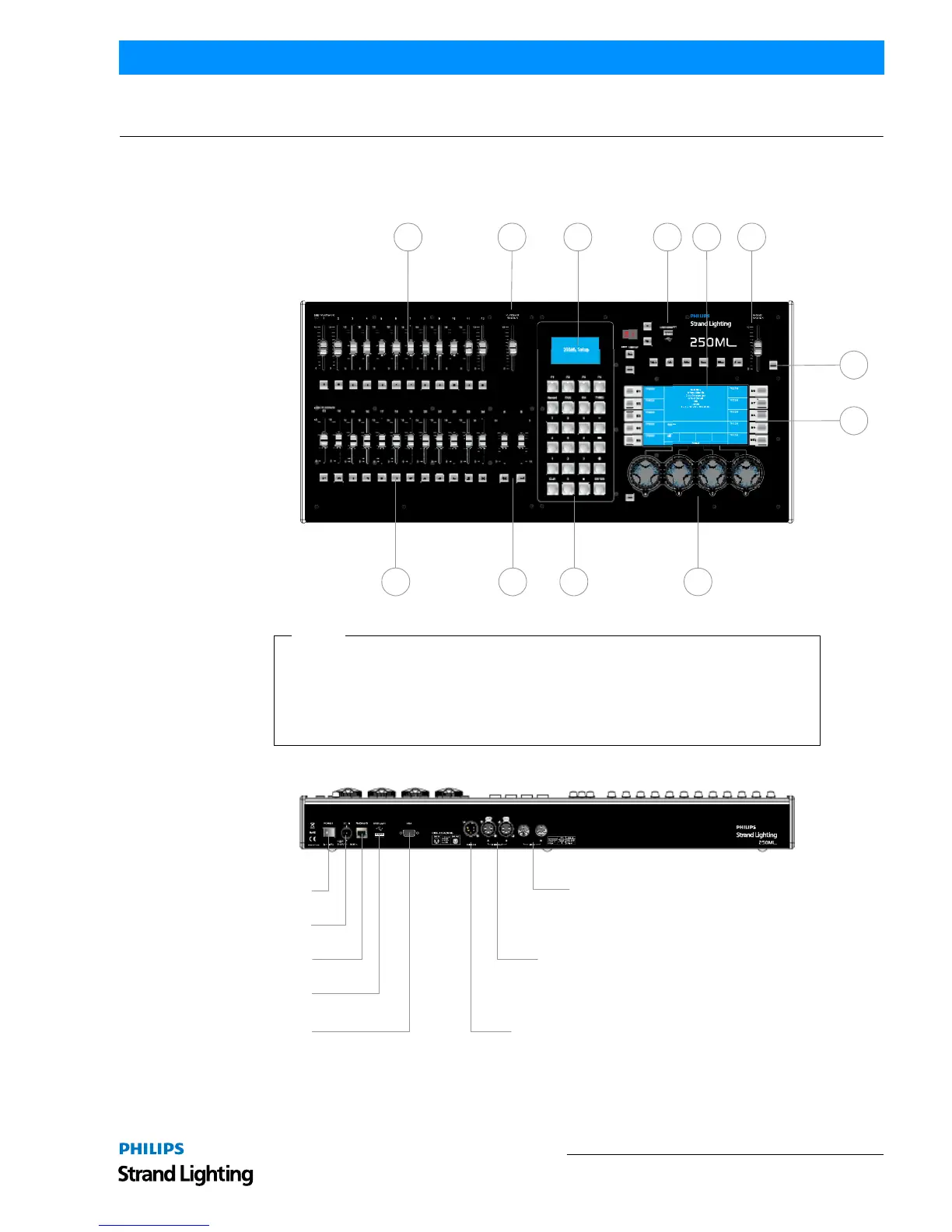

1. Basic Console Layout
Power Switch
DMX512A (RDM) Out
(2 each)
DMX512A (RDM) In
VGA Out
(Monitor)
Power I nput
Ethernet Port (RJ45)
USB Port *
MIDI In/Thru
250ML Console - Rear Panel Connections
A B C D F
G
H
I
E
JL K
A. 24 Faders / Submasters
B. Playback Master
C. Programming LCD Display
D. USB Port (showfile storage, USB key sold separately)
E. Main Console LCD Color Display
F. Grand Master
G. Black Out Button
H. Softkeys (10 each)
I. Encoders (4 each)
J. Programming Buttons
K. A / B Playback Controls (with Go and Load buttons)
L. 24 Bump Buttons
Legend
(*For USB LED desk lamp. Not for showfile storage.)
THRU
MIDI T HRU
