I. Contrôle.
Turn the control disc to the home/rest position. The probe/TASTER
must now rest on the mounting plate. The turntable is now turned clockwise (coupled with
a control disc ).
In the position of change...
Do not jump backwards in the switch position by tapping and knocking. Now place the
probe/TASTER backwards and check the entire operation of just a few 30 cm plates.
p13b

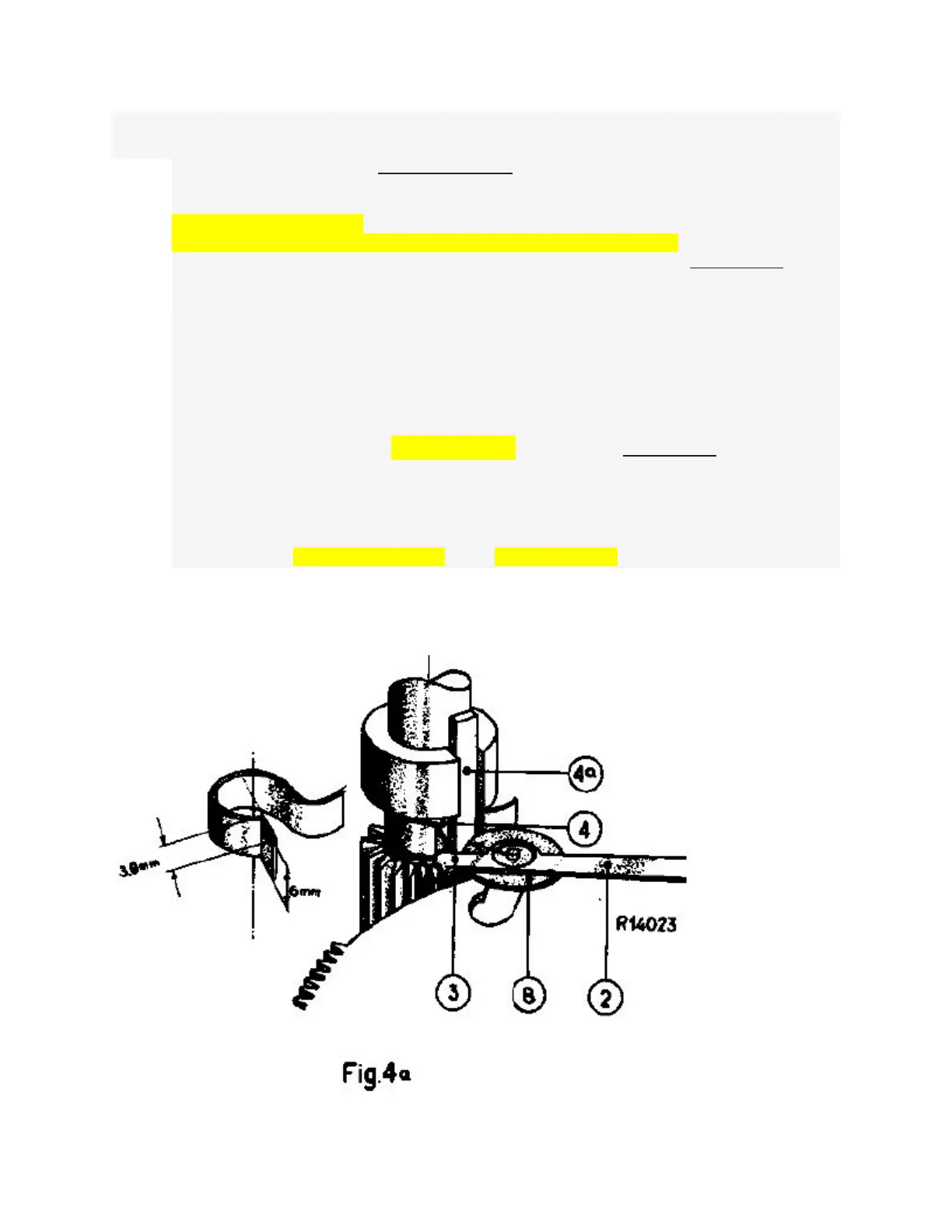

3. Setting the stop position of the control disc .
(see fig.4a)
Place the disc changer in the [non toothed] rest position (the toothless part of the
control disk knock-out opposite the main shaft). Position the device vertically so that the
intermediate wheel (fig.7) no item in either fr or dutch pdf...guess rol
43 wheel rubber
is. Below ...
Then loosen the two fastening screws of the locking clip (135) fig.9 a few turns.
The locking clip can now be moved back and forth. Now the mold (see fig. 4a) must be clamped
around the main shaft, as shown in the figure. The locking bar must now be moved so that the roller
(8) rests against the center of the cam/ridge 4a and at the same time the pumping of the nose (3)
32
