(1) is dirty or insufficiently lubricated, so that it can not move freely. Pressure of leaf spring is insufficient
(see (1) point 2).

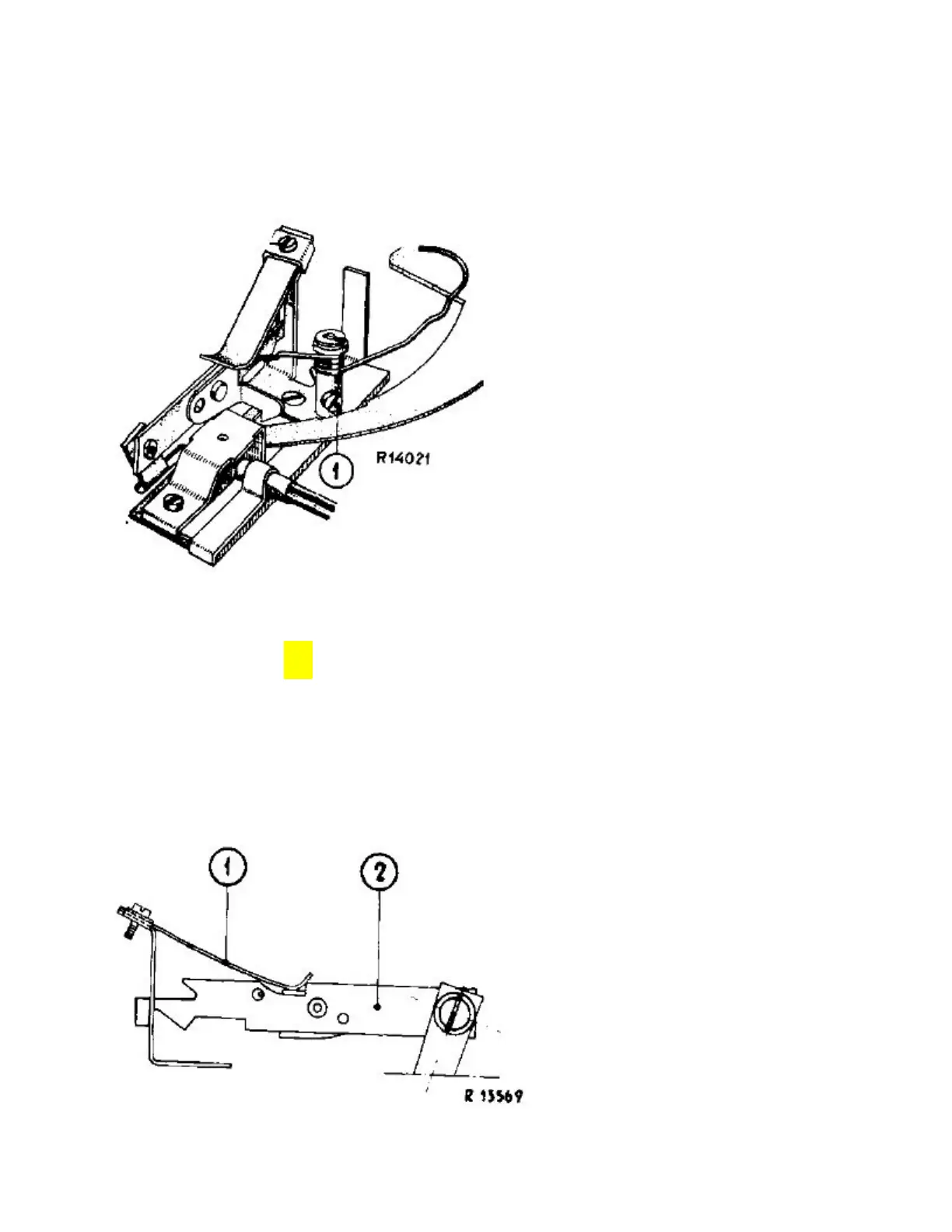

R14021
2. The curved part of leaf spring (1)
does not fall into the recess of the switch strip (2) when the start handle is in the stop position.
The leaf spring must be fixed in such a way that this is the case and that there is no "dead slag". The
pressure of the leaf spring should be 225-250 grams, measured in the curved end of the spring.
IR 15569
52
