Philips Q552.1A - Styling Sheets; Matisse 32 - 52

EN 156Q552.1A LA 11.
Styling Sheets
2010-Jun-25
back to
div. table
11. Styling Sheets
11-1 Matisse 32" - 52"
0004
0024
0260
0029
0010
0021
0010
0018
Pos Nbr Description Remarks
0004 Front Cabinet
0010 Rear Cover (with left & right diffuser)
0018 Leading edge cover
0021 I/O bracket s ide
0024 I/O bracket bottom
0029 S witch bracket
0162 Mid High Speaker Interface bracket 32" Not displayed. For screen size 32" only
0189 Front Cabinet Locking Bracket 40" Not displayed. For screen size 40" only
0260 Stand
1085 Remote Control Not displayed
1114 Keyboard assy
5213 Lou
dspeaker assy (left & right)

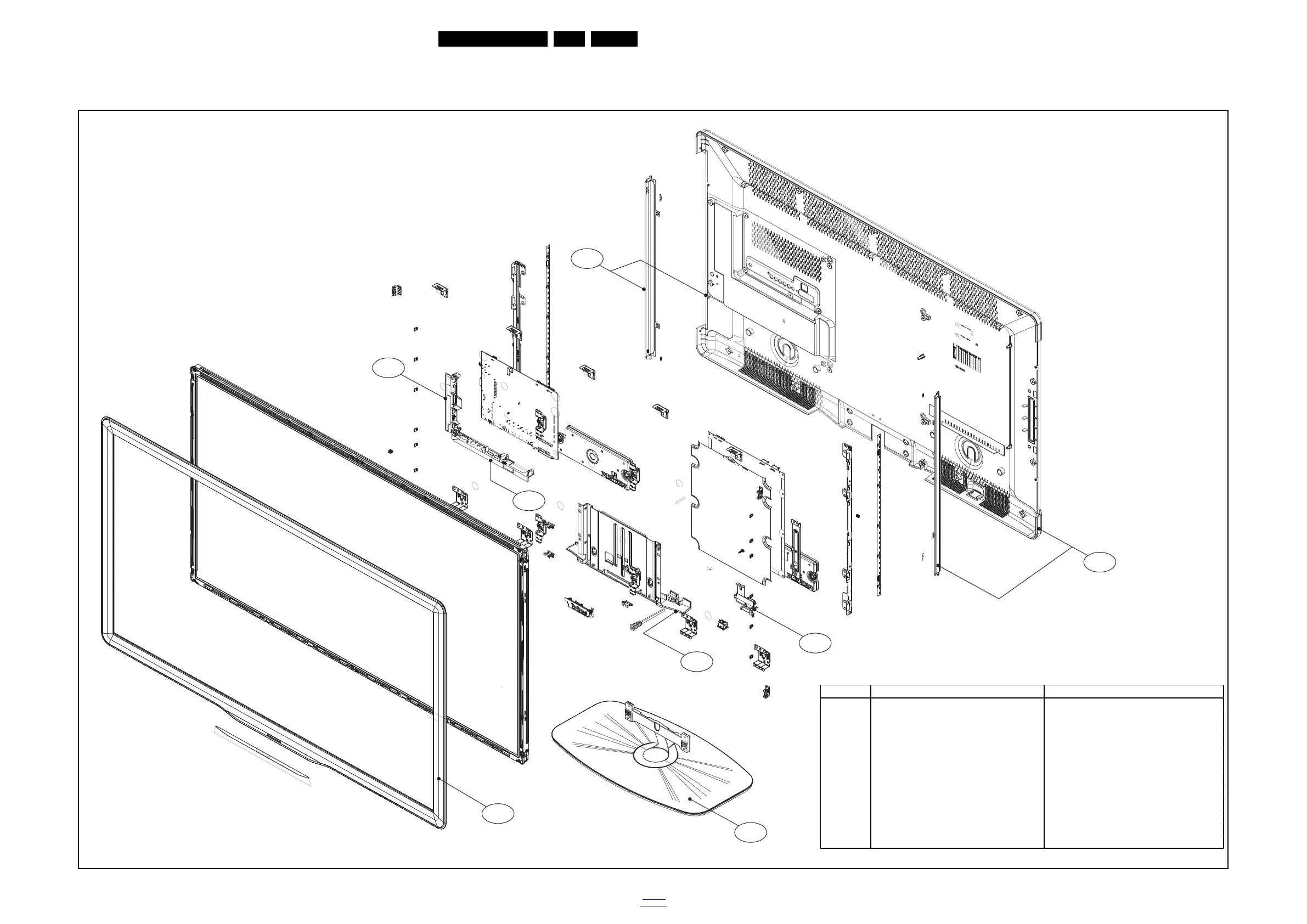

18770_803_100216.eps
100601
MATISSE 32"- 52"
FOR ELECTRICAL PARTS SEE WIRING DIAGRAM CHAPTER 9
