Philips VR550 - Page 41

1-10-25
1-10-26

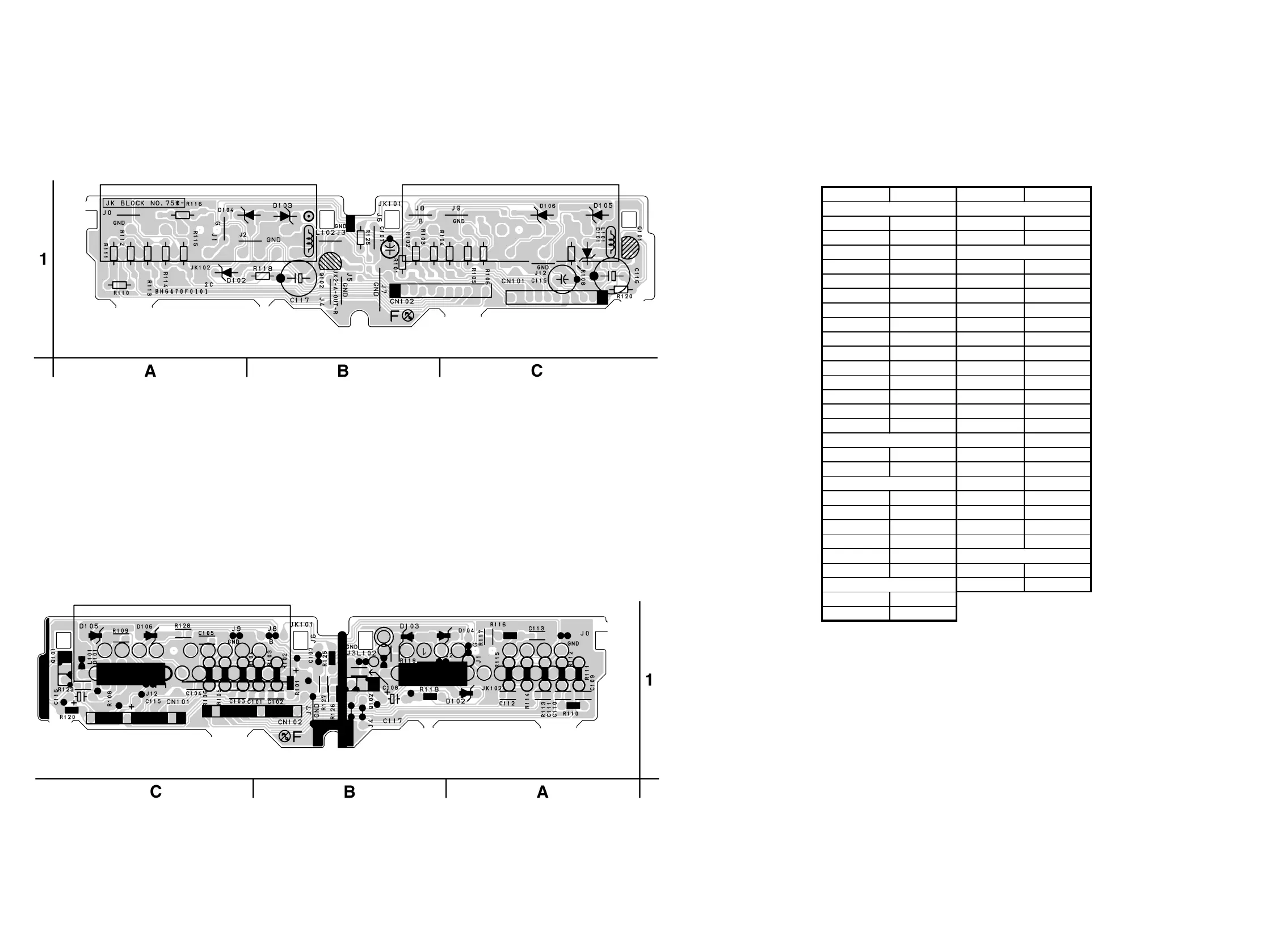

Jack CBA Top View
Jack CBA Bottom View
BHG470F01012-C
Jack CBA Parts Location Guide
Ref No. Position Ref No. Position
C101 B-1 Q101 C-1
C102 B-1 Q102 B-1
C103 C-1
C104 C-1 R101 B-1
C105 C-1 R103 B-1
C107 B-1 R104 B-1
C108 B-1 R106 C-1
C109 A-1 R108 C-1
C110 A-1 R109 C-1
C111 A-1 R110 A-1
C112 A-1 R112 A-1
C113 A-1 R113 A-1
C115 C-1 R115 A-1
C116 C-1 R116 A-1
C117 B-1 R117 A-1
R118 B-1
CL101 C-1 R119 B-1
CL102 B-1 R120 C-1
R123 C-1
D101 C-1 R125 B-1
D102 A-1 R126 B-1
D103 B-1 R127 B-1
D104 A-1 R128 C-1
D105 C-1
D106 C-1 JK101 B-1
JK102 A-1
L101 C-1
L102 B-1
MISCELLANEOUS
COILS
RESISTORS
CAPACITORS TRANSISTORS
DIODES
CONNECTORS
