Philips VR550 - Page 42

1-10-27
1-10-28

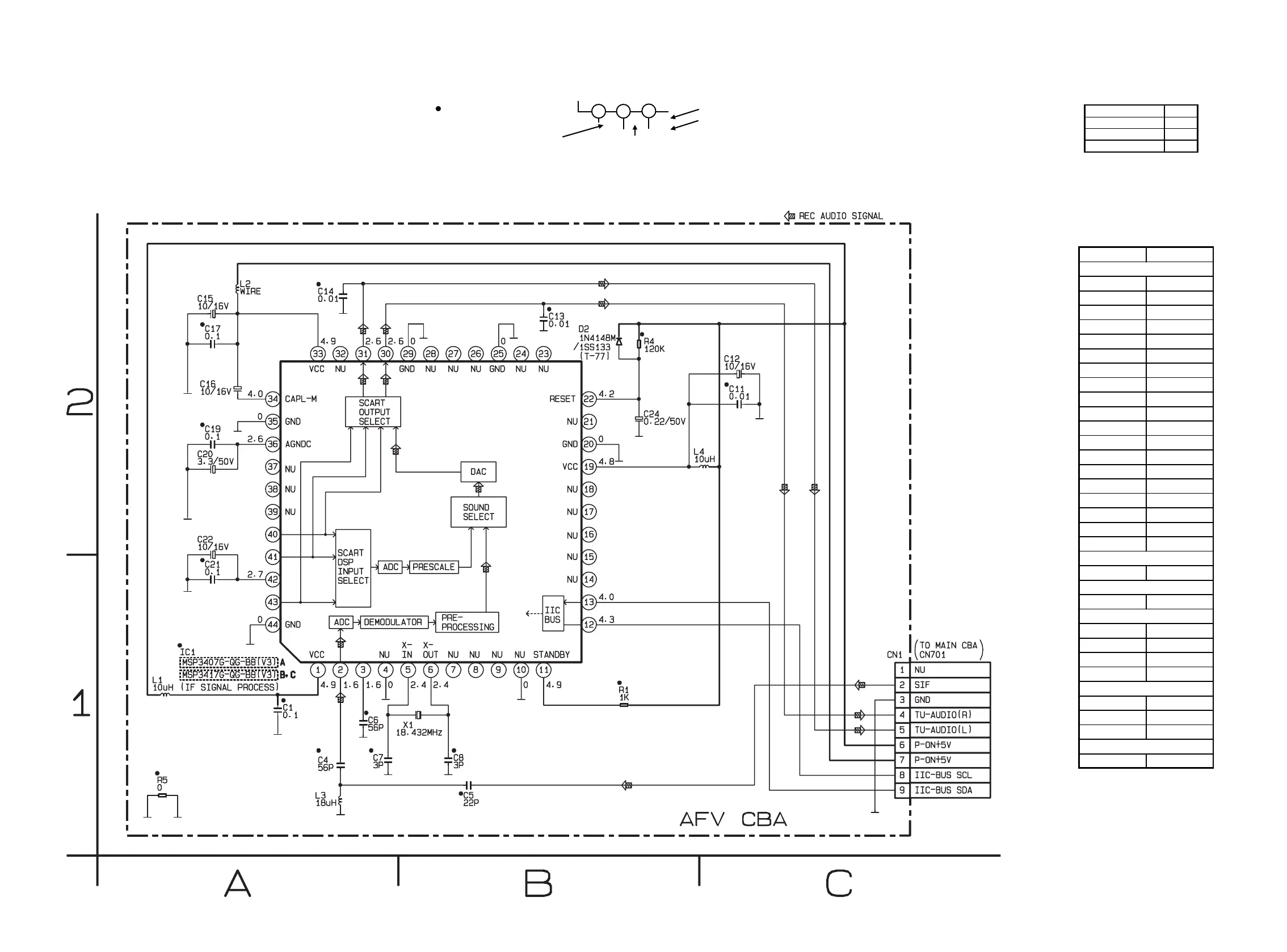

AFV Schematic Diagram
HG470SCAFV
THE SAME VOLTAGE FOR
BOTH PLAY & REC MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
MODE: SP/REC
PLAY MODE
REC MODE
1
2
3
5.0
5.0
(2.5)
~
“ “ = SMD
Comparison Chart of
Models and Marks
MODEL MARK
VR550/02 A
VR550/07 B
VR550/16 C
AFV Schematic Diagram
Parts Location Guide
Ref No. Position
C1 A-1
C4 A-1
C5 B-1
C6 A-1
C7 A-1
C8 B-1
C11 C-2
C12 C-2
C13 B-2
C14 A-2
C15 A-2
C16 A-2
C17 A-2
C19 A-2
C20 A-2
C21 A-1
C22 A-2
C24 B-2
CN1 C-1
D2 B-2
IC1 A-1
L1 A-1
L2 A-2
L3 A-1
L4 C-2
R1 B-1
R4 B-2
R5 A-1
X1 B-1
CRYSTAL OSCILLATOR
CAPACITORS
IC
COILS
DIODE
RESISTORS
