Philips VR550 - Page 43

1-10-29
1-10-30

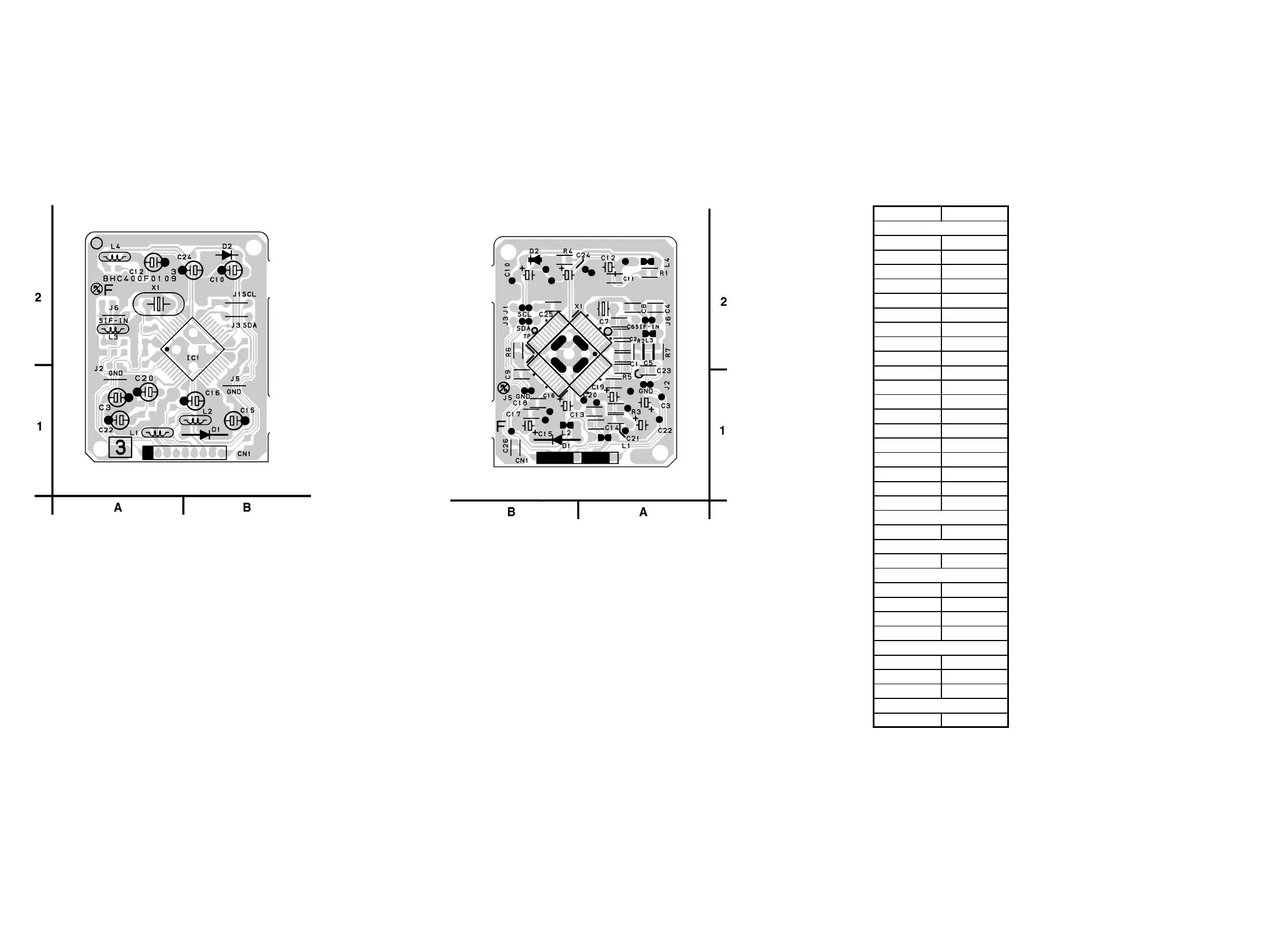

AFV CBA Top View
AFV CBA Bottom View
BHC400F01093
AFV CBA Parts Location Guide
Ref No. Position
C1 A-2
C4 A-2
C5 A-2
C6 A-2
C7 A-2
C8 A-2
C11 A-2
C12 A-2
C13 B-1
C14 A-1
C15 B-1
C16 B-1
C17 B-1
C19 A-1
C20 A-1
C21 A-1
C22 A-1
C24 B-2
CN1 B-1
D2 B-2
IC1 B-2
L1 A-1
L2 B-1
L3 A-2
L4 A-2
R1 A-2
R4 B-2
R5 A-1
X1 B-2
IC
COILS
CRYSTAL OSCILLATOR
RESISTORS
CAPACITORS
DIODE
