Remote Dispense (If Equipped)
Consideration should be given to location of the remote dispense module. Reference the diagram on
page 7. For example, the module can be mounted next to a sink so it would provide access to the sink
and adjacent countertop. The module can be mounted near the end of a countertop to provide access
to rolling carts for larger container fills as well as the countertop. Module should be mounted at a
height that provides access to the tallest container that will be used without blocking access to
cabinets.
For mounting the module, select a wall that is capable of supporting 20 lbs. The wall plate should be
mounted to a stud. Mounting directly to sheet rock is not recommended. If there is no stud at the
mounting location, mount proper backing such as a plywood sheet that is secured to studs before
mounting the plate to it.
Once a stud is located or support plate installed mark two holes on 5-13/16” centers and use a 3mm or
1/8” diameter drill to pre-drill holes to a depth of 2”. Use the two provided lag bolts to affix the plate.
While tightening the bolts ensure the mount is level.
10 feet of tubing is provided to connect the system and module. The system must located within this
distance bearing in mind that some slack should be allowed to provide access to the system for service.
Excess tubing can be coiled. 6 feet of drain tubing is also provided. Since the drain fitting is in the base
of the system, either access to a gravity fed floor drain or sump pump must be provided if the system is
installed below a sink. A 1-1/2” to 2” diameter hole must be provided where the umbilical containing
the water flow tubing and electrical connections will pass through a countertop.

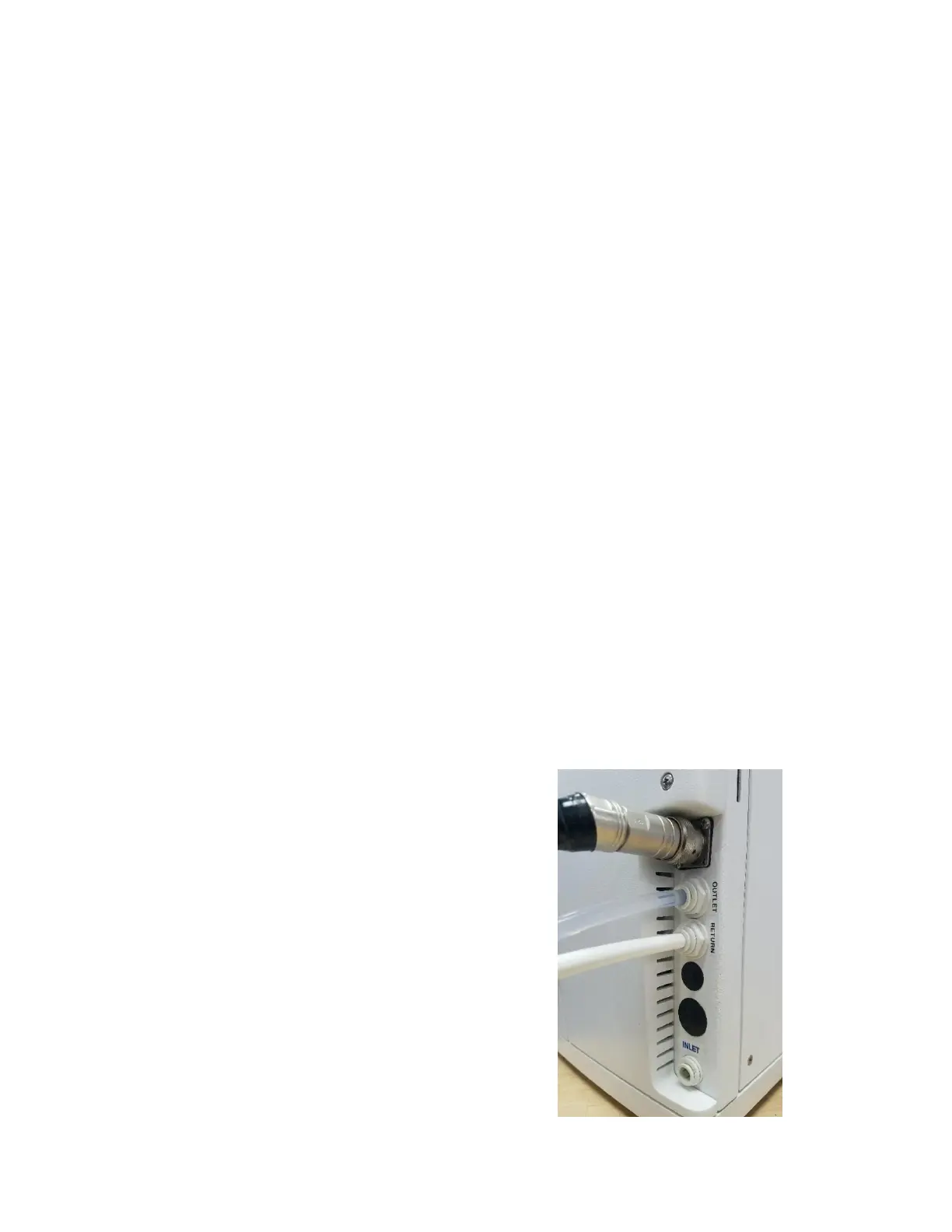

Remote dispense electrical connection: Rotate connector to align tabs on umbilical plug with slots on
Phoenix socket and then insert plug. Repeat with the outer locking sleeve. When slots and tabs are
aligned, push and turn to lock connector in place.
• Install upstream isolation valve in
feedwater line (recommended).
• Connect 3/8” OD white recirculation
return tubing from umbilical into
Return fitting.
• Connect 3/8” OD clear tubing from
umbilical into Outlet fitting.
• Make sure tubing is fully seated into
fittings.
