Optional (Depending on Model):
• UV Lamp (CITATION and GENOME)
• Dispensing Gun (PHA-DG)
• Remote dispense module and tubing (Models with –RMT-S Option)
• Wall mount bracket (PHA-WB)
System Wall Mounting: Requires PHA-WB Wall Mount Bracket
• Mount on a wall capable of supporting 50 lbs. Mounting directly to sheet rock is not
recommended.
• Mount bracket to wall. Holes in bracket are provided at 8”, 12” and 16” centers for
wall studs. If wall does not have studs mount proper backing, such as a plywood sheet
to the wall before mounting the bracket to it.

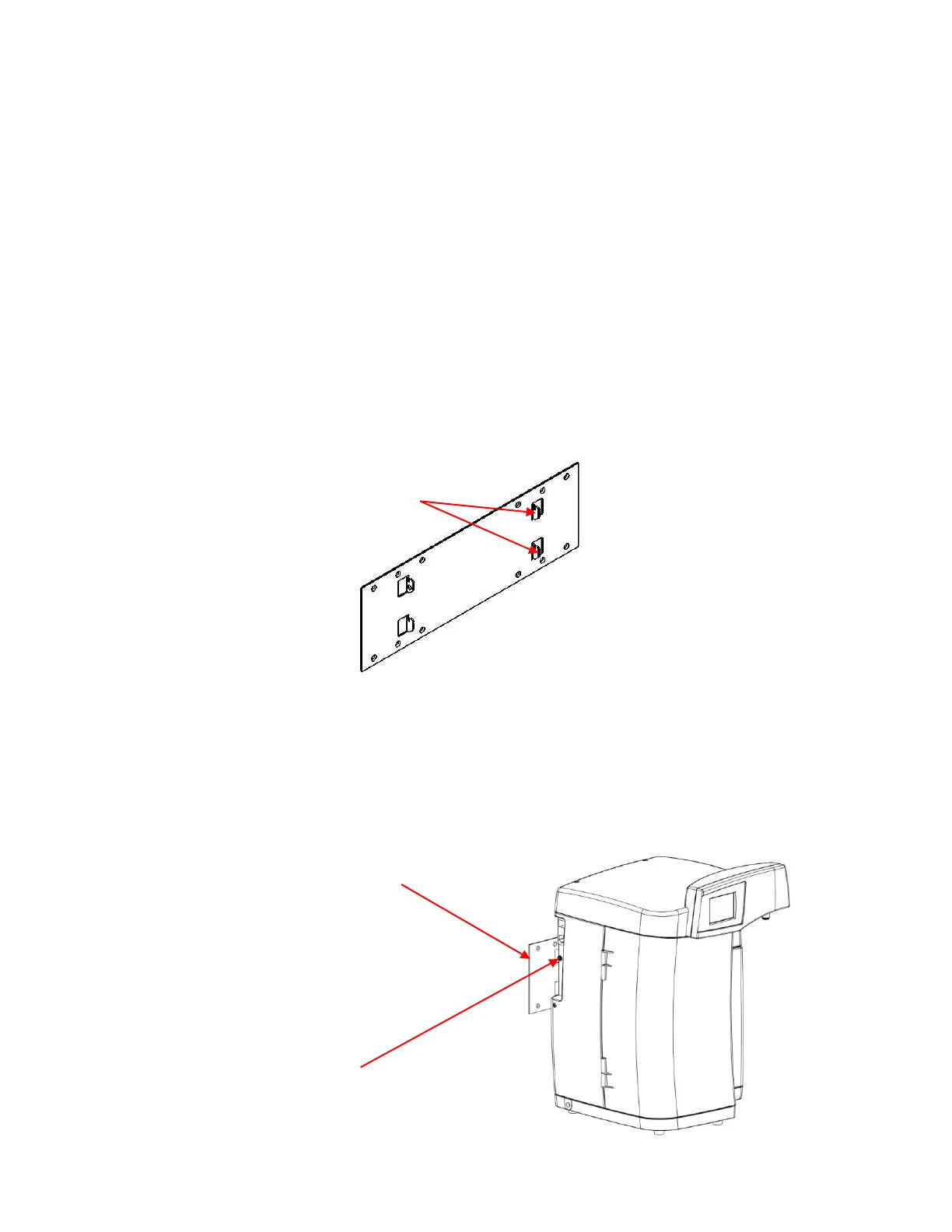

• Mount bracket with small slots in tabs pointing up.
• Align slots in system back plate with tabs on mounting bracket. Insert tabs into slots
and slowly lower system. Ensure all tabs are fully engaged and base of system is
parallel to floor.
• To lock PHOENIX system to the bracket, insert rubber bushing with screw and washer
(provided) into frame as shown. Tighten screw to lock wall bracket to frame.
