Phoenix Advanced pressure monitor II User Manual

Ancillary Product Specifications
Model 264 Pressure Transducer
27
MKT-0262 MPC-1748 Rev 02/13
APM2 Rough-In Installation Guide

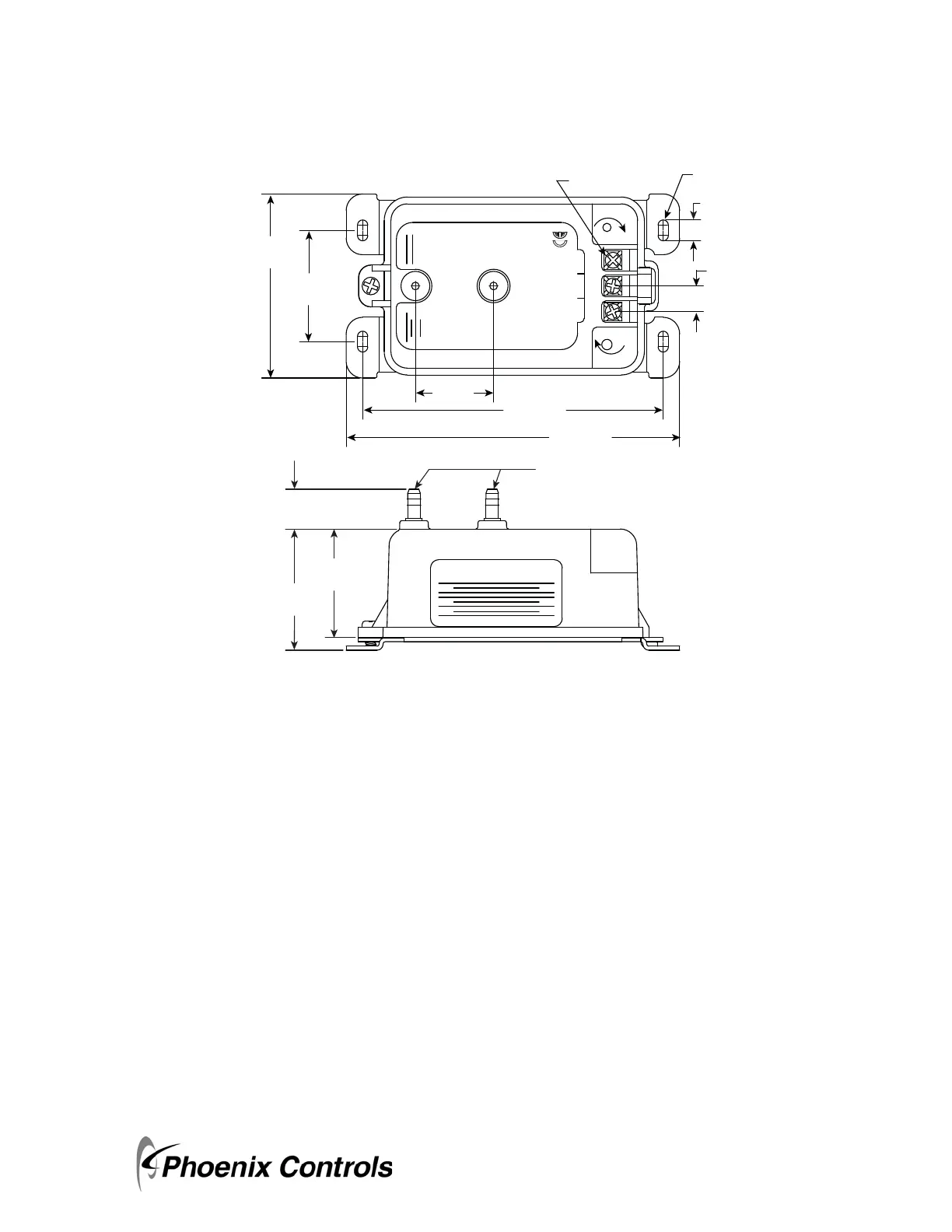

Figure 4-1. Model 264 Pressure Transducer
+
SPAN
+
ZERO
INSTALLATION WARNING!
2.750 in.
(69.85 mm)
5.062 in.
(128.57 mm)
4.562 in.
(115.87 mm)
R0.078 in.
(R1.98 mm)
1.624 in.
(41.25 mm)
0.594 in.
(15.08 mm)
1.811 in.
(45.99 mm)
1.187 in.
(30.15 mm)
TYP.
TYP.
TYP.
1.662 in.
(42.21 mm)
0.312 in.
(7.92 mm)
0.385 in.
(9.78 mm)
TYP.
LOW
Model 264
HIGH
Serial Number:
Part Number:
Range:
Excitation:
Output:
Date Code: 3599
0-5 VDC 9-30 Vdc 0-5.0" WC 1015990 2641005WD2DT1C
COM
EXC OUT
PRESSURE PORTS
TOP VIEW
SIDE VIEW
#6 SCREW
WIRE CLAMP
3 PLACES
