Ancillary Product Specifications
Remote Annunciator
31
MKT-0262 MPC-1748 Rev 02/13
APM2 Rough-In Installation Guide
4.3 Remote Annunciator
Table 3. Remote Annunciator

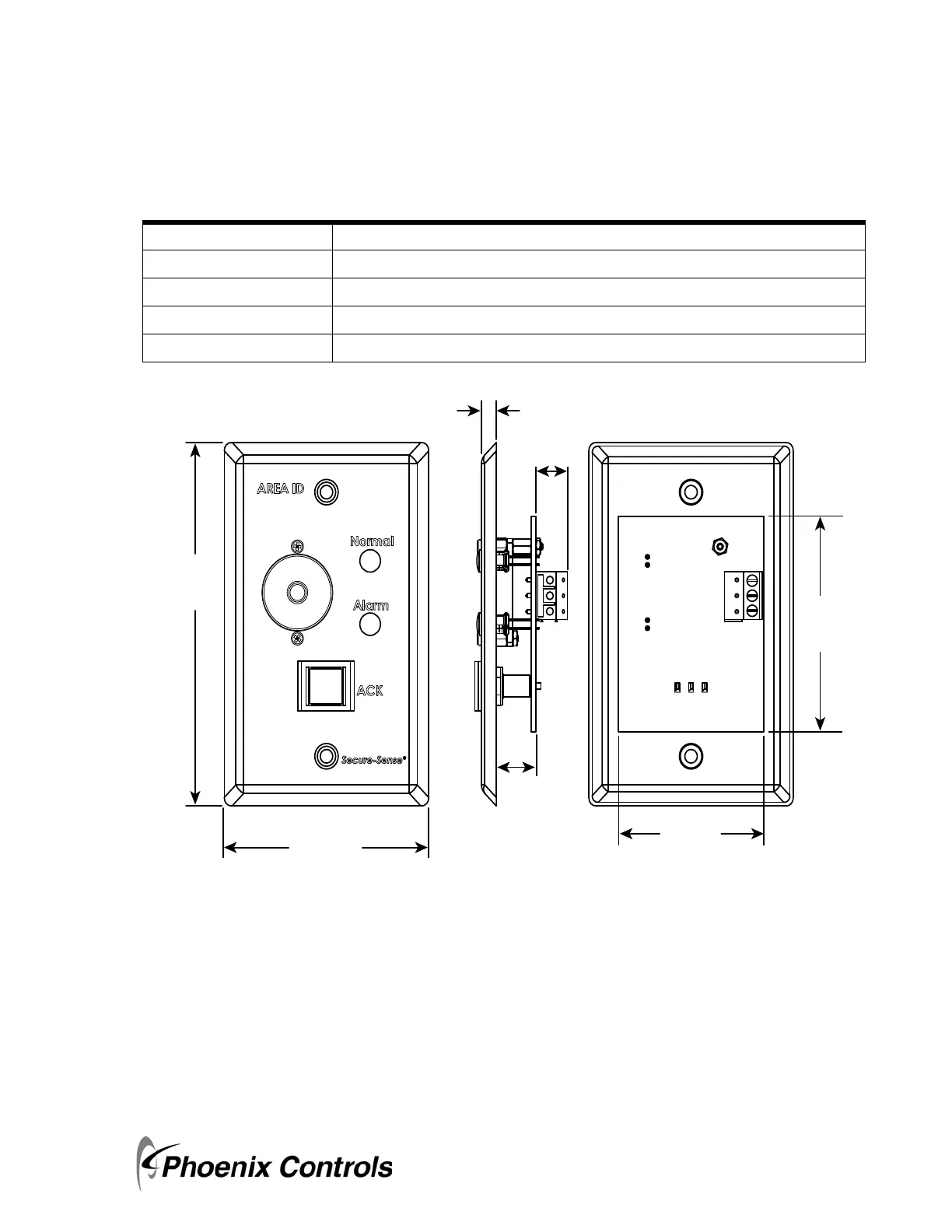

Figure 4-3. Remote Annunciator
Enclosure 2.75" W x 4.5" H stainless steel wall cover plate
External Supply 15 Vdc, 50 mA maximum
Display Panel Green and red LED indicators and Acknowledge (ACK) switch
Audible Alarm 0-85 dBA measured 4" from annunciator
Acknowledge Switch Momentarily turns off audible alarm
4.52 in.
(114.78 mm)
.20 in.
(5.08 mm)
2.77 in.
(70.23 mm)
.74 in.
(18.69 mm)
.43 in.
(10.80 mm)
2.68 in.
(68 mm)
1.97 in.
(50 mm)
