Phoenix Advanced pressure monitor II User Manual

30
MKT-0262 MPC-1748 Rev 02/13
Ancillary Product Specifications
Model 267 Pressure Transducer

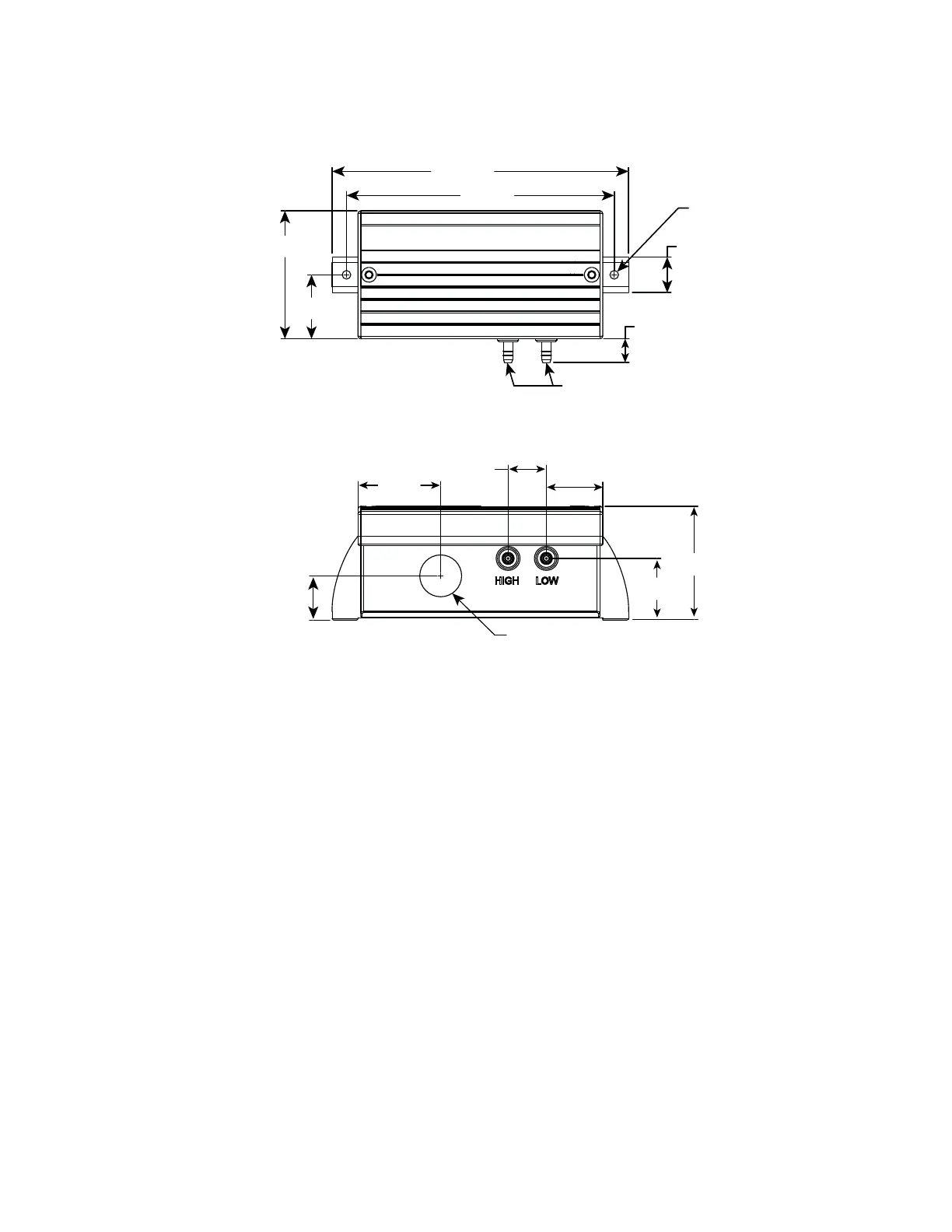

Figure 4-2. Model 267 Pressure Transducer
0.80 in.
(20 mm)
1.18 in.
(30 mm)
1.73 in.
(44 mm)
5.60 in.
(142 mm)
6.10 in.
(155 mm)
0.75 in.
(19 mm)
2.36 in.
(60 mm)
1.29 in.
(33 mm)
0.50 in.
(13 mm)
3/16" O.D. PRESSURE FITTING
FOR 1/4" PUSH-ON TUBING
(Ø4.5 mm)
0.18 in.
0.93 in.
(24 mm)
2.68 in.
(68 mm)
1.34 in.
(34 mm)
Ø7/8 in.
(Ø22 mm)
