System Description
NOTE
MMC_Update cannot determine the exact type of controller connected. If
Mercury™ Step firmware is loaded in a Mercury™ DC motor version or vice-
versa, the unit will not start. In such a case, try rerunning MMC_update with
the correct firmware type.

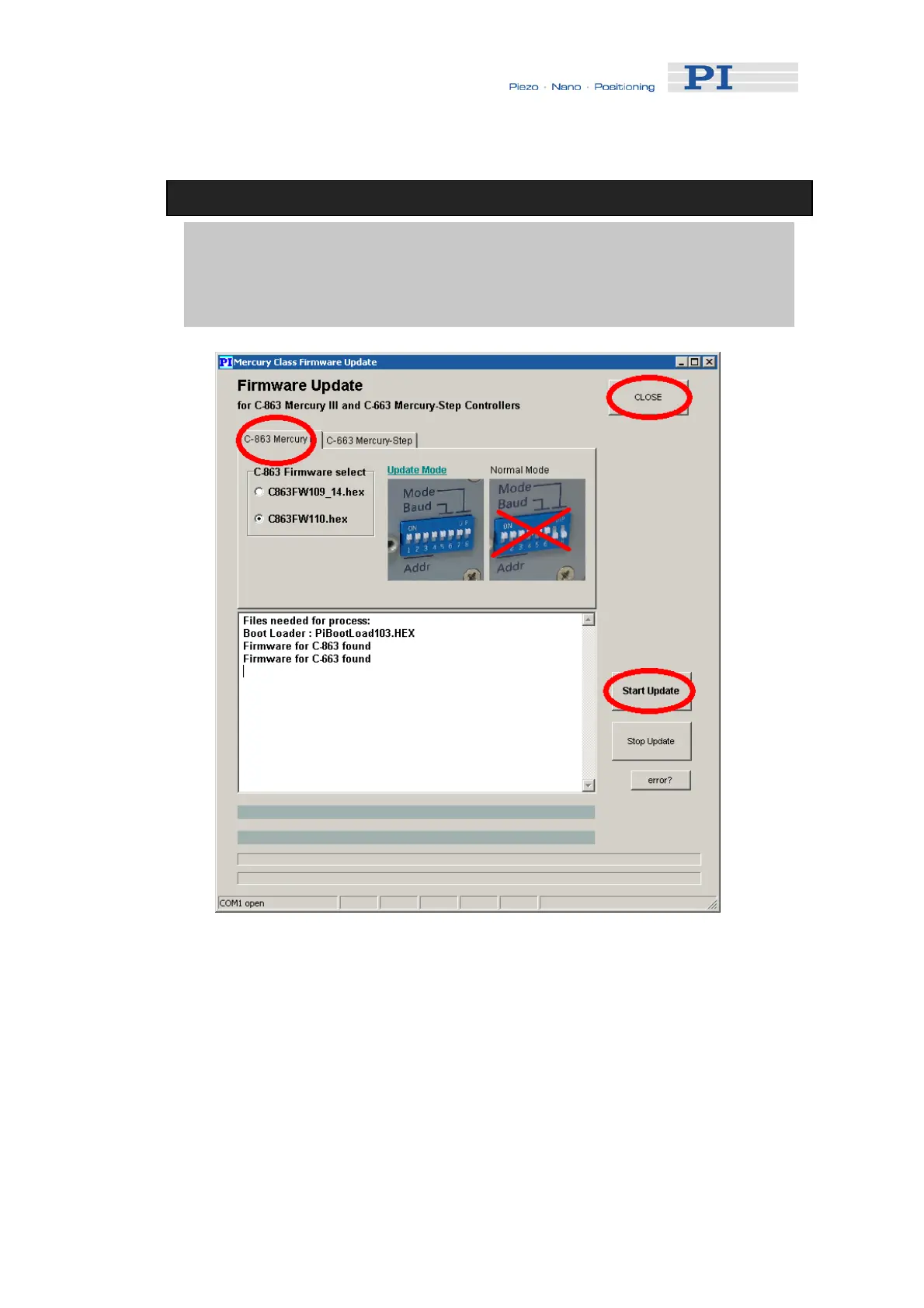

Fig. 10: MMC_update main screen; with C-863 tab and Start Update button
circled
9. Make sure the C-863 tab card is on top.
10. Make sure the proper firmware file is selected in the C-863 Firmware select
pane. There is a radio button there for each file in the same directory as the
MMC_update executable that begins with “C663” and has the "hex"
extension.
www.pi.ws C-863 MS173E Release 1.2.7 Page 25
