Pike Evolution T5 User Manual

8
Setting the master
This section covers the following for the master controller:
• Switchingon-below.
• Settingvehiclephases-opposite.
• Settingpedestriancrossings-page 10.
• Startingoperation-page 11.
3 The text display will show the previously
used mode, such as: Ready P1S
Previous settings will also be shown on
the various panel indicators.
Next
• Iftheprevioussetupisappropriate,
press SELECT and go to page 11.
• Ifyouneedtochangefromslave
to master mode, press MASTER/
SLAVE until the MASTER indicator
is lit. Then continue with vehicle
and/or pedestrian settings (on
pages 9 and 10, respectively).
• Ifyouneedtoaltervehicle settings, go to step 4 opposite.
• Ifyouneedtoalterpedestrian settings, go to step 4 on
page 10.
2 Press SELECT to fix the chosen radio
channel. The display will now show
Radio Tx Power 3. In normal conditions,
press SELECT to choose this option.
Note: If you are creating a dedicated pedestrian crossing
(i.e. a single vehicle phase that serves only the pedestrian
crossing), please use the Pedestrian only method of setup
shown on page 12.
...Setting the master (cont.) - Switching on

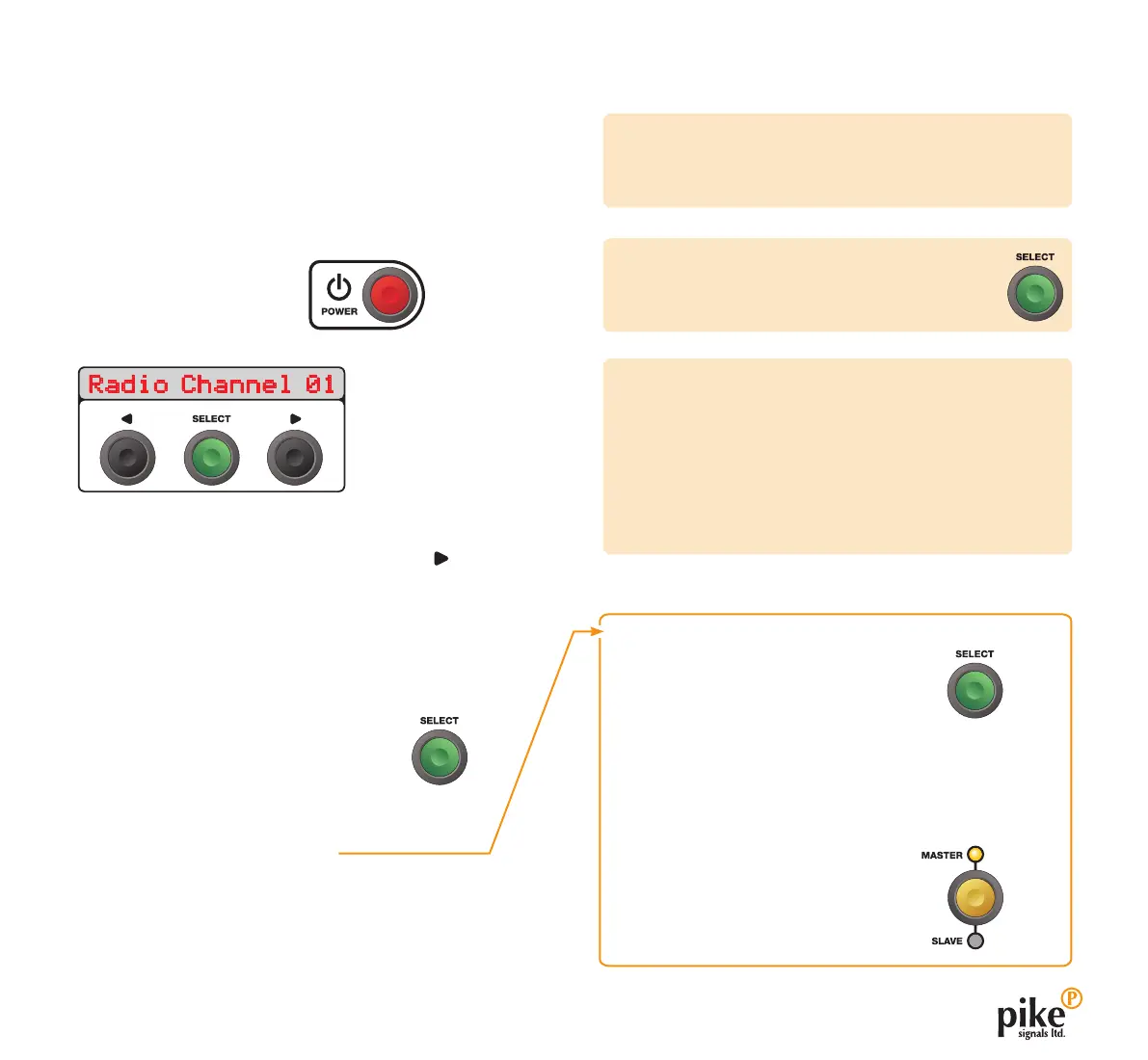

1 Press POWER to switch on.
The text display will briefly show PIKE SIGNALS and then*:
*
If a tactile indicator on a pedestrian panel is
NOT sensed by the controller during startup,
the display will first show NO TACTILE. Press
SELECT to acknowledge.
SCAN option
On MULTI controllers at switch on, after scrolling through
the first 17 radio channel options, if the controller is in
Master mode, you will see a SCAN option. If you press
SELECT to choose this option, the controller will scan the
surrounding area and show the first available clear radio
channel (takes approx. 20 seconds). You can either press
SELECT to choose that channel or manually choose a
different one. See page 13 for details.
• Tochooseradio channel 01 (the usual choice), go
straight to step 2 below.
• Tochooseadifferentradio channel, press .
The text display will advance through the available
channels (either 1 and 2 for a standard unit or 01 to 17 for
a MULTI controller). After 17, the display may show SCAN
(see the SCAN option box shown right) and after that it will
show CABLE, which is a function reserved for future use -
and then it will roll over to channel 01. See page 13.
Note: These last two page refs are not
automatic.
