Pike Evolution T5 User Manual

10
...Setting the master (cont.) - Pedestrian
4 Where one or more pedestrian crossings
are required, on the master controller press
CROSSINGS/DEMAND until the indicator for
the appropriate number of crossings is lit
(1-4). When 4 is lit, a further press of
CROSSINGS/DEMAND will switch off
pedestrian mode.

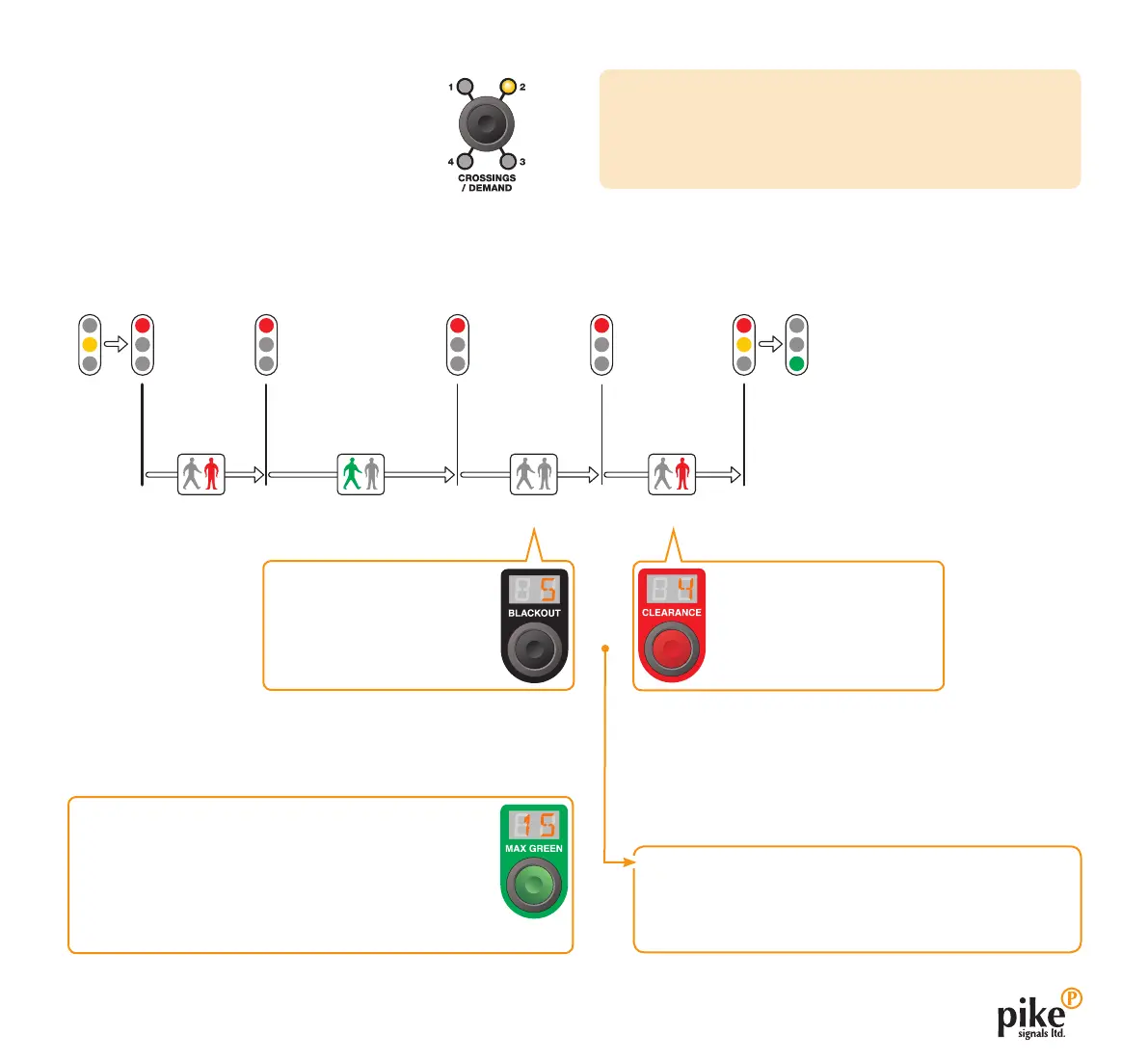

3 seconds
safety period
7 seconds
standard crossing
period
Pedestrian
blackout
period
Pedestrian
clearance
period
(fixed) (fixed)
(variable) (variable)
5 Use the timing buttons within the PEDESTRIAN CROSSING section to set the appropriate
BLACKOUT and CLEARANCE times as follows:
Choose a BLACKOUT
period (in seconds) that is
sufficient to allow an able
bodied pedestrian to walk
the whole of the crossing.
The CLEARANCE setting
allows you to determine
an additional safety factor
(4 seconds is the usual
setting).
Next
• Ifyouneedtoaltervehiclesettings,gotopage 9.
• Tostartoperation,seeright
Note: The timings that you choose in this section will apply
to all pedestrian crossings associated with this controller.
Note: To create a dedicated pedestrian crossing (i.e. a
single vehicle phase serving the pedestrian crossing only),
pleaseusethe‘Pedestrianonly’setupshownon page 12.
The green crossing time is fixed at seven seconds
for almost all installations. However, there are
special circumstances where this time may need
to be adjusted. The pedestrian MAX GREEN control
allows this to be done on Evo control panels that
have been suitably adjusted. This feature is not
available on standard Evo controllers.
