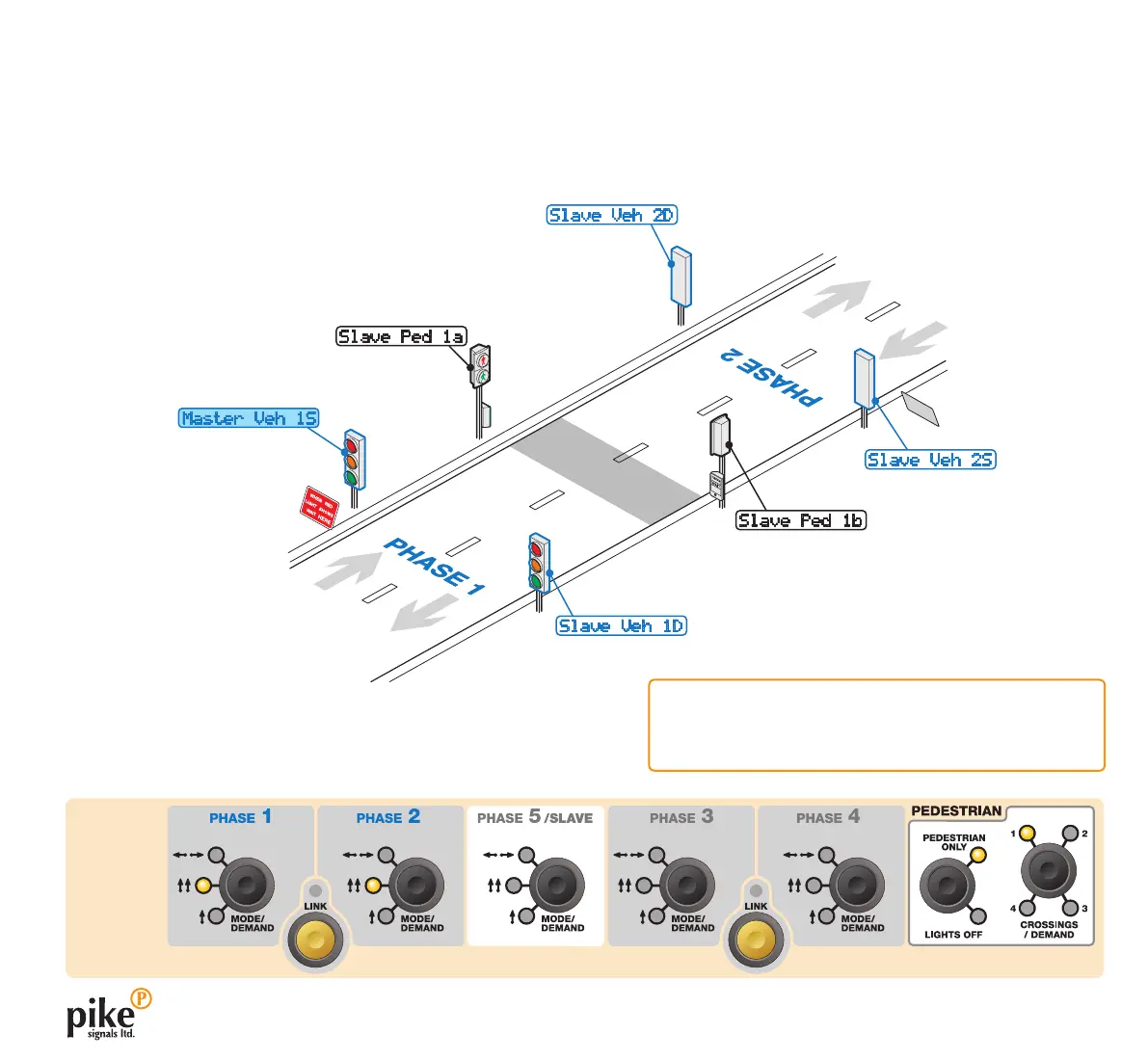

Example 3: Standalone pedestrian crossing with two vehicle heads per approach
2 vehicle phases, 2 approaches, 2 heads per approach with single pedestrian crossing
This example shows a pedestrian crossing that might be used on a faster road with extra vehicle signals for
added visibility and uses the PEDESTRIAN ONLY mode to use the most appropriate settings.
Note: When the PEDESTRIAN ONLY mode is invoked, all active phases operate as one.
Note: All junction layout examples given in this document
are meant for rough guidance only. Please refer to
Highways Agency specifications for actual signal, sign
and cone placements for any particular junction types.
