35
Example 9:
Fast carria
geway with side r
oad

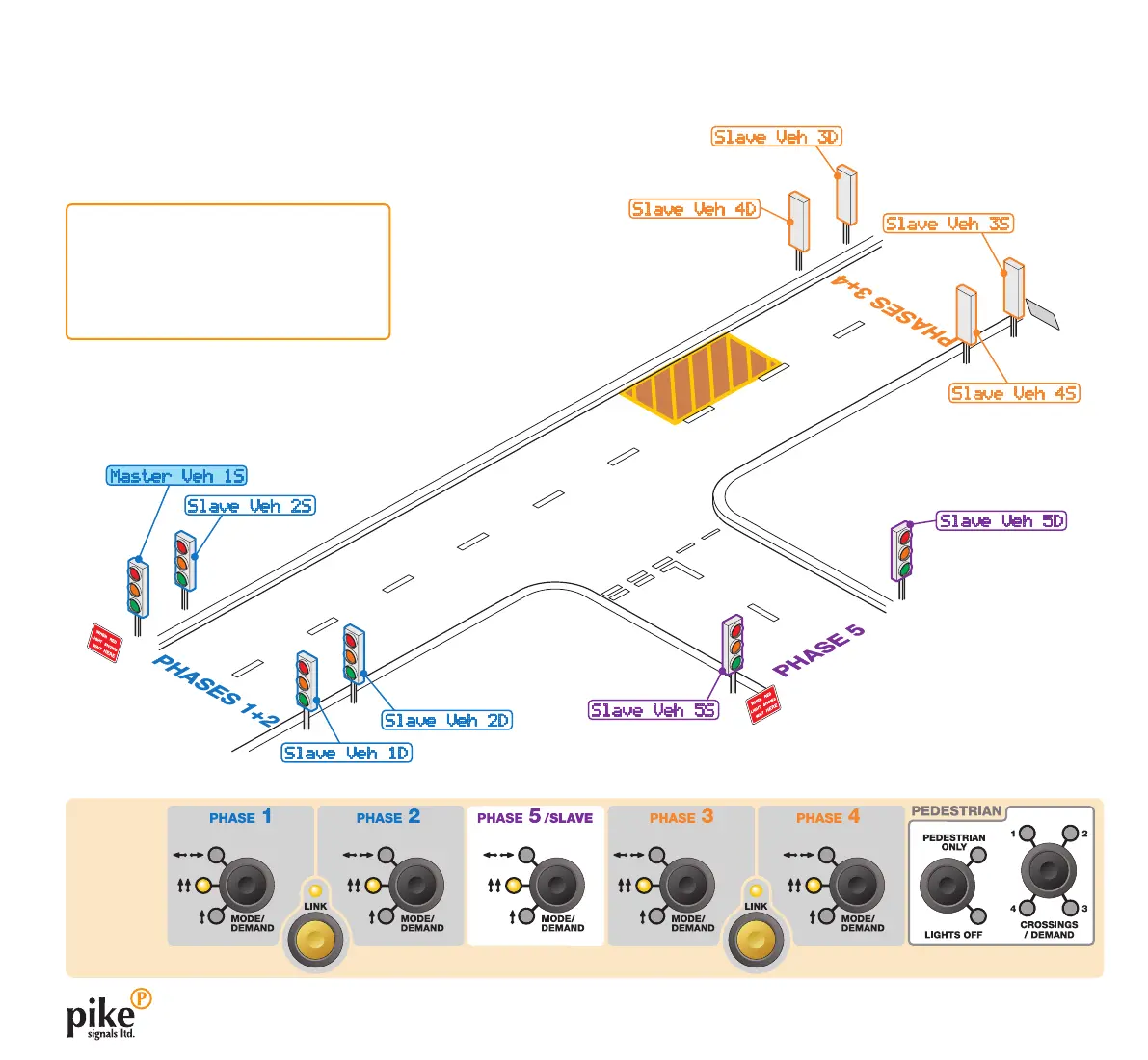

This example shows the control of shuttle working on a fast carriageway with a side road.
Master
phase
modes
Note: All junction layout examples given
in this document are meant for rough
guidance only. Please refer to Highways
Agency specifications for actual signal,
sign and cone placements for any
particular junction types.
36
38
Table of Contents
Default Chapter
3
Table of Contents
3
Introduction
4
Welcome
4
Evo Panel Layouts
5
Installation
7
Setting up the Signal Heads
7
Preparing for Operation
8
Setting Slaves
8
Vehicle
9
Pedestrian
9
Setting the Master
10
Switching on
10
Vehicle Phases
11
Pedestrian
12
Starting Operation
13
Performing a Test Start
13
Pedestrian Only Installations
14
Linking Phases
14
Radio Channels
15
When Mixing Multi-Channel and Standard Controllers
15
Using the Scan Option
15
Discovering the Radio Channel During Operation
15
Transmitter Power
16
Reducing Transmitter Power to Avoid Interference
16
Operation
17
Making Adjustments
17
Operation Modes
18
Communication Failures
18
Calling 'Hold All Red
19
Checking Battery Charge Levels
20
Resetting the System
20
Decommissioning the System
21
Incidents During Operation
22
Error Indications
23
Troubleshooting
25
Warranty and Environmental Information
26
Disclaimers
26
End of Life Disposal
27
Appendix 1: Phase Set up Examples
28
Basic Shuttle Working
29
Standalone Pedestrian Crossing
30
Standalone Pedestrian Crossing with Two Vehicle Heads Per Approach
31
Shuttle Working Plus Pedestrian
32
Pedestrian Crossings
33
Pedestrian Crossings
34
Four-Way Crossroad Plus Pedestrian Crossings
35
Five-Way Staggered Junction Plus Pedestrian Crossings
36
Fast Carriageway with Side Road
37
4
