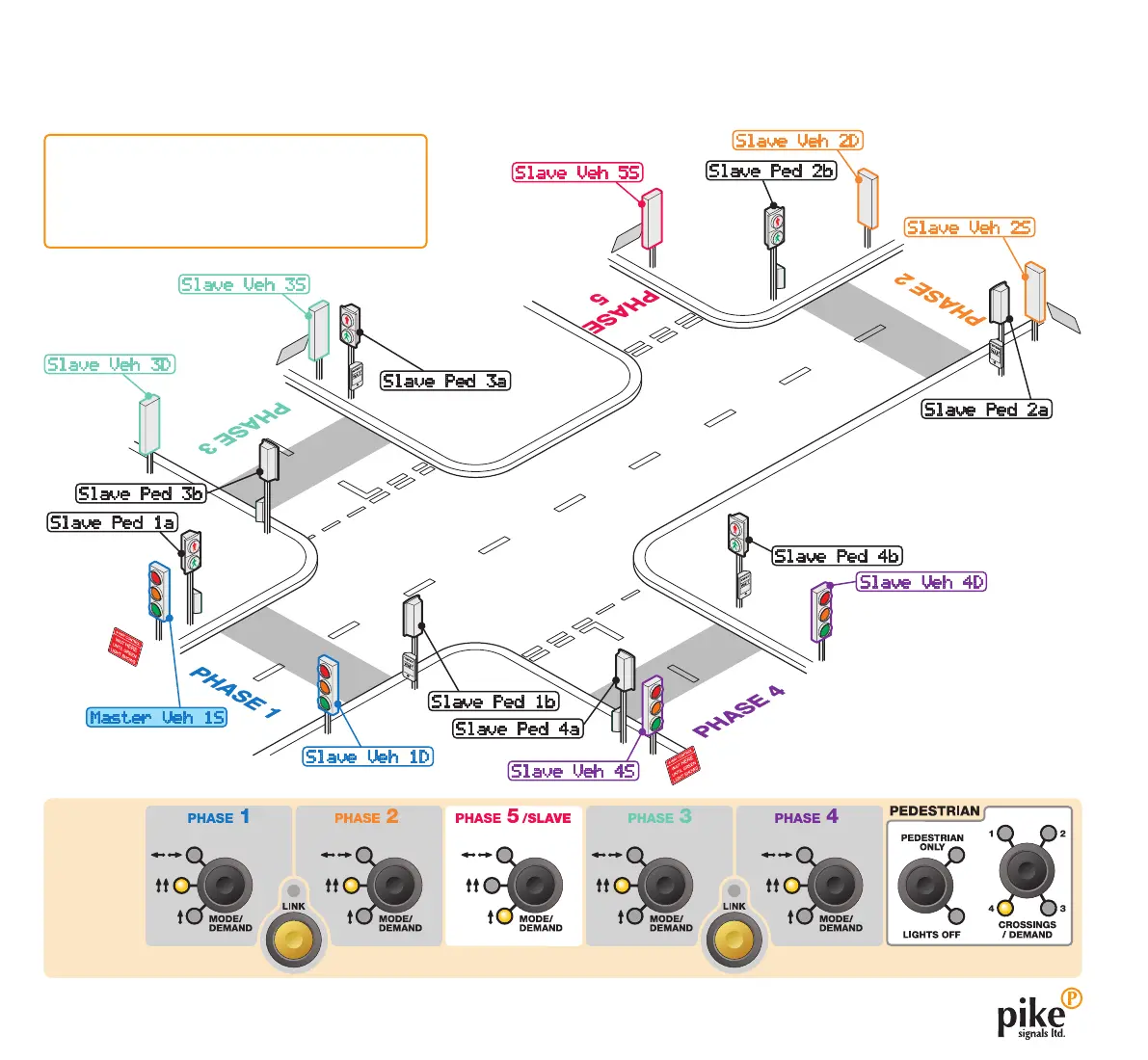

Example 8: Five-way staggered junction plus pedestrian crossings

This example shows a major junction controlled using all ﬁve vehicle phases

as well as four pedestrian crossings.

Master

phase

modes

Note: All junction layout examples given in this

document are meant for rough guidance only.

Please refer to Highways Agency speciﬁcations

for actual signal, sign and cone placements for

any particular junction types.
