22
Text display

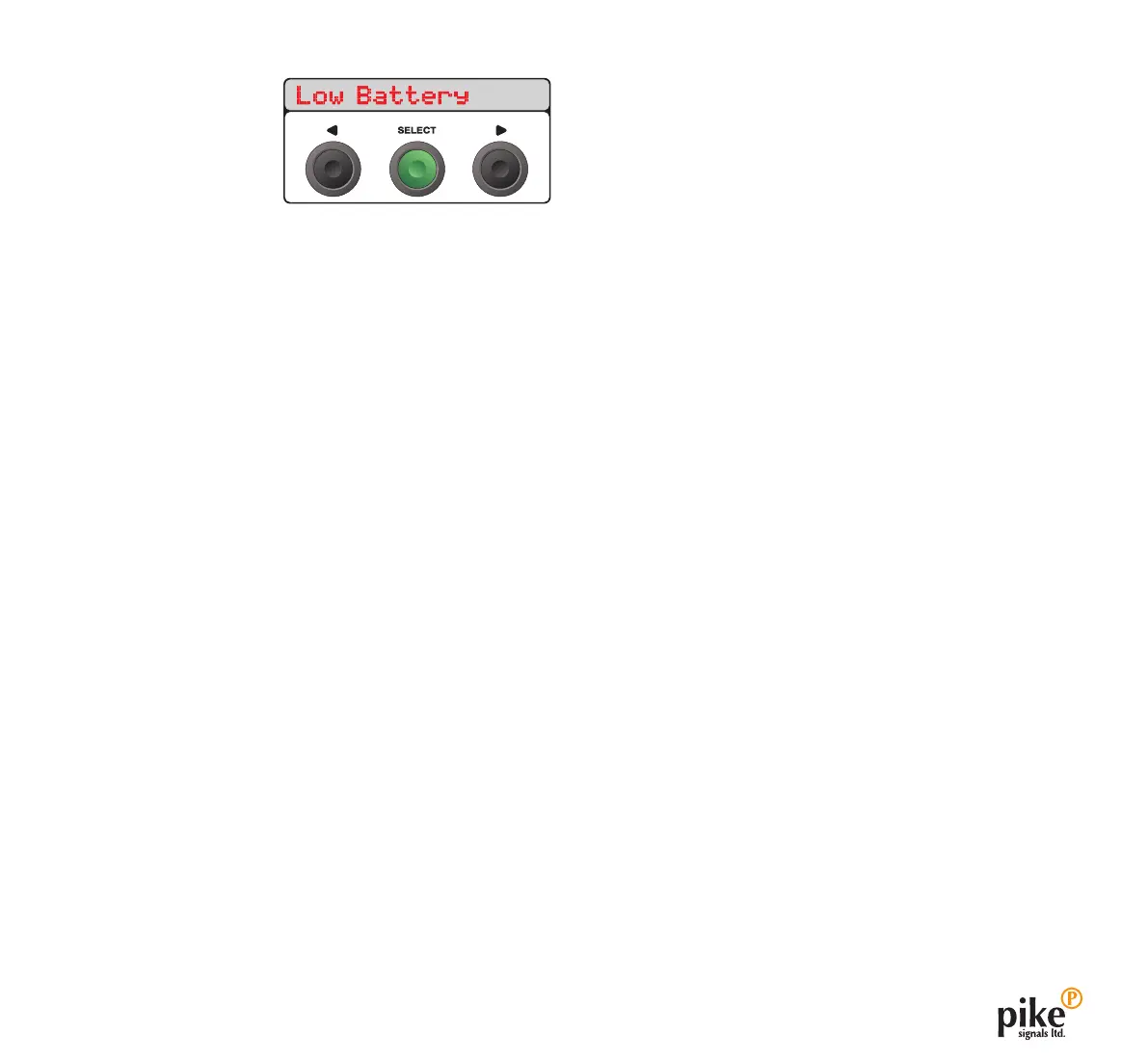

The text display at the
bottom of the control panel
shows a continual count
of the elapsed time for the
current signal of the active
phase. In error situations,
this display is used to
provide alphanumeric status codes, as follows:
Low Battery Battery voltage becoming too low.
Batt Fail Insufficient battery voltage to continue.
Red Fault The red vehicle aspect failed to turn on or off.
Amber Fault The amber vehicle aspect failed to turn on or
off.
Green Fault The green vehicle aspect failed to turn on or
off.
Red Man Fault The red man pedestrian aspect failed to turn
on or off.
Grn Man Fault The green man pedestrian aspect failed to
turn on or off.
Wait Fault The wait aspect failed to turn on or off.
Tactile Fault The tactile aspect failed to turn off.
Error 010 Invalid configuration data.
Error 011 Failed to communicate with configuration
plug.
Error 012 Incompatible software installed.
Error 013 Controller started following a watchdog reset.
Coms Recovry nnn Recovering from comms loss (10 minute period).
Comms Fail Sustained communications fault.
Config Error 01 Insufficient battery voltage.
Config Error 02 Duplicate serial number.
Config Error 03 Invalid operational mode.
Config Error 04 Language mismatch.
Config Error 05 Software mismatch.
Config Error 06 Nearside/farside mismatch.
Config Error 07 Configuration incompatible with XL2 slaves.
Config Error 10 Master has unconfigured vehicle head.
Config Error 11 Master has unconfigured pedestrian head.
Config Error 12 A slave has unconfigured pedestrian head.
Config Error 13 A slave has unconfigured vehicle head.
Config Error 20 No vehicle phases configured.
Config Error 21 No pedestrian phases configured.
Config Error 30 Awaiting confirmation of radio channel.
Config Error 31 Awaiting confirmation of authority mode.
Config Error 32 Awaiting confirmation of slave identity.
Config Error 40 No head detected.
Config Error 50 Engineers terminal interlocking active.
Config Error 99 Internal error.
Veh Fail nn Could not find a slave for phase nn.
Ped Fail nn Could not find a slave for pedestrian phase
nn.
Batt Fail nn Critical battery voltage on slave nn.
Lamp Fault The amber or green vehicle aspect failed to
turn on or off.
Stopped System has stopped due to CAT1 fault.
Green Conflict Green or green man aspect was on
unexpectedly.
Error 020 Local monitor fault (whilst lamp was on).
Error 021 Local monitor fault (whilst lamp was off).
Error 022 Local lamp conflict detected on disused
head.
Error 023 Local lamp conflict detected by CPLD.
Error 024 Local CPLD watchdog fault.
Error 025 Local front panel fault.
Error 030 Master detected invalid broadcast.
Error 031 Master detected aspects are not set as
requested.
Error 032 Master detected invalid response from slave.
Error 040 Master has been notified of CAT1 fault on
slave.
Error 041 Master has been notified of invalid broadcast
on slave.
