Project configuration
Operating Manual PSEN sc B 5 Series
1004508-EN-02
25
Allowance Z
R
with distances below the recommended minimum distances to intense
light sources or reflective surfaces
If the recommended distances cannot be met, the allowance Z
R
must be considered when
calculating the safety distance [ 18].

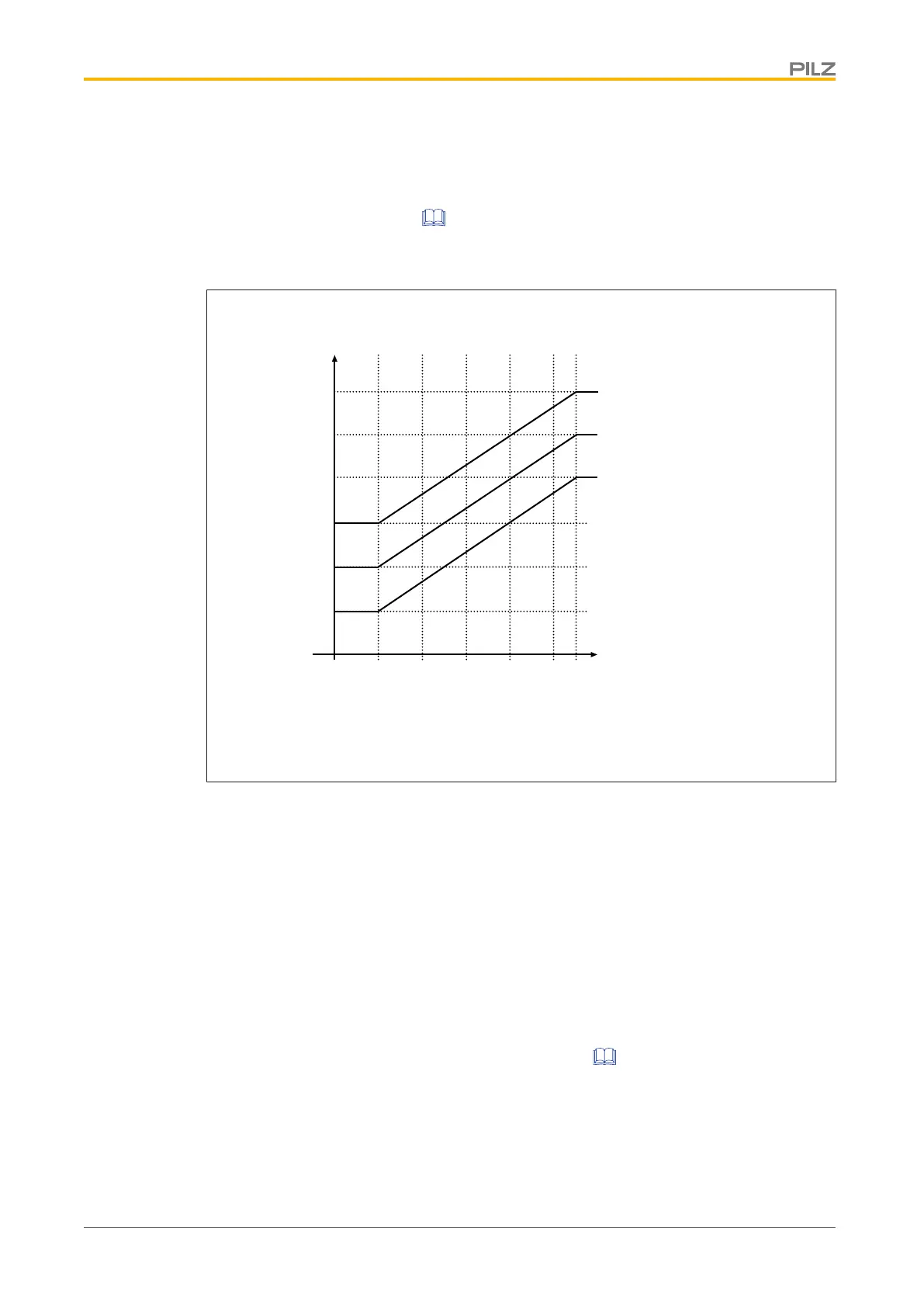

The value for the allowance Z
R
depends on the selected level of the dust filter and on the
determined safety distance without this allowance.
1 2 3 4 5 5,5
50
100
150
200
250
300
[1]
[2]
[3]
Allowance Z
in mm
Safety distance
(K*T)+C+Z
without Z in m
R
T
R
R
Legend
[1] Low level
[2] Medium level
[3] High level
5.7 Distance from walls
The edges of the safety zone must have a distance of 40 mm to walls or fixed objects on all
sides.
With this value, the function of the safety laser scanner is ensured. Depending on the re-
flective conditions of the walls or objects, higher allowances may be necessary (see
Dis-
tance to intense light sources and to reflective surfaces [ 24]).
5.8 Planning of safety and warning zones and zone sets
} Specify the location and the size of the safety zone and the warning zone in accord-
ance with the safety assessment.
} Specify in what situations the switching operation of the zone sets are to take place.
