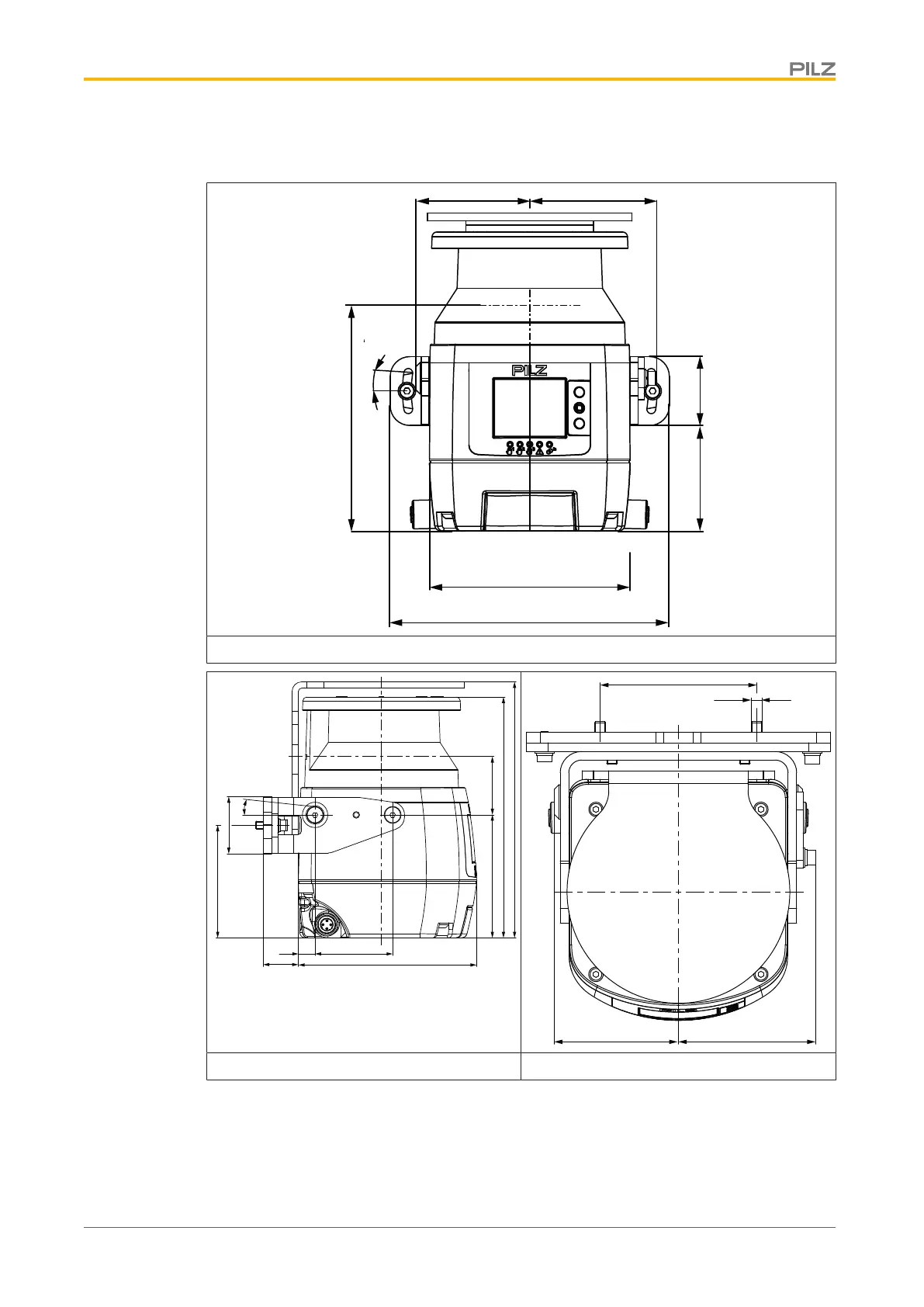

Dimensions
Operating Manual PSEN sc B 5 Series
1004508-EN-02
64
12 Dimensions
102
142
58 64
3553,6
114,6
+/- 8,5°
Front view
36
161,6
152
112,522
+/-6°
71,1
10,5
49
3777,6
73
58 64
M5
Side view Plan view
