Pilz PSS Series Hardware Manual

5-3PSS(1) ControlNet Adapter - Hardware Manual
INFORMATION
More detailed information on the topology conditions can be found in the
ControlNet International Specification (from Version 2.0, 03/1998).

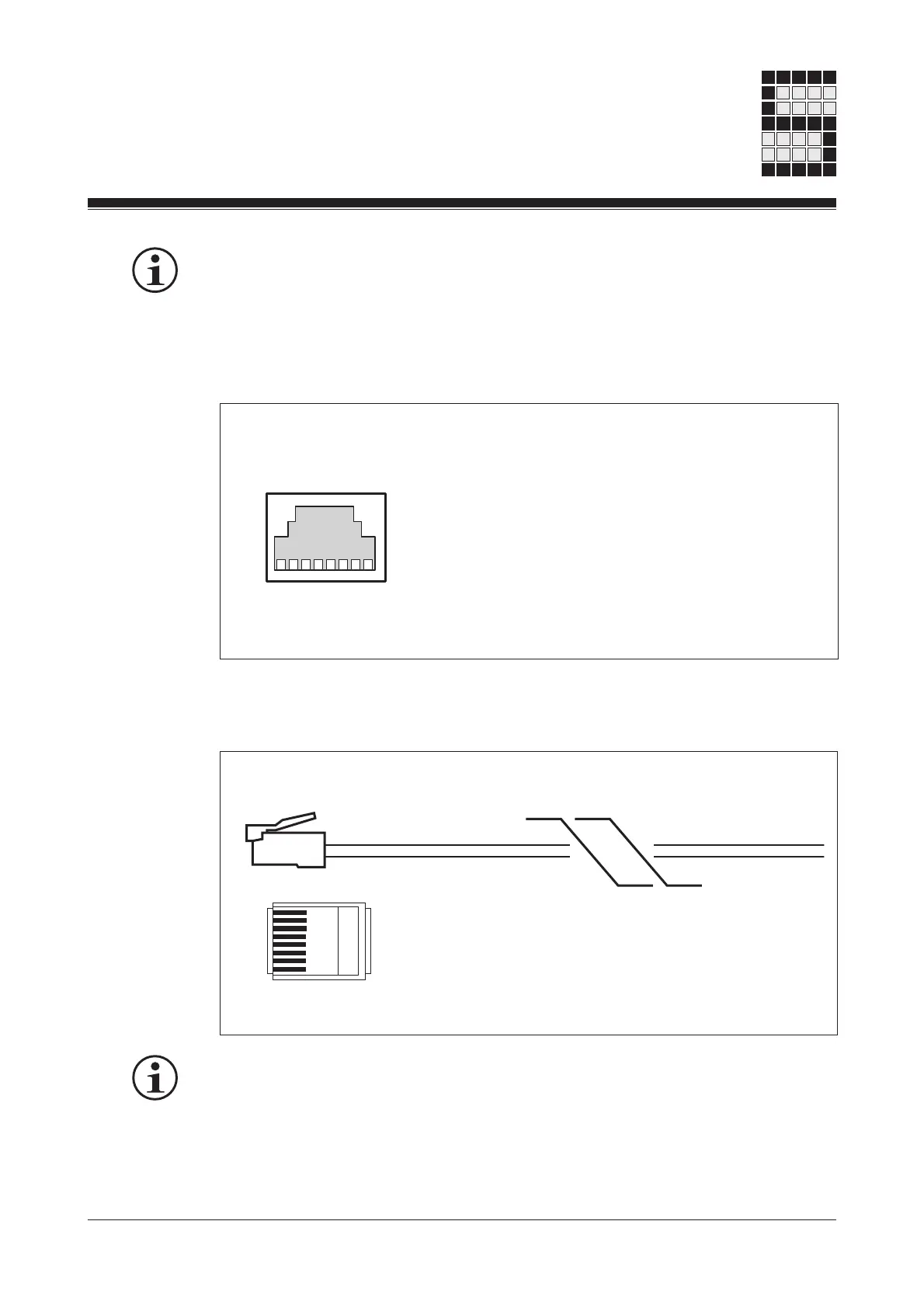

Network Access Port
Connection cable for the Network Access Port
INFORMATION
Only use screened cables for the NAP cable. The connection cable must
meet the requirements of the ControlNet International Specification (from
Version 2.0, 03/1998).
Western plug connector (RJ45)
8-pin
Fig. 5-4: Layout of the western plug connector (View from below)
8
1
Fig. 5-3: Socket for western plug connector (top view)
1: GND REF
2: N.C.
3: Tx_H
4: Tx_L
5: Rx_L
6: Rx_H
7: N.C.
8: GND REF
Socket for western plug connector
(RJ45)
8-pin
81
N.C. = No connection

Pilz PSS Series Specifications

General

Category	Safety Equipment
Manufacturer	Pilz
Safety Standards	EN ISO 13849-1, IEC 61508, IEC 62061
Series	PSS
Safety Integrity Level	SIL 3
Communication Interfaces	Ethernet, PROFIBUS, PROFINET
Operating Voltage	24 V DC
Operating Temperature	0°C to +55°C (typical), others depending on model
Storage Temperature	-20°C to +70°C (typical), others depending on model
Protection Class	IP20
Application	Industrial safety applications
